| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0805L150/12SLYRLOW RHO SMD |
2,676 | 2.19 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch® Low Rho | Active | Polymeric | 12V | 50 A | 1.5 A | 3 A | 500 ms | 7 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.030 (0.75mm) |
|
RUEF700KPTC RESET FUSE 30V 7A RADIAL |
250 | 0.93 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 7 A | 14 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.752 L x 0.118 W (19.10mm x 3.00mm) | 1.091 (27.70mm) | - |
|
|
1206L700SLPRLOW RHO SMD |
2,245 | 2.19 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch® 1206L | Active | Polymeric | 6V | 50 A | 7 A | 14 A | 2 s | 1 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.055 (1.40mm) |
|
|
RUEF800KPTC RESET FUSE 30V 8A RADIAL |
2,821 | 0.96 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 8 A | 16 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.850 L x 0.118 W (21.60mm x 3.00mm) | 1.189 (30.20mm) | - |
|

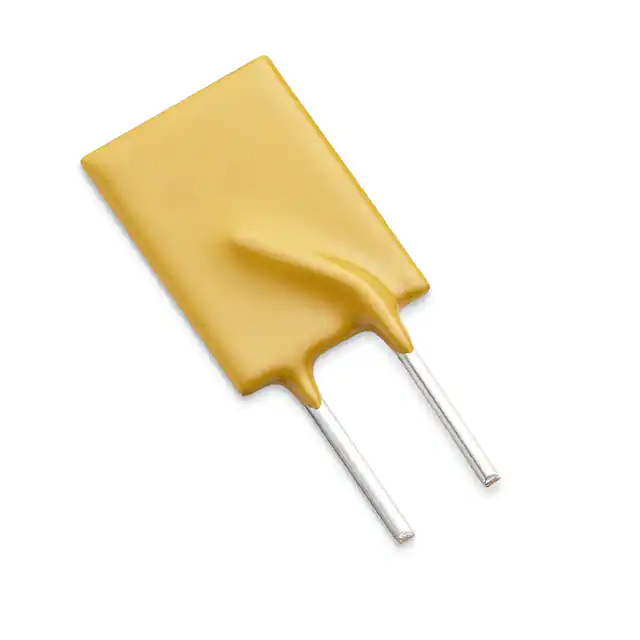

AHRL1000PTC RESET FUSE 10A 16V RAD |
3,197 | 1.56 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 10 A | 20 A | 10 s | 4.2 mOhms | 6.8 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.567 L x 0.142 W (14.40mm x 3.60mm) | 0.882 (22.40mm) | - |
|

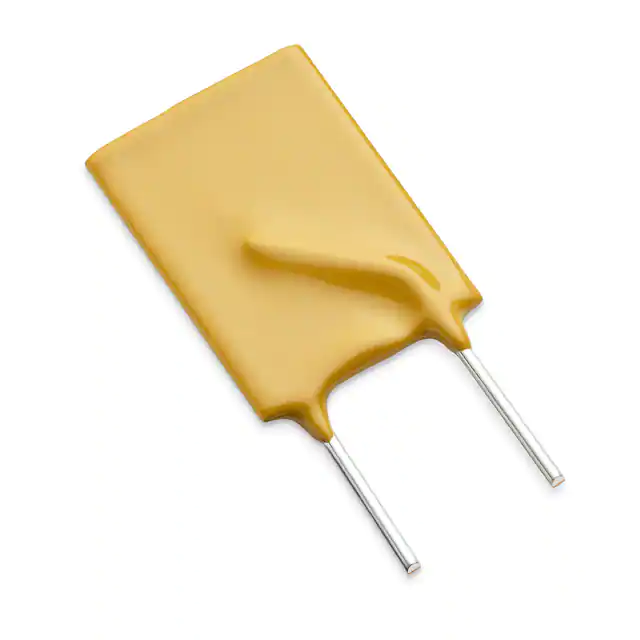

AHRL1500PTC RESET FUSE 15A 16V RAD |
2,996 | 2.04 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 15 A | 30 A | 18 s | 2.9 mOhms | 4.3 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.724 L x 0.142 W (18.40mm x 3.60mm) | 1.039 (26.40mm) | - |
|
RXEF020-APPTC RESET FUSE 72V 200MA RADIAL |
2,786 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.461 (11.70mm) | - |
|
RUSBF075-2PTC RESET FUSE 6V 750MA RADIAL |
2,097 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUSBF | Active | Polymeric | 6V | 40 A | 750 mA | 1.3 A | 400 ms | 110 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.449 (11.40mm) | - |
|
|
RUSBF075-APPTC RESET FUSE 6V 750MA RADIAL |
2,021 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUSBF | Active | Polymeric | 6V | 40 A | 750 mA | 1.3 A | 400 ms | 110 mOhms | 230 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.122 T (6.90mm x 3.10mm) | 0.449 (11.40mm) | - |
|
1210L500SLTH-VYRPTC RESET FUSE 6V 5A 1210 |
2,692 | 0.23 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 5 A | 10 A | - | - | - | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.031 (0.80mm) |
|
TCF250-120PTC RESET FUSE 60V 120MA SMD |
3,766 | 0.24 |
RFQ |
Datasheet |
Nonstandard SMD | Bulk | PolySwitch®, TCF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 900 ms | 5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.217 L x 0.217 W (5.50mm x 5.50mm) | - | 0.091 (2.30mm) |
|

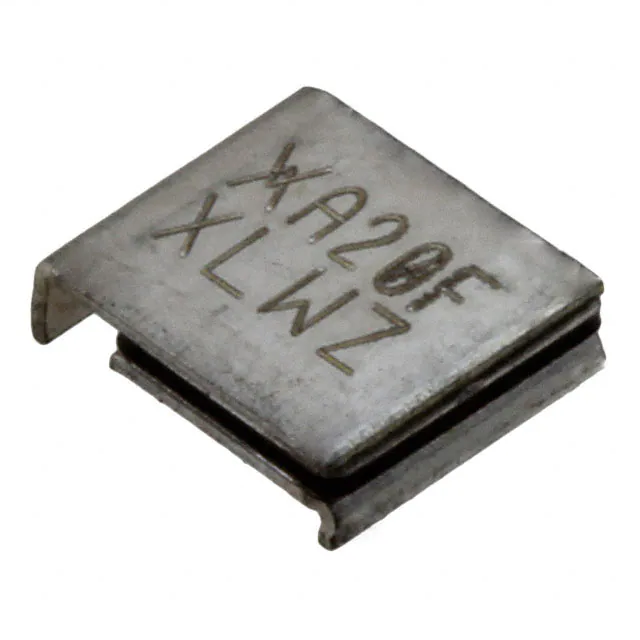

SMD200F-2018-2PTC RESET FUSE 6V 2A 2SMD |
3,836 | 0.25 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 6V | 40 A | 2 A | 4.2 A | 3 s | 48 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.200 L x 0.180 W (5.08mm x 4.58mm) | - | 0.060 (1.52mm) |
|
RXEF135K-APPTC RESET FUSE 72V 1.35A RADIAL |
3,237 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.535 Dia x 0.118 T (13.58mm x 3.00mm) | 0.776 (19.70mm) | - |
|
RUSBF160-2PTC RESET FUSE 16V 1.6A RADIAL |
3,536 | 0.26 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RUSBF | Active | Polymeric | 16V | 40 A | 1.6 A | 3.2 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
|
|
TCF250-145PTC RESET FUSE 60V 145MA SMD |
3,500 | 0.26 |
RFQ |
Datasheet |
Nonstandard SMD | Bulk | PolySwitch®, TCF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.217 L x 0.217 W (5.50mm x 5.50mm) | - | 0.091 (2.30mm) |
|
SMDC050F-2PTC RESET FUSE 60V 500MA 2920 |
3,854 | 0.27 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | SMDC | Active | Polymeric | 60V | 10 A | 500 mA | 1 A | 4 s | 150 mOhms | 1.2 Ohms | - | - | - | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.035 (0.90mm) |
|
RXEF185K-2PTC RESET FUSE 72V 1.85A RADIAL |
3,344 | 0.66 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.660 Dia x 0.118 T (16.76mm x 3.00mm) | 0.906 (23.00mm) | - |
|
|
RUEF400K-APPTC RESET FUSE 30V 4A RADIAL |
2,023 | 0.71 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 4 A | 8 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.839 (21.30mm) | - |
, Concave.jpg)
|
FEMTOSMDC010F/15-2PTC RESET FUSE 15V 100MA 0603 |
3,516 | 0.83 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoSMDC | Active | Polymeric | 15V | 40 A | 100 mA | 300 mA | 100 ms | 2 Ohms | 14 Ohms | - | - | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.033 (0.85mm) |
|
15LR380UPTC RESET FUSE 15V 3.8A STRAP |
3,043 | 0.42 |
RFQ |
Datasheet |
Strap | Bulk | POLY-FUSE®, LR | Active | Polymeric | 15V | 100 A | 3.8 A | 8.3 A | 5 s | 13 mOhms | 37 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.283 W (25.00mm x 7.20mm) | - | 0.039 (1.00mm) |
