| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1210L700SLWRPTC RESET FUSE 6V 7A 1210 |
2,522 | 1.02 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 7 A | 14 A | - | - | - | - | 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | - |
|

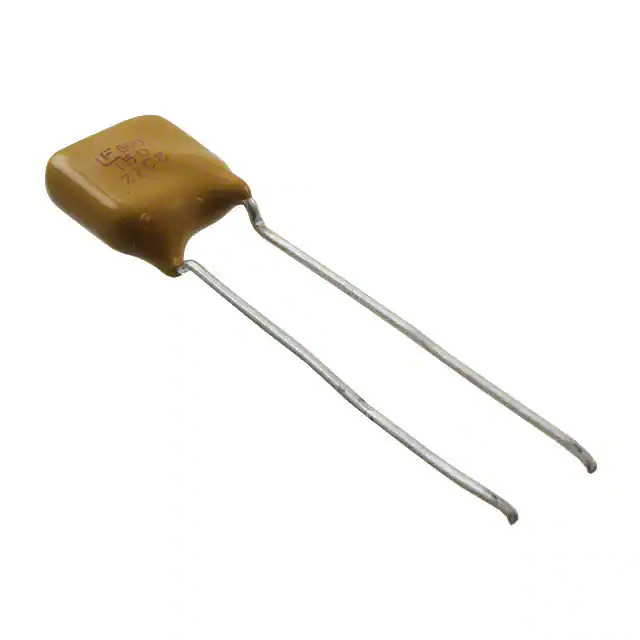

600R150-RAZRPTC RESET FUSE 60V 150MA RADIAL |
2,933 | 1.12 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 600R | Obsolete | Polymeric | 60V (600V Int) | 3 A | 150 mA | 300 mA | 4 s | 7 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - |
|
AGRF1400PTC RESET FUSE 16V 14A RADIAL |
3,920 | 1.43 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 14 A | 27.3 A | 9 s | 2.2 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.925 L x 0.138 W (23.50mm x 3.50mm) | 1.130 (28.70mm) | - |
|
250R180TMRPTC RESET FUSE 60V 180MA RADIAL |
2,081 | 1.68 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 250R | Obsolete | Polymeric | 60V (250V Int) | 10 A | 180 mA | 650 mA | 21 s | 1.4 Ohms | 4.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.374 Dia x 0.181 T (9.50mm x 4.60mm) | 0.472 (12.00mm) | - |
|

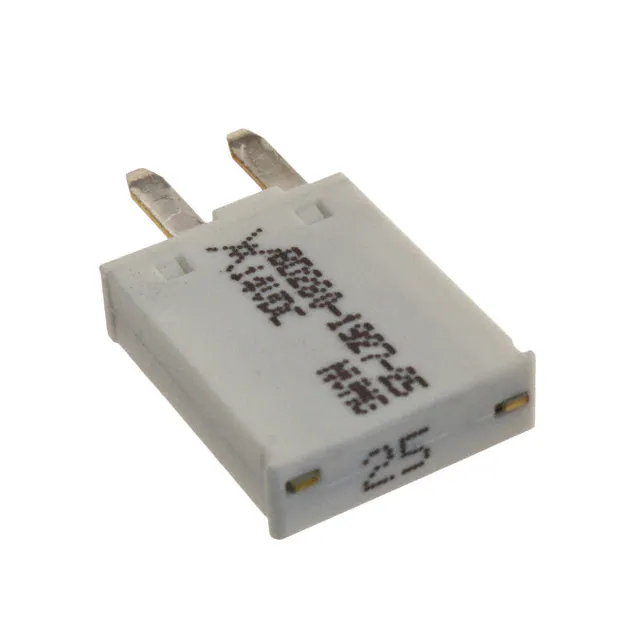

BD280-1927-25/16-WPTC RESET FUSE 14V 20A BLADE |
2,110 | 4.27 |
RFQ |
Datasheet |
Blade Type | Bulk | PolySwitch®, BD280 | Active | Polymeric | 14V | 100 A | 20 A | 32 A | 13 s | 2.4 Ohms | 4.2 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Holder | 1.083 L x 0.756 W (27.50mm x 19.20mm) | 0.262 (6.65mm) | - |
|
BD280-1927-30/16-WPTC RESET FUSE 14V 21A BLADE |
2,704 | 5.05 |
RFQ |
Datasheet |
Blade Type | Bulk | PolySwitch®, BD280 | Active | Polymeric | 14V | 100 A | 21 A | 38 A | 13 s | 2.1 Ohms | 4.3 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Holder | 1.083 L x 0.756 W (27.50mm x 19.20mm) | 0.262 (6.65mm) | - |
|
TS120A-3851DUAL SINGLE SHOT TIMER |
3,188 | 80.22 |
RFQ |
- | Box | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
SRP175PTC RESET FUSE 15V 1.75A STRAP |
3,691 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, SRP | Obsolete | Polymeric | 15V | 100 A | 1.75 A | 3.8 A | 5 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.199 W (22.00mm x 5.05mm) | - | 0.039 (1.00mm) |
|
30R500UPTC RESET FUSE 30V 5A RADIAL |
3,311 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Obsolete | Polymeric | 30V | 40 A | 5 A | 10 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 1.008 (25.60mm) | - |
|
RXE020-2PTC RESET FUSE 72V 200MA RADIAL |
3,484 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RXE | Obsolete | Polymeric | 72V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | - | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.461 (11.70mm) | - |
|
RXE040-2PTC RESET FUSE 72V 400MA RADIAL |
3,486 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RXE | Obsolete | Polymeric | 72V | 40 A | 400 mA | 800 mA | 3.8 s | 550 mOhms | 1.29 Ohms | - | - | - | Through Hole | 0.299 Dia x 0.118 T (7.60mm x 3.00mm) | 0.532 (13.50mm) | - |
|
RXE025-2PTC RESET FUSE 72V 250MA RADIAL |
2,977 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RXE | Obsolete | Polymeric | 72V | 40 A | 250 mA | 500 mA | 2.5 s | 1.25 Ohms | 3 Ohms | - | - | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|

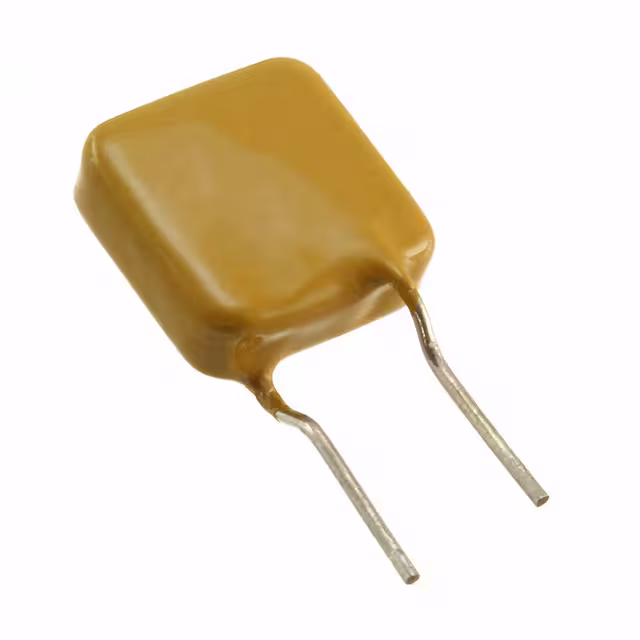

TR600-150QF-EX-B-0.5PTC RESET FUSE RADIAL DISC |
3,541 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TR600 | Active | Polymeric | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.532 L x 0.236 W (13.50mm x 6.00mm) | 0.496 (12.60mm) | - |
|
72R075XUPTC RESET FUSE 72V 750MA RADIAL |
3,588 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 72R | Obsolete | Polymeric | 72V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.122 T (10.20mm x 3.10mm) | 0.598 (15.20mm) | - |
|
1206L380SLWRPTC RESET FUSE 6V 3.8A 1206 |
3,317 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Obsolete | Polymeric | 6V | 50 A | 3.8 A | 8 A | 3 s | 2 mOhms | 16 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.028 (0.70mm) |
|
MINISMD050-2PTC RESET FUSE 500MA 1812 |
3,821 | 0.00 |
RFQ |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch® | Obsolete | - | - | - | 500 mA | - | - | - | - | - | - | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.024 (0.62mm) | |
|
RXE300PTC RESET FUSE 72V 3A RADIAL |
3,153 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, RXE | Obsolete | Polymeric | 72V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | - | - | Through Hole | 0.941 Dia x 0.118 T (23.90mm x 3.00mm) | 1.126 (28.60mm) | - |
|
RXE050PTC RESET FUSE 72V 500MA RADIAL |
2,301 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, RXE | Obsolete | Polymeric | 72V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | Through Hole | 0.311 Dia x 0.118 T (7.90mm x 3.00mm) | 0.539 (13.70mm) | - |
|
RXE090PTC RESET FUSE 72V 900MA RADIAL |
2,046 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch®, RXE | Obsolete | Polymeric | 72V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | - | - | Through Hole | 0.441 Dia x 0.118 T (11.20mm x 3.00mm) | 0.622 (15.80mm) | - | |
|
RXE065PTC RESET FUSE 60V 650MA RADIAL |
3,329 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch®, RXE | Obsolete | Polymeric | 60V | 40 A | 650 mA | 1.3 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.370 Dia x 0.118 T (9.40mm x 3.00mm) | 0.571 (14.50mm) | - |
