| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
72R025XUPTC RESET FUSE 72V 250MA RADIAL |
2,595 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 72R | Obsolete | Polymeric | 72V | 40 A | 250 mA | 500 mA | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
72R025XPRPTC RESET FUSE 72V 250MA RADIAL |
2,023 | 0.49 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Obsolete | Polymeric | 72V | 40 A | 250 mA | 500 mA | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
TS250-130F-RA-2PTC RESET FUSE 60V 130MA 2SMD |
2,177 | 0.50 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TS250 | Active | Polymeric | 60V (600V Int) | 1 A | 130 mA | 260 mA | 2.5 s | 6.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.352 L x 0.291 W (8.95mm x 7.40mm) | - | 0.134 (3.40mm) |
|
TRF250-145-B-0.5PTC RESET FUSE 60V 145MA RADIAL |
3,243 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
16R090BPRPTC RESET FUSE 16V 900MA RADIAL |
2,372 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 900 mA | 1.8 A | 1.2 s | 70 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.480 (12.20mm) | - |
|
|
TD0710-B33-2JBPTC RESET FUSE |
2,216 | 0.59 |
RFQ |
- | Bulk | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
RUSBF160PTC RESET FUSE 16V 1.6A RADIAL |
3,230 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUSBF | Active | Polymeric | 16V | 40 A | 1.6 A | 3.2 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
|
AGRF1400-2PTC RESET FUSE 16V 14A RADIAL |
2,783 | 0.66 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 14 A | 27.3 A | 9 s | 2.2 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.925 L x 0.138 W (23.50mm x 3.50mm) | 1.130 (28.70mm) | - |
|
30R700UFPTC RESET FUSE 30V 7A RADIAL |
3,747 | 0.74 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Obsolete | Polymeric | 30V | 40 A | 7 A | 14 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.752 L x 0.118 W (19.10mm x 3.00mm) | 1.126 (28.60mm) | - |
|

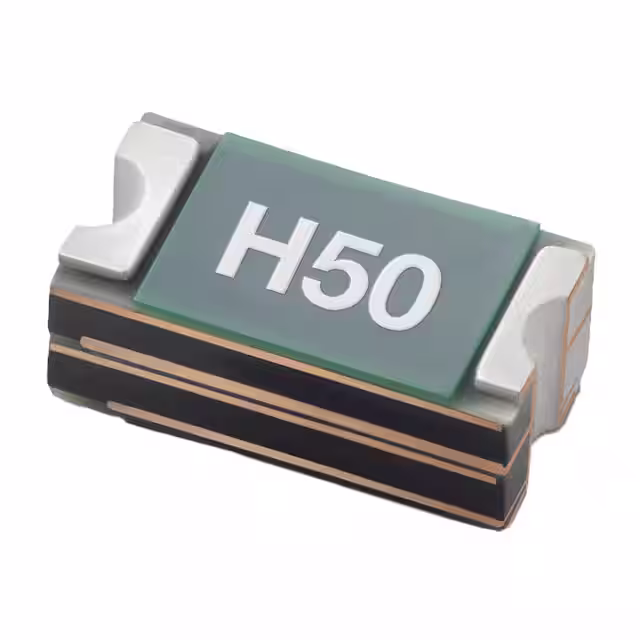

MINIASMDCH050F-2PTC RESET FUSE 0.50A 30V 1812 |
3,099 | 0.77 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Obsolete | Polymeric | 30V | 20 A | 500 mA | 1.6 A | 100 ms | 200 mOhms | 1.35 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.032 (0.82mm) |
|
TRF250-110UPTC RESET FUSE 60V 110MA RADIAL |
2,526 | 0.79 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 110 mA | 220 mA | 1.2 s | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.209 Dia x 0.150 T (5.30mm x 3.80mm) | 0.370 (9.40mm) | - |
.jpg)
|
MICROSMD400LR-2PTC RESET FUSE 6V 4A 1206 |
3,237 | 0.80 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Obsolete | Polymeric | 6V | 50 A | 4 A | 9 A | 10 s | 2.5 mOhms | 9.9 mOhms | - | -40°C ~ 80°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.039 (1.00mm) |
|
RGEF700-1PTC RESET FUSE 16V 7A RADIAL |
3,961 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 7 A | 11.9 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.421 L x 0.098 W (10.70mm x 2.50mm) | 0.776 (19.70mm) | - |
|
RUEF500KPTC RESET FUSE 30V 5A RADIAL |
3,658 | 0.83 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 5 A | 10 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 1.008 (25.60mm) | - |
|
AHRF400PTC RESET FUSE 16V 4A RADIAL |
3,336 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 4 A | 7.4 A | 5 s | 21 mOhms | 60 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.394 L x 0.118 W (10.00mm x 3.00mm) | 0.591 (15.00mm) | - |
|
AHRF450PTC RESET FUSE 16V 4.5A RADIAL |
2,328 | 0.87 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 4.5 A | 8.7 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.409 Dia x 0.122 T (10.40mm x 3.10mm) | 0.563 (14.30mm) | - |
|
1812L370SLPRPTC RESET FUSE 6V 3.7A 1812 |
2,921 | 0.93 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 3.7 A | 9.1 A | 2 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.028 (0.70mm) |
|
|
TRF250-145-RA-B-0.5PTC RESET FUSE 60V 145MA RADIAL |
3,924 | 0.95 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
|
TRF250-145TPTC RESET FUSE 60V 145MA RADIAL |
2,518 | 0.99 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
1210L600SL-VYRPTC RESET FUSE 6V 6A 1210 |
2,015 | 1.02 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 6 A | 12 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.039 (1.00mm) |
