| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXEF375-1PTC RESET FUSE 72V 3.75A RADIAL |
3,179 | 1.36 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 3.75 A | 7.5 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 1.071 Dia x 0.118 T (27.20mm x 3.00mm) | 1.252 (31.80mm) | - |
|

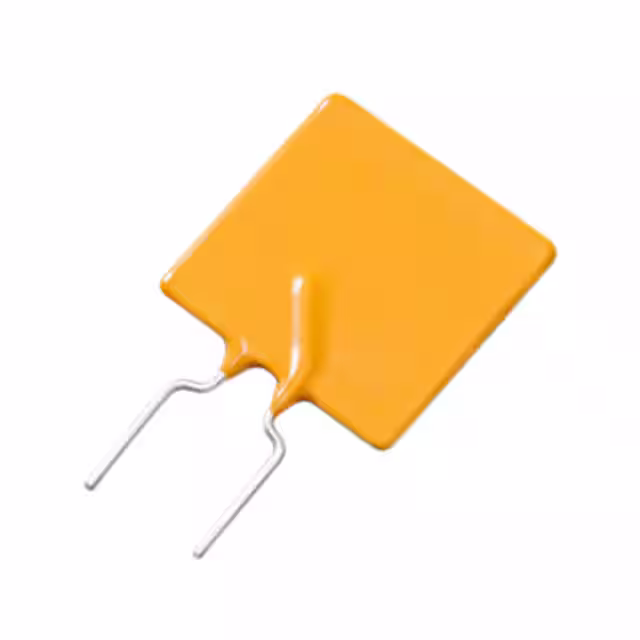

AHRF1000PTC RESET FUSE 16V 10A RADIAL |
2,964 | 1.42 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 10 A | 20.5 A | 10.5 s | 5.1 mOhms | 15 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.043 (26.50mm) | - |
|

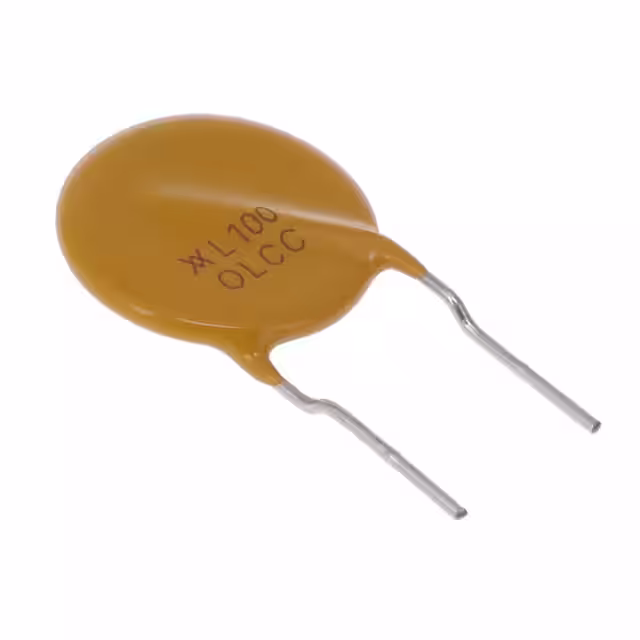

LVR100K-240PTC RESET FUSE |
2,530 | 1.45 |
RFQ |
Datasheet |
Radial, Disc | Bulk | LVR | Active | Polymeric | 240V (265V Int) | 10 A | 1 A | 2 A | 21 s | 218 mOhms | 580 mOhms | 334 mOhms | -20°C ~ 85°C | - | Through Hole | 0.736 Dia (18.70mm) | 1.134 (28.80mm) | - |
|
TRF600-400PTC RESET FUSE 60V 400MA RADIAL |
3,636 | 1.48 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF600 | Active | Polymeric | 60V (600V Int) | 60 A | 400 mA | 1 A | 10 s | 950 mOhms | 1.9 Ohms | - | 0°C ~ 85°C | - | Through Hole | 0.583 L x 0.181 W (14.80mm x 4.60mm) | 0.516 (13.10mm) | - |
|
RHEF1400PTC RESET FUSE 16V 14A RADIAL |
2,827 | 1.72 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 14 A | 27 A | 13 s | 3 mOhms | 9 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.126 (28.60mm) | - |
|

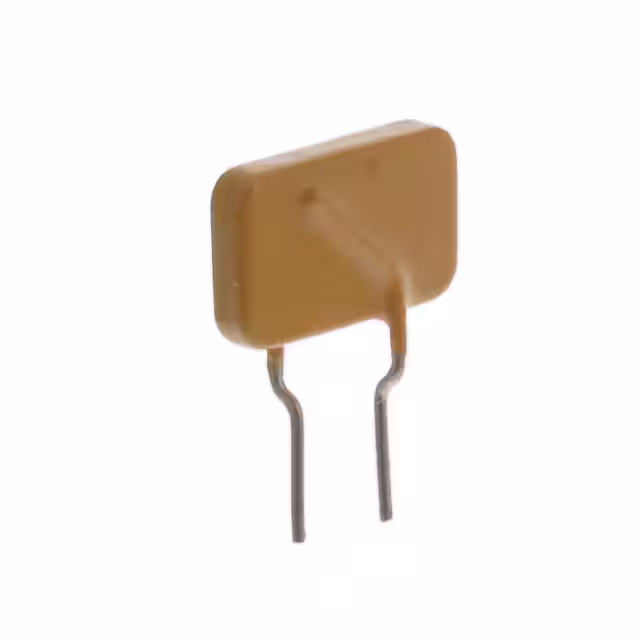

TRF600-250PTC RESET FUSE 250V 250MA RADIAL |
2,522 | 1.77 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 3 A | 250 mA | 850 mA | 1 s | 1 Ohms | 7 Ohms | 4.3 Ohms | -40°C ~ 85°C | - | Through Hole | 0.591 L x 0.181 W (15.00mm x 4.60mm) | 0.571 (14.50mm) | - |
|
TSM600-400F-2PTC RESET FUSE 250V 400MA 4SMD |
3,460 | 4.26 |
RFQ |
Datasheet |
4-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TSM | Active | Polymeric | 250V (600V Int) | 60 A | 400 mA | 1 A | 14 s | 500 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.681 L x 0.425 W (17.30mm x 10.80mm) | - | 0.451 (11.45mm) |
|
|
TSM600-250F-RA-2PTC RESET FUSE 250V 250MA 4SMD |
2,250 | 5.11 |
RFQ |
Datasheet |
4-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TSM | Active | Polymeric | 250V (600V Int) | 3 A | 250 mA | 860 mA | 6 s | 1 Ohms | 5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.681 L x 0.425 W (17.30mm x 10.80mm) | - | 0.461 (11.70mm) |
|
RXEF135K-2PTC RESET FUSE 72V 1.35A RADIAL |
2,217 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | - | 0.780 (19.80mm) | - |
|
RGEF600-2PTC RESET FUSE 16V 6A RADIAL |
2,492 | 0.79 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 6 A | 10.2 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.098 W (10.20mm x 2.50mm) | 0.673 (17.10mm) | - |
|
RHEF400-2PTC RESET FUSE 16V 4A RADIAL |
3,118 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 4 A | 7.5 A | 5 s | 24 mOhms | 60 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.394 L x 0.118 W (10.00mm x 3.00mm) | 0.591 (15.00mm) | - |
|
RXEF065SPTC RESET FUSE 72V 650MA RADIAL |
2,984 | 0.49 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 650 mA | 1.3 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.370 Dia x 0.118 T (9.40mm x 3.00mm) | 0.571 (14.50mm) | - |
|
72R135XFPTC RESET FUSE 72V 1.35A RADIAL |
2,342 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.535 Dia x 0.122 T (13.58mm x 3.10mm) | 0.780 (19.80mm) | - |
|
TRF600-160-2PTC RESET FUSE 250V 160MA RADIAL |
2,214 | 1.31 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 60 A | 160 mA | 320 mA | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - |
|
RGEF500KPTC RESET FUSE 16V 5A RADIAL |
2,237 | 0.71 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.390 L x 0.098 W (9.90mm x 2.50mm) | 0.563 (14.30mm) | - |
|
AGRF500PTC RESET FUSE 16V 5A RADIAL |
3,575 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 5 A | 9.4 A | 2.5 s | 14 mOhms | 34 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.409 Dia x 0.122 T (10.40mm x 3.10mm) | 0.614 (15.60mm) | - |
|
NANOASMDC025F-2PPTC-MINI-PSW |
2,026 | 0.50 |
RFQ |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch® ASMD | Active | Polymeric | 16V | 100 A | 250 mA | 580 mA | 10 ms | 400 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | - | - | 0.032 (0.82mm) | |
|
RUEF185-APPTC RESET FUSE 30V 1.85A RADIAL |
2,032 | 0.55 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.118 T (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
|
|
NANOASMDCH010F-2PPTC-MINI-PSW |
3,345 | 0.67 |
RFQ |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®nanoASMDCH | Active | Polymeric | 30V | 20 A | 100 mA | 300 mA | 5 s | 1 Ohms | 7.5 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | - | 0.033 (0.85mm) | |
|
|
NANOASMDCH005F-2PPTC-MINI-PSW |
3,769 | 0.67 |
RFQ |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®nanoASMDCH | Active | Polymeric | 30V | 20 A | 50 mA | 150 mA | 20 s | 3.5 Ohms | 35 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | - | 0.033 (0.85mm) |
