| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RGEF600PTC RESET FUSE 16V 6A RADIAL |
2,320 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 6 A | 10.2 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.098 W (10.20mm x 2.50mm) | 0.673 (17.10mm) | - |
|
TRF250-145PTC RESET FUSE 60V 145MA RADIAL |
2,272 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|

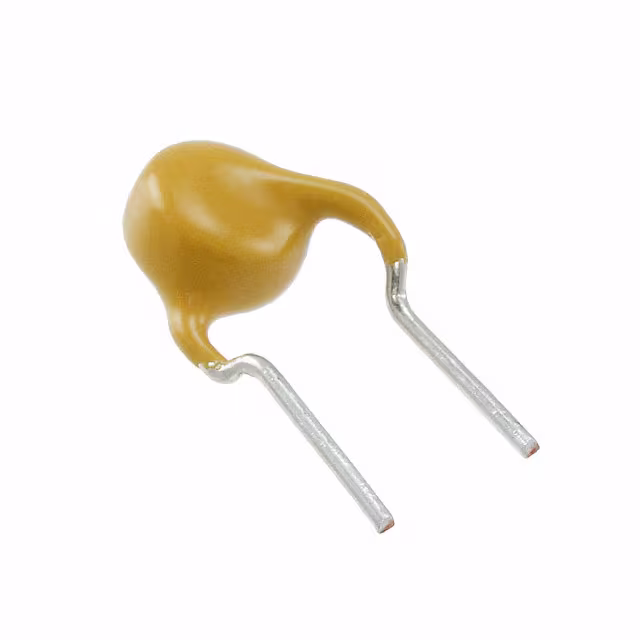

TRF250-080TPTC RESET FUSE 60V 80MA RADIAL |
3,495 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 80 mA | 160 mA | 4 s | 15 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.228 Dia x 0.181 T (5.80mm x 4.60mm) | 0.390 (9.90mm) | - |
|
1206L400SLWRPTC RESET FUSE 6V 4A 1206 |
2,622 | 2.19 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 4 A | 8 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.055 (1.40mm) |
|
RGEF800PTC RESET FUSE 16V 8A RADIAL |
2,293 | 0.91 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 8 A | 13.6 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.480 L x 0.098 W (12.20mm x 2.50mm) | 0.823 (20.90mm) | - |
|
RGEF900PTC RESET FUSE 16V 9A RADIAL |
3,598 | 0.91 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 9 A | 15.3 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.531 L x 0.100 W (13.50mm x 2.50mm) | 0.854 (21.70mm) | - |
|
RUEF700PTC RESET FUSE 30V 7A RADIAL |
3,113 | 0.93 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 7 A | 14 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.752 L x 0.118 W (19.10mm x 3.00mm) | 1.020 (25.90mm) | - |
|
|
RUEF800PTC RESET FUSE 30V 8A RADIAL |
2,771 | 0.96 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 8 A | 16 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.850 L x 0.118 W (21.60mm x 3.00mm) | 1.118 (28.40mm) | - |
|
RXEF375PTC RESET FUSE 72V 3.75A RADIAL |
3,797 | 1.01 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 3.75 A | 7.5 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 1.071 Dia x 0.118 T (27.20mm x 3.00mm) | 1.252 (31.80mm) | - |
|
RGEF1000PTC RESET FUSE 16V 10A RADIAL |
2,178 | 1.06 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 10 A | 17 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.098 W (16.00mm x 2.50mm) | 0.992 (25.20mm) | - |
|
|
RUEF900PTC RESET FUSE 30V 9A RADIAL |
2,950 | 1.11 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 9 A | 18 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.949 L x 0.118 W (24.10mm x 3.00mm) | 1.142 (29.00mm) | - |
|
AHEF1000PTC RESET FUSE 32V 10A RADIAL |
2,235 | 2.14 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHEF | Active | Polymeric | 32V | 100 A | 10 A | 20 A | 15 s | 6 mOhms | 16 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.925 L x 0.157 W (23.50mm x 4.00mm) | 1.098 (27.90mm) | - |
|

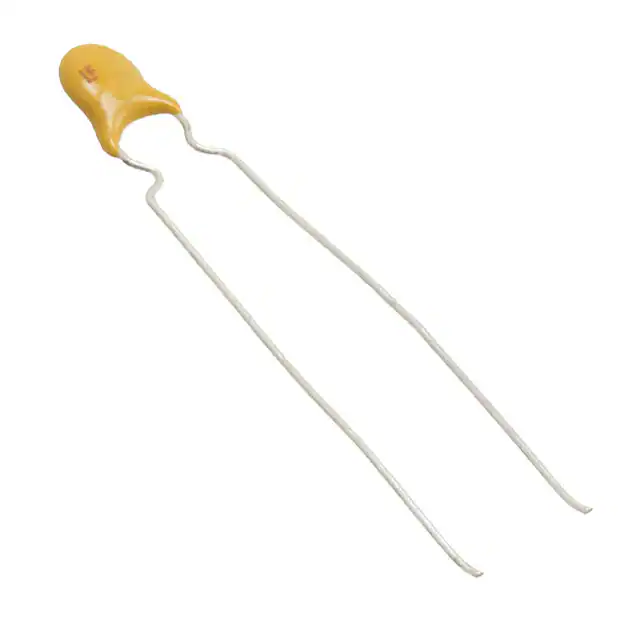

72R020XPRPTC RESET FUSE 72V 200MA RADIAL |
2,290 | 0.48 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.461 (11.70mm) | - |
|
1812L160PRPTC RESET FUSE 8V 1.6A 1812 |
2,744 | 0.50 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 8V | 100 A | 1.6 A | 2.8 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.030 (0.75mm) |
|
30R135UPRPTC RESET FUSE 30V 1.35A RADIAL |
3,189 | 0.55 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 1.35 A | 2.7 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
|
|
RUEF300K-2PTC RESET FUSE 30V 3A RADIAL |
2,487 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.710 (18.03mm) | - |
|
RGEF250-2PTC RESET FUSE 16V 2.5A RADIAL |
2,848 | 0.62 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 2.5 A | 4.7 A | 5 s | 22 mOhms | 53 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.504 (12.80mm) | - |
|
60R135XMRPTC RESET FUSE 60V 1.35A RADIAL |
2,894 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.535 Dia x 0.122 T (13.58mm x 3.10mm) | 0.780 (19.80mm) | - |
|
SMD250F/15-2920-2PTC RESET FUSE 15V 2.5A 2SMD |
2,714 | 0.63 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 15V | 40 A | 2.5 A | 5 A | 10 s | 35 mOhms | 85 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.118 (3.00mm) |
|
60R160XMRPTC RESET FUSE 60V 1.6A RADIAL |
2,030 | 0.59 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 1.6 A | 3.2 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.600 Dia x 0.122 T (15.24mm x 3.10mm) | 0.850 (21.60mm) | - |
