| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRF250-145UPTC RESET FUSE 60V 145MA RADIAL |
2,688 | 0.90 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 4 s | 3.5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|
VTP210SFPTC RESET FUSE 16V 2.1A STRAP |
2,877 | 0.91 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VTP | Active | Polymeric | 16V | 100 A | 2.1 A | 4.7 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.909 L x 0.209 W (23.10mm x 5.30mm) | - | 0.032 (0.80mm) |
|

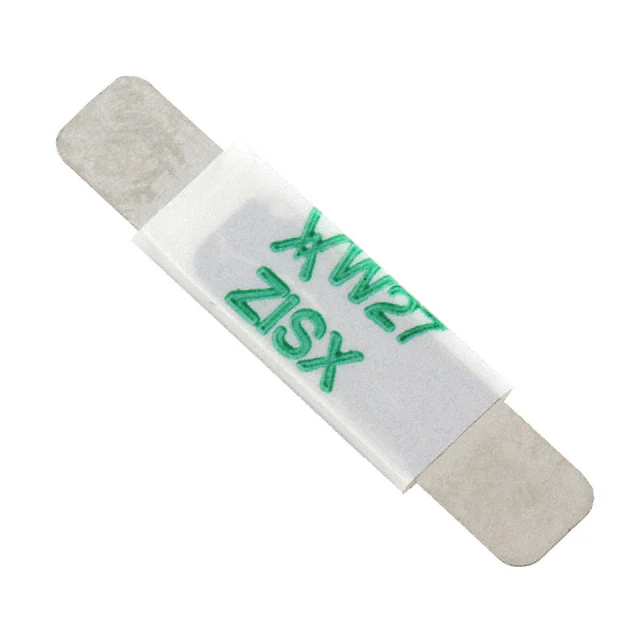

VLP270FPTC RESET FUSE 16V 2.7A STRAP |
2,819 | 0.91 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLP | Active | Polymeric | 16V | 60 A | 2.7 A | 6.5 A | 5 s | 12 mOhms | 36 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.866 L x 0.201 W (22.00mm x 5.10mm) | - | 0.032 (0.80mm) |
|
VTP210LFPTC RESET FUSE 16V 2.1A STRAP |
2,033 | 0.91 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VTP | Active | Polymeric | 16V | 100 A | 2.1 A | 4.7 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.024 L x 0.209 W (26.00mm x 5.30mm) | - | 0.032 (0.80mm) |
|
AHRF550PTC RESET FUSE 16V 5.5A RADIAL |
3,705 | 0.91 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 5.5 A | 10 A | 6 s | 13 mOhms | 37 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.441 L x 0.118 W (11.20mm x 3.00mm) | 0.744 (18.90mm) | - |
|
TRF250-184PTC RESET FUSE 100V 184MA RADIAL |
2,848 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 100V (250V Int) | 10 A | 184 mA | 1 A | 1.3 s | 1.2 Ohms | 3.1 Ohms | - | 0°C ~ 85°C | - | Through Hole | 0.303 Dia x 0.181 T (7.70mm x 4.60mm) | 0.413 (10.50mm) | - |
|
30R800UHPTC RESET FUSE 30V 8A RADIAL |
2,428 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 8 A | 16 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.850 L x 0.118 W (21.60mm x 3.00mm) | 1.224 (31.10mm) | - |
|
RHEF750PTC RESET FUSE 16V 7.5A RADIAL |
3,025 | 0.96 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 7.5 A | 13.1 A | 7 s | 9.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.925 (23.50mm) | - |
|
RUEF800-1PTC RESET FUSE 30V 8A RADIAL |
2,592 | 0.99 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 8 A | 16 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.850 L x 0.118 W (21.60mm x 3.00mm) | 1.118 (28.40mm) | - |
|

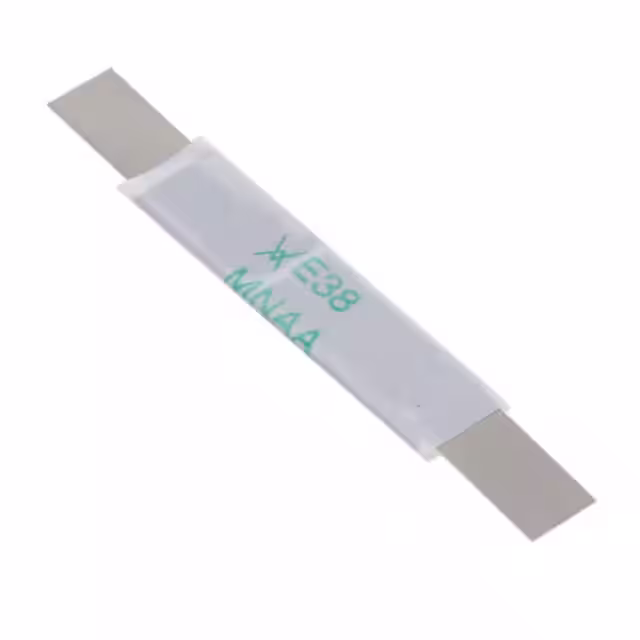

LR4-380XFPTC RESET FUSE 15V 3.8A STRAP |
3,480 | 1.05 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LR4 | Active | Polymeric | 15V | 100 A | 3.8 A | 8.3 A | 5 s | 13 mOhms | 37 mOhms | - | - | - | User Defined | 1.339 L x 0.205 W (34.00mm x 5.20mm) | - | 0.039 (1.00mm) |
|
RXEF375KPTC RESET FUSE 72V 3.75A RADIAL |
3,141 | 1.05 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 3.75 A | 7.5 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 1.035 Dia x 0.118 T (26.30mm x 3.00mm) | 1.224 (31.10mm) | - |
|
RGEF1100PTC RESET FUSE 16V 11A RADIAL |
3,307 | 1.06 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 11 A | 18.7 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.669 L x 0.098 W (17.00mm x 2.50mm) | 1.024 (26.00mm) | - |
|
30R900UHPTC RESET FUSE 30V 9A RADIAL |
3,112 | 1.08 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 9 A | 18 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.950 L x 0.120 W (24.10mm x 3.00mm) | 1.244 (31.60mm) | - |
|
600R150FPTC RESET FUSE 60V 150MA RADIAL |
3,636 | 1.08 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 600R | Active | Polymeric | 60V (600V Int) | 3 A | 150 mA | 300 mA | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - |
|
RGEF1200-1PTC RESET FUSE 16V 12A RADIAL |
3,327 | 1.11 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 12 A | 20.4 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.670 L x 0.115 W (16.95mm x 2.90mm) | 1.102 (28.00mm) | - |
|
600R150-RAFPTC RESET FUSE 60V 150MA RADIAL |
2,093 | 1.20 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 600R | Active | Polymeric | 60V (600V Int) | 3 A | 150 mA | 300 mA | 4 s | 7 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - |
|
LR4-550FPTC RESET FUSE 20V 5.5A STRAP |
2,145 | 1.23 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 5.5 A | 10.5 A | 5 s | 9 mOhms | 22 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.417 L x 0.283 W (36.00mm x 7.20mm) | - | 0.039 (1.00mm) |
|

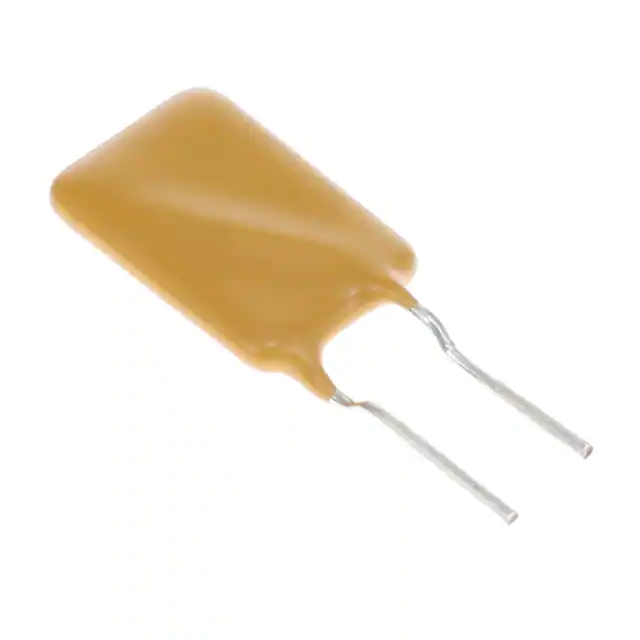

LVR075K-240PTC RESET FUSE |
3,348 | 1.27 |
RFQ |
Datasheet |
Radial, Disc | Bulk | LVR | Active | Polymeric | 240V (265V Int) | 7.5 A | 750 mA | 1.5 A | 18 s | 316 mOhms | 839 mOhms | 483 mOhms | -20°C ~ 85°C | - | Through Hole | 0.453 L x 0.161 W (11.50mm x 4.10mm) | 1.000 (25.40mm) | - |
|
TRF600-160PTC RESET FUSE 250V 160MA RADIAL |
3,271 | 1.27 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 60 A | 160 mA | 320 mA | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - |
|
RHEF1000PTC RESET FUSE 16V 10A RADIAL |
3,920 | 1.31 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 10 A | 18.5 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.043 (26.50mm) | - |
