| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMDC030F-2PTC RESET FUSE 60V 300MA 2920 |
3,470 | 0.67 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | SMDC | Active | Polymeric | 60V | 10 A | 300 mA | 600 mA | 3 s | 300 mOhms | 3.4 Ohms | - | - | - | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.035 (0.90mm) |
|
RHEF600-2PTC RESET FUSE 16V 6A RADIAL |
2,346 | 0.86 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 6 A | 10.8 A | 5 s | 13 mOhms | 32 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.441 L x 0.122 W (11.20mm x 3.10mm) | 0.827 (21.00mm) | - |
|
TRF250-120T-2PTC RESET FUSE 60V 120MA RADIAL |
2,698 | 0.87 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 1.2 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
RUEF600-2PTC RESET FUSE 30V 6A RADIAL |
3,882 | 0.89 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.949 (24.10mm) | - |
|
250S130-RADRPTC RESET FUSE 60V 130MA 2SMD |
2,734 | 0.97 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 250S | Active | Polymeric | 60V (250V Int) | 3 A | 130 mA | 260 mA | 1.4 s | 6.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.370 L x 0.291 W (9.40mm x 7.40mm) | - | 0.146 (3.70mm) |
|
RXEF030SPTC RESET FUSE 72V 300MA RADIAL |
3,477 | 0.44 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 300 mA | 600 mA | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|
60R017XUPTC RESET FUSE 60V 170MA RADIAL |
3,636 | 0.44 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
|
250S130VZRPTC RESET FUSE 60V 130MA 2SMD |
2,696 | 0.97 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 250S | Active | Polymeric | 60V (250V Int) | 3 A | 130 mA | 260 mA | 2 s | 4 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.240 L x 0.272 W (6.10mm x 6.90mm) | - | 0.126 (3.20mm) |
|
|
RXEF010-1PTC RESET FUSE 60V 100MA RADIAL |
2,582 | 0.45 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.457 (11.60mm) | - |
|
AGRF800-2PTC RESET FUSE 16V 8A RADIAL |
2,535 | 1.05 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 8 A | 15 A | 5.5 s | 4.9 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.500 L x 0.118 W (12.70mm x 3.00mm) | 0.874 (22.20mm) | - |
|
RUEF110SPTC RESET FUSE 30V 1.1A RADIAL |
3,767 | 0.47 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.1 A | 2.2 A | 6.6 s | 70 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.559 (14.20mm) | - |
|
RXEF050-1PTC RESET FUSE 72V 500MA RADIAL |
3,229 | 0.48 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.311 Dia x 0.118 T (7.90mm x 3.00mm) | 0.539 (13.70mm) | - |
|
RXEF075SPTC RESET FUSE 72V 750MA RADIAL |
2,540 | 0.50 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.122 T (10.20mm x 3.10mm) | 0.598 (15.20mm) | - |
|

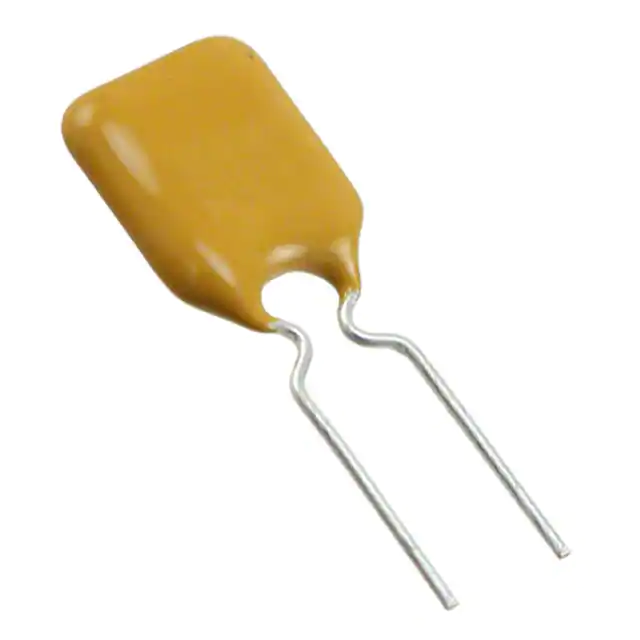

30R135UUPTC RESET FUSE 30V 1.35A RADIAL |
2,162 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 1.35 A | 2.7 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
|
60R135XFPTC RESET FUSE 60V 1.35A RADIAL |
3,189 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.535 Dia x 0.122 T (13.58mm x 3.10mm) | 0.780 (19.80mm) | - |
|
RXEF135KPTC RESET FUSE 72V 1.35A RADIAL |
3,461 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.535 Dia x 0.118 T (13.58mm x 3.00mm) | 0.776 (19.70mm) | - |
|
60R160XFPTC RESET FUSE 60V 1.6A RADIAL |
3,736 | 0.56 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 1.6 A | 3.2 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.600 Dia x 0.122 T (15.24mm x 3.10mm) | 0.850 (21.60mm) | - |
|
RUEF300UPTC RESET FUSE 30V 3A RADIAL |
2,039 | 0.57 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.650 (16.50mm) | - |
|
RUSBF120PTC RESET FUSE 6V 1.2A RADIAL |
2,537 | 0.57 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUSBF | Active | Polymeric | 6V | 40 A | 1.2 A | 2 A | 500 ms | 70 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.122 T (6.90mm x 3.10mm) | 0.461 (11.70mm) | - |
|
RUSBF110PTC RESET FUSE 16V 1.1A RADIAL |
2,296 | 0.57 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUSBF | Active | Polymeric | 16V | 40 A | 1.1 A | 2.2 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.559 (14.20mm) | - |
