| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGRF1200PTC RESET FUSE 16V 12A RADIAL |
184 | 1.22 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 12 A | 22.1 A | 8 s | 3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.689 L x 0.138 W (17.50mm x 3.50mm) | 1.134 (28.80mm) | - |
|
|
AGRF1200-2PTC RESET FUSE 16V 12A RADIAL |
875 | 1.25 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 12 A | 22.1 A | 8 s | 3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.689 L x 0.138 W (17.50mm x 3.50mm) | 1.134 (28.80mm) | - |
|
TRF600-160-1PTC RESET FUSE 250V 160MA RADIAL |
254 | 1.31 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 60 A | 160 mA | 320 mA | 18 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - |
|
LVR055K-2PTC RESET FUSE 240V 550MA RADIAL |
360 | 1.34 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 7 A | 550 mA | 1.25 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.882 (22.40mm) | - |
|
RGEF1400-1PTC RESET FUSE 16V 14A RADIAL |
135 | 1.36 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 14 A | 23.8 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.925 L x 0.114 W (23.50mm x 2.90mm) | 1.098 (27.90mm) | - |
|
LVR100S-240-2PTC RESET FUSE 240V 1A RADIAL |
983 | 1.53 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 10 A | 1 A | 2 A | 21 s | 218 mOhms | 580 mOhms | - | -20°C ~ 85°C | - | Through Hole | 0.736 Dia x 0.201 T (18.70mm x 5.10mm) | 0.961 (24.40mm) | - |
|
1812L035/60MR-APTC 60V POLYFUSE SMD 1812 0.35A |
979 | 1.76 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 60V | 10 A | 350 mA | 700 mA | 150 ms | 400 mOhms | 1.7 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.071 (1.80mm) |
|
RHEF1500-2PTC RESET FUSE 16V 15A RADIAL |
714 | 1.79 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 15 A | 28 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.130 (28.70mm) | - |
|
1206L350SLTHYRPTC RESET FUSE 6V 3.5A 1206 |
200 | 1.85 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 3.5 A | 7 A | 5 s | 3 mOhms | 18 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.030 (0.75mm) |
|
1206L260SLTHYRPTC RESET FUSE 6V 2.6A 1206 |
4,145 | 1.85 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2.6 A | 5 A | 4 s | 3 mOhms | 26 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.028 (0.70mm) |
|
0805L260SLTHYRPTC RESET FUSE 6V 2.6A 0805 |
869 | 2.19 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2.6 A | 5 A | 4 s | 3 mOhms | 35 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.030 (0.75mm) |
|
1206L300/12SLYRPTC RESET FUSE 3.0A 12V 1206 |
519 | 2.19 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 12V | 50 A | 3 A | 6 A | 4 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.030 (0.75mm) |
|
|
1206L500SLWRPTC RESET FUSE 6V 5A 1206 |
3,579 | 2.36 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 5 A | 10 A | 2 s | 100 mOhms | 12 mOhms | - | - | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.039 (1.00mm) |
|
2920L400/15MR-APTC 15V POLYFUSE SMD 2920 4.0A |
156 | 2.79 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 15V | 40 A | 4 A | 8 A | 4 s | 10 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.063 (1.60mm) |
|

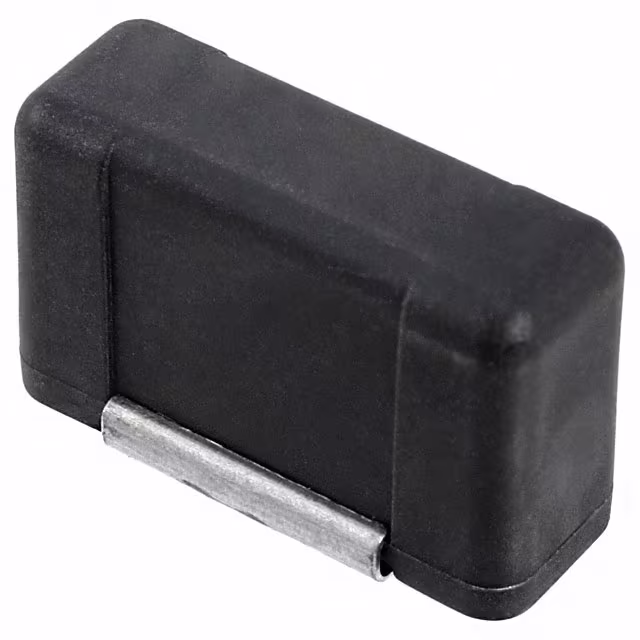

TS600-200F-RA-B-0.5-2PTC RESET FUSE 60V 200MA 2SMD |
259 | 2.86 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TS600 | Active | Polymeric | 60V (600V Int) | 3 A | 200 mA | 400 mA | 10 s | 4 Ohms | 13.5 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.742 L x 0.297 W (18.85mm x 7.55mm) | - | 0.484 (12.30mm) |
|
|
2920L700/24SLERPTC RESET FUSE 7.0A 24V 2920 |
100 | 3.05 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 24V | 50 A | 7 A | 14 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.079 (2.00mm) |
|
MINISMDC014F-2PTC RESET FUSE 60V 140MA 1812 |
3,055 | 0.41 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 60V | 10 A | 140 mA | 280 mA | 8 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.035 (0.89mm) |
|
MICROSMD005F-2PTC RESET FUSE 30V 50MA 1210 |
3,319 | 0.47 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Active | Polymeric | 30V | 10 A | 50 mA | 150 mA | 1.5 s | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.033 (0.85mm) |
|
NANOSMDC016F-2PTC RESET FUSE 48V 160MA 1206 |
23,892 | 0.47 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoSMD | Active | Polymeric | 48V | 10 A | 160 mA | 450 mA | 300 ms | 1.1 Ohms | - | - | - | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.60mm) | - | 0.039 (1.00mm) |
|
SMD050F-2PTC RESET FUSE 60V 500MA 2SMD |
2,705 | 0.47 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 60V | 10 A | 500 mA | 1 A | 4 s | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.125 (3.18mm) |
