| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RGEF600K-2PTC RESET FUSE 16V 6A RADIAL |
908 | 0.79 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 6 A | 10.2 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.382 L x 0.118 W (9.70mm x 3.00mm) | 0.673 (17.10mm) | - |
|

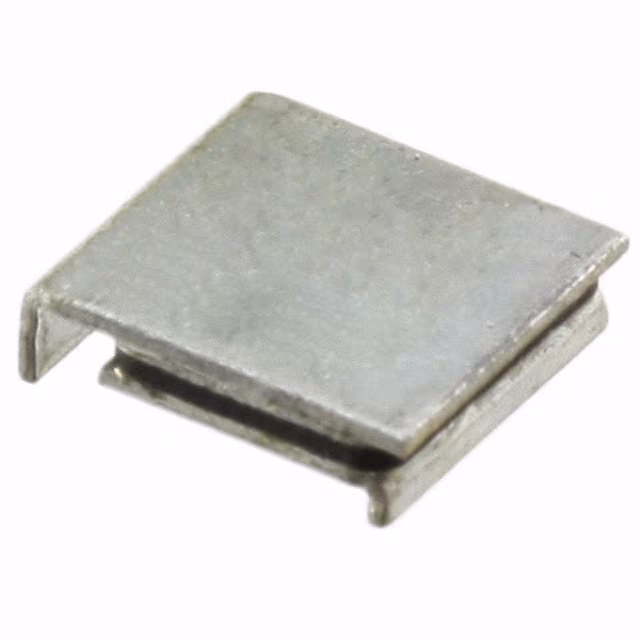

AHS080-2018-2PTC RESET FUSE 16V 800MA 2SMD |
883 | 0.79 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AHS | Active | Polymeric | 16V | 70 A | 800 mA | 2 A | 9 s | 130 mOhms | 550 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.200 L x 0.180 W (5.08mm x 4.58mm) | - | 0.060 (1.52mm) |
|

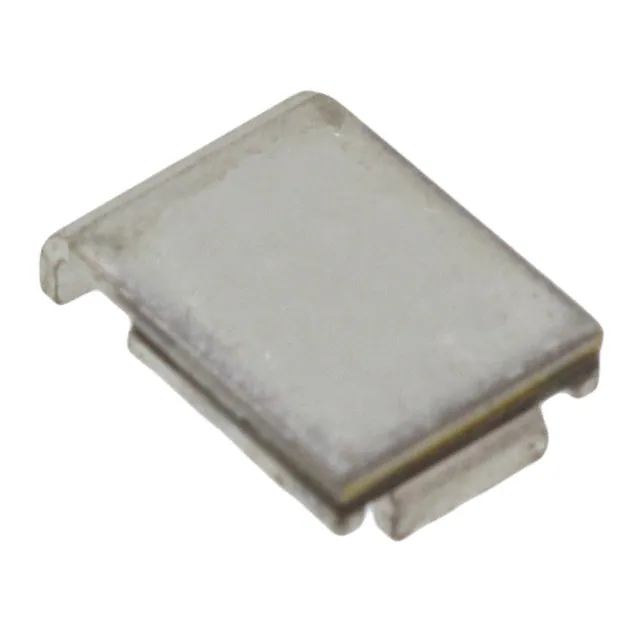

AHS200-2PTC RESET FUSE 16V 2A 2SMD |
639 | 0.79 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AHS | Active | Polymeric | 16V | 70 A | 2 A | 4 A | 13.4 s | 50 mOhms | 140 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
, Concave.jpg)
|
FEMTOSMDC010F-2PTC RESET FUSE 12V 100MA 0603 |
512 | 0.79 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoSMD | Active | Polymeric | 12V | 40 A | 100 mA | 250 mA | 100 ms | 1.7 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.033 (0.85mm) |
|
2920L300DRPTC RESET FUSE 6V 3A 2920 |
191 | 0.79 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 6V | 40 A | 3 A | 5 A | 20 s | 15 mOhms | 48 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.049 (1.25mm) |
|
SMDC075F-2PTC RESET FUSE 33V 750MA 2920 |
169 | 0.79 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | SMDC | Active | Polymeric | 33V | 40 A | 750 mA | 1.5 A | 300 ms | 100 mOhms | 610 mOhms | - | - | - | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.035 (0.90mm) |
|
|
SMDC300F/24-2PTC RESET FUSE 24V 3A 2920 |
133 | 0.79 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | SMDC | Active | Polymeric | 24V | 40 A | 3 A | 6 A | 5 s | - | - | - | - | - | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.043 (1.10mm) |
|
|
RGEF600K-APPTC RESET FUSE 16V 6A RADIAL |
131 | 0.79 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 6 A | 10.2 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.421 L x 0.098 W (10.70mm x 2.50mm) | 0.709 (18.00mm) | - |
|
ASMD150F/33-2PTC RESET FUSE 33V 1.2A 2SMD |
894 | 0.80 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 33V | 40 A | 1.2 A | 2.88 A | 14 s | 68 mOhms | 230 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | 0.118 (3.00mm) | - |
|
16R700GMRPTC RESET FUSE 16V 7A RADIAL |
789 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 16R | Active | Polymeric | 16V | 100 A | 7 A | 11.9 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 L x 0.118 W (11.20mm x 3.00mm) | 0.776 (19.70mm) | - |
|
LVR012K-2PTC RESET FUSE 240V 120MA RADIAL |
717 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 120 mA | 300 mA | 15 s | 3 Ohms | 12 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.327 Dia x 0.150 T (8.30mm x 3.80mm) | 0.508 (12.90mm) | - |
|
|
LVR012S-1PTC RESET FUSE 240V 120MA RADIAL |
495 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 120 mA | 300 mA | 15 s | 3 Ohms | 12 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.327 Dia x 0.150 T (8.30mm x 3.80mm) | 0.430 (10.70mm) | - |
|
MICROSMD200LR-2PTC RESET FUSE 6V 2A 1210 |
387 | 0.80 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LoRho | Obsolete | Polymeric | 6V | 50 A | 2 A | 5 A | 4 s | 6 mOhms | - | - | - | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.039 (1.00mm) |
|
TRF250-183UPTC RESET FUSE 100V 183MA RADIAL |
375 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 100V (250V Int) | 10 A | 183 mA | 685 mA | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 Dia x 0.118 T (6.50mm x 3.00mm) | 0.394 (10.00mm) | - |
|
TRF250-183USPTC RESET FUSE 100V 183MA RADIAL |
340 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 100V (250V Int) | 10 A | 183 mA | 685 mA | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 Dia x 0.118 T (6.50mm x 3.00mm) | 0.256 (6.50mm) | - |
|
LVR025S-2PTC RESET FUSE 240V 250MA RADIAL |
890 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 3.5 A | 250 mA | 560 mA | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.378 L x 0.150 W (9.60mm x 3.80mm) | 0.685 (17.40mm) | - |
|
|
LVR025S-1PTC RESET FUSE 240V 250MA RADIAL |
500 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 3.5 A | 250 mA | 560 mA | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.378 L x 0.150 W (9.60mm x 3.80mm) | 0.685 (17.40mm) | - |
|
|
2920L600/16MRPTC RESET FUSE 16V 6.0A 2920 |
547 | 0.86 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 16V | 40 A | 6 A | 12 A | 2 s | 4 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.063 (1.60mm) |
|
|
MICROSMDCH050F-02PTC RESET FUSE 13.2V 500MA 1210 |
122 | 0.86 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Active | Polymeric | 13.2V | 10 A | 500 mA | 1.5 A | 50 ms | 190 mOhms | 900 mOhms | - | -40°C ~ 125°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.025 (0.64mm) |
|
250R180MRPTC RESET FUSE 60V 180MA RADIAL |
942 | 0.88 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 10 A | 180 mA | 650 mA | 20 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.374 Dia x 0.181 T (9.50mm x 4.60mm) | 0.472 (12.00mm) | - |
