| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHRL1200PTC RESET FUSE 12A 16V RAD |
240 | 1.77 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 12 A | 24 A | 12.5 s | 3.5 mOhms | 5.8 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.685 L x 0.142 W (17.40mm x 3.60mm) | 0.921 (23.40mm) | - |
|
|
AHRL1300PTC RESET FUSE 13A 16V RAD |
217 | 1.77 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 13 A | 26 A | 14 s | 3.3 mOhms | 5.3 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.685 L x 0.142 W (17.40mm x 3.60mm) | 0.976 (24.80mm) | - |
|
|
AHRL1400PTC RESET FUSE 14A 16V RAD |
769 | 2.01 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 14 A | 28 A | 16 s | 3.1 mOhms | 4.8 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.685 L x 0.142 W (17.40mm x 3.60mm) | 1.039 (26.40mm) | - |
|

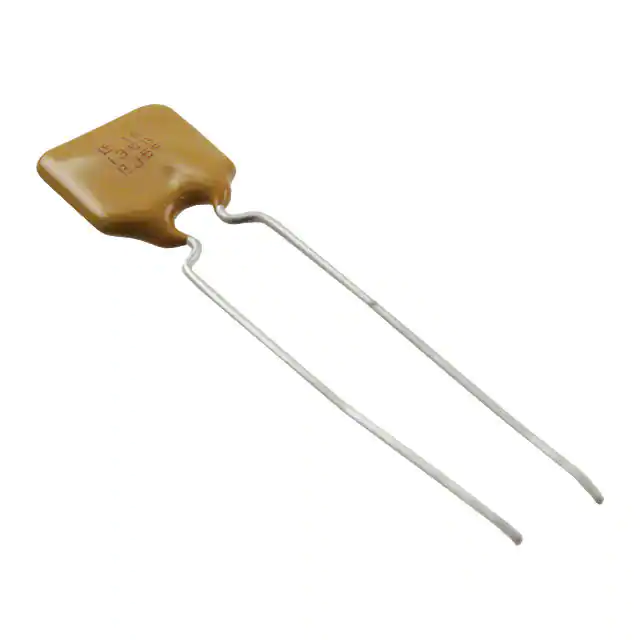

16R135BPRPTC RESET FUSE 16V 1.35A RADIAL |
2,000 | 0.18 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB),Tape & Box (TB) | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 1.35 A | 2.7 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
|
16R135BUPTC RESET FUSE 16V 1.35A RADIAL |
2,432 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 1.35 A | 2.7 A | 4.5 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
|
16R160BPRPTC RESET FUSE 16V 1.6A RADIAL |
2,000 | 0.19 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 1.6 A | 3.2 A | 9 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
|
MICROSMD190LR-2PTC RESET FUSE 6V 1.9A 1210 |
3,000 | 0.24 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LoRho | Obsolete | Polymeric | 6V | 50 A | 1.9 A | 4.9 A | 4 s | 6 mOhms | - | - | - | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.039 (1.00mm) |
|
RXEF010-APPTC RESET FUSE 60V 100MA RADIAL |
801 | 0.45 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.457 (11.60mm) | - |
|
RXEF017-APPTC RESET FUSE 60V 170MA RADIAL |
310 | 0.45 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|
RXEF020S-2PTC RESET FUSE 72V 200MA RADIAL |
365 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.350 Dia x 0.118 T (8.90mm x 3.00mm) | 0.441 (11.20mm) | - |
|
RXEF005-2PTC RESET FUSE 60V 50MA RADIAL |
321 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 50 mA | 100 mA | 5 s | 7.3 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.315 Dia x 0.118 T (8.00mm x 3.00mm) | 0.327 (8.30mm) | - |
|
72R040XUPTC RESET FUSE 72V 400MA RADIAL |
208 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 72R | Obsolete | Polymeric | 72V | 40 A | 400 mA | 800 mA | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.299 Dia x 0.122 T (7.60mm x 3.10mm) | 0.532 (13.50mm) | - |
|
RUEF900K-2PTC RESET FUSE 30V 9A RADIAL |
3,206 | 1.14 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 9 A | 18 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.949 L x 0.118 W (24.10mm x 3.00mm) | 1.220 (31.00mm) | - |
|
|
RUEF900KPTC RESET FUSE 30V 9A RADIAL |
252 | 1.11 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 9 A | 18 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.949 L x 0.118 W (24.10mm x 3.00mm) | 1.220 (31.00mm) | - |
|
60R025XPRPTC RESET FUSE 60V 250MA RADIAL |
575 | 0.48 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 250 mA | 500 mA | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
60R020XPRPTC RESET FUSE 60V 200MA RADIAL |
445 | 0.48 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.461 (11.70mm) | - |
|
16R1100GMRPTC RESET FUSE 16V 11A RADIAL |
2,129 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 11 A | 18.7 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.024 (26.00mm) | - |
|
|
16R1100GFPTC RESET FUSE 16V 11A RADIAL |
400 | 0.48 |
RFQ |
Datasheet |
Radial, Disc | Bulk,Bulk | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 11 A | 18.7 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.024 (26.00mm) | - |
|
RXEF040-APPTC RESET FUSE 72V 400MA RADIAL |
168 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 400 mA | 800 mA | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.299 Dia x 0.118 T (7.60mm x 3.00mm) | 0.532 (13.50mm) | - |
|
MINISMDC125F/16-2PTC RESET FUSE 16V 1.25A 1812 |
697 | 0.52 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 16V | 100 A | 1.25 A | 2.5 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.019 (0.48mm) |
