| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RGEF300-1PTC RESET FUSE 16V 3A RADIAL |
589 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 3 A | 5.1 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.260 L x 0.098 W (6.60mm x 2.50mm) | 0.433 (11.00mm) | - |
|
RGEF400KPTC RESET FUSE 16V 4A RADIAL |
562 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 4 A | 6.8 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.331 L x 0.098 W (8.40mm x 2.50mm) | 0.504 (12.80mm) | - |
|
16R300GPRPTC RESET FUSE 16V 3A RADIAL |
544 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 16R | Active | Polymeric | 16V | 100 A | 3 A | 5.1 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.280 L x 0.118 W (7.10mm x 3.00mm) | 0.433 (11.00mm) | - |
|
RXEF185-APPTC RESET FUSE 72V 1.85A RADIAL |
271 | 0.66 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.689 Dia x 0.118 T (17.50mm x 3.00mm) | 0.882 (22.40mm) | - |
|
RXEF185K-APPTC RESET FUSE 72V 1.85A RADIAL |
218 | 0.66 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.660 Dia x 0.118 T (16.76mm x 3.00mm) | 0.906 (23.00mm) | - |
|
RUSBF185-APPTC RESET FUSE 16V 1.85A RADIAL |
843 | 0.67 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUSBF | Active | Polymeric | 16V | 40 A | 1.85 A | 3.7 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
|
0603L200SLYRPTC RESET FUSE 6V 2A 0603 |
4,000 | 0.68 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2 A | 4 A | 1 s | 5 mOhms | 50 mOhms | - | - | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.039 (1.00mm) |
|
|
RGEF400K-APPTC RESET FUSE 16V 4A RADIAL |
372 | 0.68 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 4 A | 6.8 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.331 L x 0.098 W (8.40mm x 2.50mm) | 0.504 (12.80mm) | - |
|
|
RUEF400-APPTC RESET FUSE 30V 4A RADIAL |
769 | 0.71 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 4 A | 8 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.760 (19.30mm) | - |
|
PICOSMDC110S-2PTC RESET FUSE 6V 1.1A 0805 |
525 | 0.72 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, picoSMD | Active | Polymeric | 6V | 40 A | 1.1 A | 2.2 A | 200 ms | 50 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.055 W (2.10mm x 1.40mm) | - | 0.047 (1.20mm) |
|
|
PICOSMDC075S-2PTC RESET FUSE 6V 750MA 0805 |
132 | 0.72 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 6V | 40 A | 750 mA | 1.5 A | 200 ms | 100 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.055 W (2.10mm x 1.40mm) | - | 0.037 (0.93mm) |
|

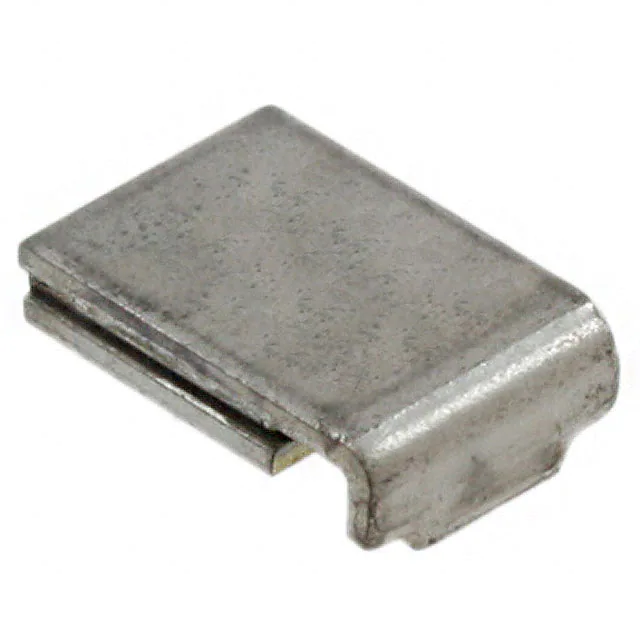

AHS120-2PTC RESET FUSE 16V 1.2A 2SMD |
161 | 0.73 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AHS | Active | Polymeric | 16V | 50 A | 1.2 A | 2.3 A | 2 s | 150 mOhms | 340 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.118 (3.00mm) |
.jpg)
|
NANOSMD500LR-2PTC RESET FUSE 6V 5A 1206 |
417 | 0.74 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Obsolete | Polymeric | 6V | 50 A | 5 A | 10 A | 2 s | 2 mOhms | 8 mOhms | - | -40°C ~ 80°C | - | Surface Mount | 0.127 L x 0.063 W (3.22mm x 1.61mm) | - | 0.032 (0.80mm) |
|
16R250BPRPTC RESET FUSE 16V 2.5A RADIAL |
306 | 0.74 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 2.5 A | 5 A | 40 s | 20 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.720 (18.30mm) | - |
|
RGEF500-1PTC RESET FUSE 16V 5A RADIAL |
760 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.390 L x 0.098 W (9.90mm x 2.50mm) | 0.563 (14.30mm) | - |
|
ASMD125F-2PTC RESET FUSE 16V 1.04A 2SMD |
600 | 0.75 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 16V | 40 A | 1.04 A | 2.46 A | 20 s | 57 mOhms | 250 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.118 (3.00mm) |
|
|
RGEF500-APPTC RESET FUSE 16V 5A RADIAL |
152 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.390 L x 0.098 W (9.90mm x 2.50mm) | 0.563 (14.30mm) | - |
|
LVR008NK-2PTC RESET FUSE 240V 80MA RADIAL |
990 | 0.76 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 80 mA | 190 mA | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.283 Dia x 0.181 T (7.20mm x 4.60mm) | 0.488 (12.40mm) | - |
|
|
LVR008NS-1PTC RESET FUSE 240V 80MA RADIAL |
3,027 | 0.76 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 80 mA | 190 mA | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.283 Dia x 0.181 T (7.20mm x 4.60mm) | 0.402 (10.20mm) | - |
|
RGEF700KPTC RESET FUSE 16V 7A RADIAL |
300 | 0.78 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 7 A | 11.9 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.421 L x 0.098 W (10.70mm x 2.50mm) | 0.874 (22.20mm) | - |
