| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
250R120ZRPTC RESET FUSE 60V 120MA RADIAL |
910 | 0.88 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
|
250R120-R2ZRPTC RESET FUSE 60V 120MA RADIAL |
647 | 0.88 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 2.5 s | 8 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
RUEF600K-APPTC RESET FUSE 30V 6A RADIAL |
984 | 0.89 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 1.032 (26.20mm) | - |
|
|
RUEF600-APPTC RESET FUSE 30V 6A RADIAL |
255 | 0.89 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.949 (24.10mm) | - |
|
|
RUEF600K-2PTC RESET FUSE 30V 6A RADIAL |
2,748 | 0.89 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 1.032 (26.20mm) | - |
|
30R700UMRPTC RESET FUSE 30V 7A RADIAL |
735 | 0.91 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 7 A | 14 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.752 L x 0.118 W (19.10mm x 3.00mm) | 1.126 (28.60mm) | - |
|
AGRF900PTC RESET FUSE 16V 9A RADIAL |
367 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 9 A | 16.5 A | 6 s | 4.1 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.906 (23.00mm) | - |
|
LVR040S-1PTC RESET FUSE 240V 400MA RADIAL |
365 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 5.5 A | 400 mA | 900 mA | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.453 L x 0.150 W (11.50mm x 3.80mm) | 0.768 (19.50mm) | - |
|
RGEF900-1PTC RESET FUSE 16V 9A RADIAL |
224 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 9 A | 15.3 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.532 L x 0.100 W (13.50mm x 2.50mm) | 0.854 (21.70mm) | - |
|
|
AGRF900-2PTC RESET FUSE 16V 9A RADIAL |
920 | 0.98 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 9 A | 16.5 A | 6 s | 4.1 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.906 (23.00mm) | - |
|
1812L260/12MRPTC RESET FUSE 12V 2.6A 1812 |
2,398 | 0.98 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 12V | 100 A | 2.6 A | 5 A | 5 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.053 (1.34mm) |
|
16R1200GHPTC RESET FUSE 16V 12A RADIAL |
143 | 1.01 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 12 A | 20.4 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.689 L x 0.138 W (17.50mm x 3.50mm) | 1.102 (28.00mm) | - |
|
|
AGRF800PTC RESET FUSE 16V 8A RADIAL |
500 | 1.02 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 8 A | 15 A | 5.5 s | 4.9 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.500 L x 0.118 W (12.70mm x 3.00mm) | 0.874 (22.20mm) | - |
|

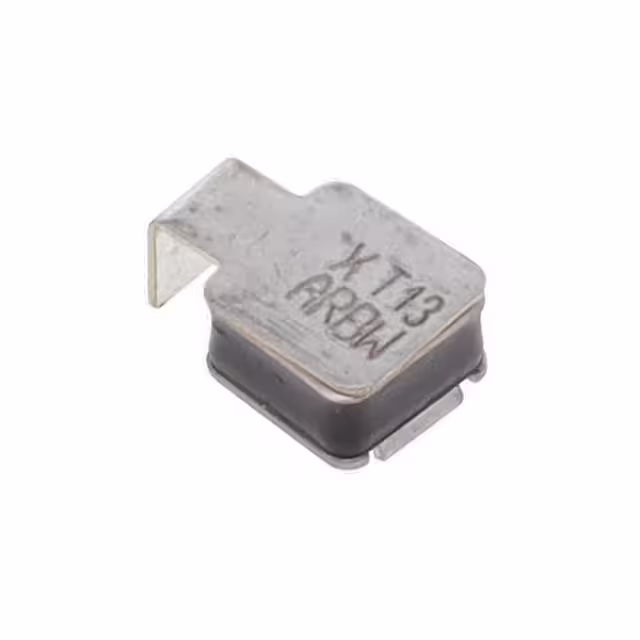

TSL250-130F-2PTC RESET FUSE 60V 130MA 2SMD |
470 | 1.05 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TSL250 | Active | Polymeric | 60V (250V Int) | 3 A | 130 mA | 260 mA | 2 s | 4 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.287 L x 0.199 W (7.30mm x 5.05mm) | 0.146 (3.70mm) | - |
|
TS250-130F-RC-B-0.5-2PTC RESET FUSE 60V 130MA 2SMD |
213 | 1.05 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TS250 | Active | Polymeric | 60V (600V Int) | 1 A | 130 mA | 260 mA | 2 s | 7 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.352 L x 0.291 W (8.95mm x 7.40mm) | - | 0.134 (3.40mm) |
|
TSV250-130F-2PTC RESET FUSE 60V 130MA 2SMD |
146 | 1.05 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TS250 | Active | Polymeric | 60V (250V Int) | 3 A | 130 mA | 260 mA | 2 s | 4 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.240 L x 0.272 W (6.10mm x 6.90mm) | - | 0.126 (3.20mm) |
|
AHRF750PTC RESET FUSE 16V 7.5A RADIAL |
500 | 1.07 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 7.5 A | 14.8 A | 8 s | 7.4 mOhms | 22 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.925 (23.50mm) | - |
|
|
RHEF800PTC RESET FUSE 16V 8A RADIAL |
620 | 1.09 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 8 A | 15 A | 8 s | 8 mOhms | 20 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.886 (22.50mm) | - |
|
RGEF1000-2PTC RESET FUSE 16V 10A RADIAL |
158 | 1.10 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 10 A | 17 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.098 W (16.50mm x 2.50mm) | 0.992 (25.20mm) | - |
|

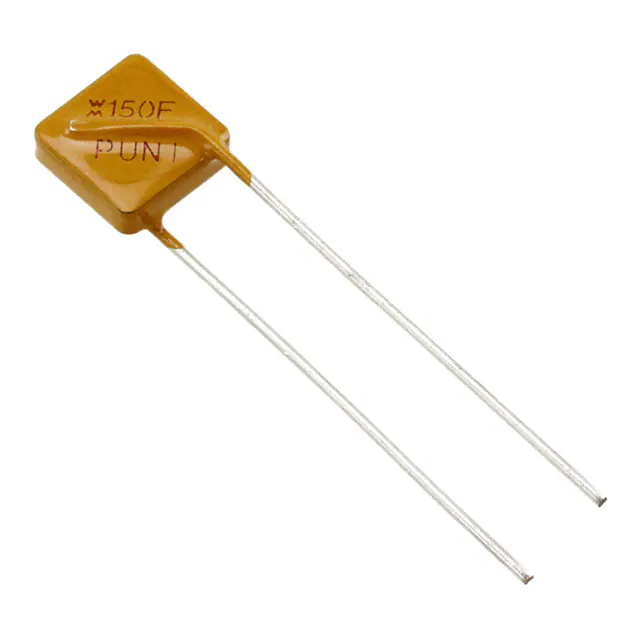

TRF600-150S-2PTC RESET FUSE 250V 150MA RADIAL |
711 | 1.18 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 40 A | 150 mA | 300 mA | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - |
