| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2920L125PRPTC RESET FUSE 15V 1.25A 2920 |
2,985 | 0.67 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 15V | 40 A | 1.25 A | 2.5 A | 2 s | 70 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.049 (1.25mm) |
|
MINISMDC260F/13.2-2PTC RESET FUSE 13.2V 2.6A 1812 |
3,013 | 0.68 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 13.2V | 100 A | 2.6 A | 5 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.060 (1.52mm) |
|
MINIASMDC260F/16-2PTC RESET FUSE 16V 2.6A 1812 |
2,958 | 0.72 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Active | Polymeric | 16V | 100 A | 2.6 A | 5 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.060 (1.52mm) |
, Concave.jpg)
|
FEMTOSMDC008F-2PTC RESET FUSE 12V 80MA 0603 |
2,151 | 0.79 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoSMDC | Active | Polymeric | 12V | 40 A | 80 mA | 200 mA | 100 ms | 2.8 Ohms | 14 Ohms | - | - | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.033 (0.85mm) |
|
30R090UUPTC RESET FUSE 30V 900MA RADIAL |
3,353 | 0.49 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 900 mA | 1.8 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.480 (12.20mm) | - |
|
1812L260/16MRPTC RESET FUSE 16V 2.6A 1812 |
2,749 | 1.10 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 16V | 100 A | 2.6 A | 5 A | 5 s | 15 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.186 L x 0.131 W (4.72mm x 3.33mm) | - | 0.079 (2.00mm) |
|
RXEF135PTC RESET FUSE 72V 1.35A RADIAL |
3,719 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.571 Dia x 0.118 T (14.50mm x 3.00mm) | 0.752 (19.10mm) | - |
|
|
FEMTOSMDC020F-2PTC RESET FUSE 9V 200MA 0603 |
2,145 | 0.82 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoSMDC | Active | Polymeric | 9V | 40 A | 200 mA | 450 mA | 100 ms | 700 mOhms | 3 Ohms | - | - | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.030 (0.75mm) |
|
TRF250-120U-2PTC RESET FUSE 60V 120MA RADIAL |
3,396 | 0.86 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|
30R600UMRPTC RESET FUSE 30V 6A RADIAL |
2,283 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 1.055 (26.80mm) | - |
|
ASMDC300F/24-2PTC RESET FUSE 24V 3A 2SMD |
3,225 | 0.90 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 24V | 40 A | 3 A | 6 A | 5 s | 15 mOhms | 72 mOhms | - | - | PS300, PS400 | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.028 (0.71mm) |
|
RXEF250K-2PTC RESET FUSE 72V 2.5A RADIAL |
4,028 | 0.87 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 2.5 A | 5 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.819 Dia x 0.118 T (20.80mm x 3.00mm) | 1.000 (25.40mm) | - |
|
RXEF300-2PTC RESET FUSE 72V 3A RADIAL |
3,275 | 0.88 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.941 Dia x 0.118 T (23.90mm x 3.00mm) | 1.126 (28.60mm) | - |
|

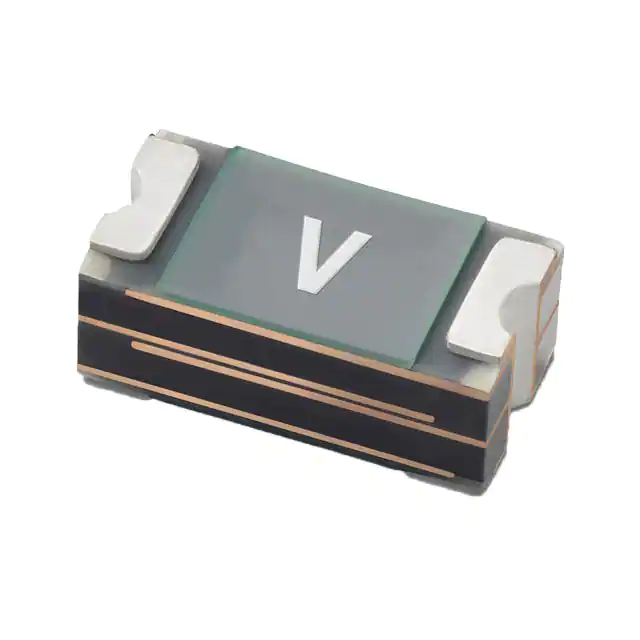

NANOASMDCH035F/30-2PTC RESET FUSE 30V 350MA 1206 |
2,341 | 1.10 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 30V | 20 A | 350 mA | 1.75 A | 200 ms | 400 mOhms | 2.2 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.126 L x 0.062 W (3.20mm x 1.58mm) | - | 0.045 (1.14mm) |
|
30R250UUPTC RESET FUSE 30V 2.5A RADIAL |
2,635 | 0.55 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 2.5 A | 5 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.720 (18.30mm) | - |
|
60R185XFPTC RESET FUSE 60V 1.85A RADIAL |
2,151 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.660 Dia x 0.122 T (16.76mm x 3.10mm) | 0.906 (23.00mm) | - |
|
TSV250-130F-B-0.5-2PTC RESET FUSE 60V 130MA 2SMD |
3,056 | 1.17 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TSV250 | Active | Polymeric | 60V (250V Int) | 3 A | 130 mA | 260 mA | 2 s | 4 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.240 L x 0.272 W (6.10mm x 6.90mm) | - | 0.126 (3.20mm) |
|
LVR008NSPTC RESET FUSE 240V 80MA RADIAL |
3,792 | 0.72 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 80 mA | 190 mA | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.283 Dia x 0.181 T (7.20mm x 4.60mm) | 0.402 (10.20mm) | - |
|

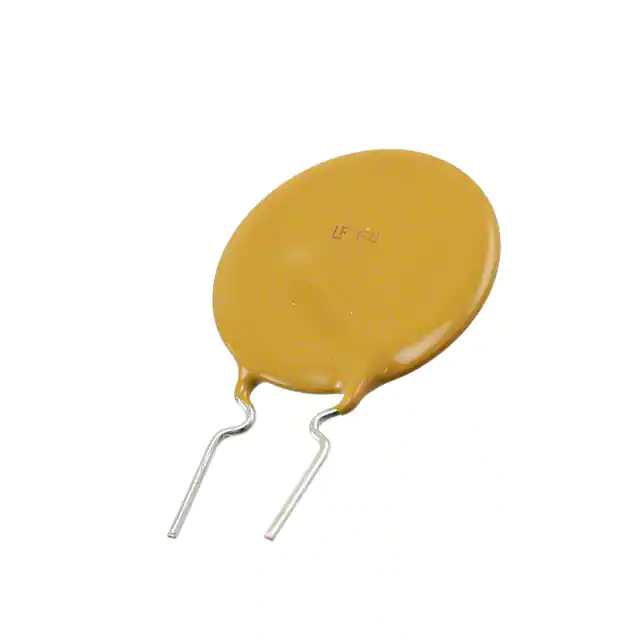

60R300XFPTC RESET FUSE 60V 3A RADIAL |
2,412 | 0.73 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.910 Dia x 0.122 T (23.11mm x 3.10mm) | 1.154 (29.30mm) | - |
|
|
30R600UFPTC RESET FUSE 30V 6A RADIAL |
3,784 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 1.055 (26.80mm) | - |
