| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
60R040XPRPTC RESET FUSE 60V 400MA RADIAL |
705 | 0.53 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 400 mA | 800 mA | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.299 Dia x 0.122 T (7.60mm x 3.10mm) | 0.532 (13.50mm) | - |
|
RXEF300-APPTC RESET FUSE 72V 3A RADIAL |
845 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.941 Dia x 0.118 T (23.90mm x 3.00mm) | 1.126 (28.60mm) | - |
|
RGEF800-1PTC RESET FUSE 16V 8A RADIAL |
461 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 8 A | 13.6 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.480 L x 0.098 W (12.20mm x 2.50mm) | 0.823 (20.90mm) | - |
|
LVR040S-2PTC RESET FUSE 240V 400MA RADIAL |
395 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 5.5 A | 400 mA | 900 mA | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.453 L x 0.150 W (11.50mm x 3.80mm) | 0.768 (19.50mm) | - |
|
RUEF900-2PTC RESET FUSE 30V 9A RADIAL |
729 | 1.14 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 9 A | 18 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.949 L x 0.118 W (24.10mm x 3.00mm) | 1.142 (29.00mm) | - |
|
MINIASMDC200F/16-2PTC RESET FUSE 16V 2A 1812 |
892 | 1.16 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Active | Polymeric | 16V | 40 A | 2 A | 4 A | 5 s | 20 mOhms | 85 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.048 (1.22mm) |
|
RKEF065-APPTC RESET FUSE 60V 650MA RADIAL |
346 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 650 mA | 1.3 A | 1 s | 250 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.280 L x 0.140 W (7.10mm x 3.56mm) | 0.480 (12.20mm) | - |
|
|
RKEF065PTC RESET FUSE 60V 650MA RADIAL |
2,132 | 0.50 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 650 mA | 1.3 A | 1 s | 250 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.280 L x 0.140 W (7.10mm x 3.56mm) | 0.480 (12.20mm) | - |
|

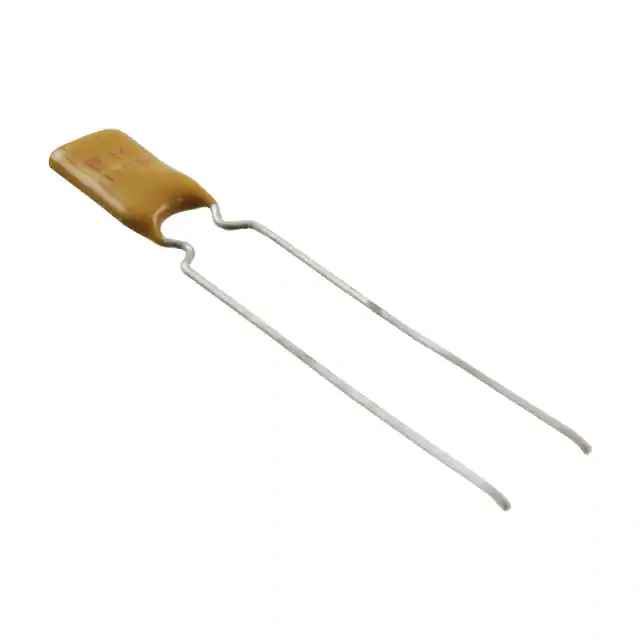

16R110BPRPTC RESET FUSE 16V 1.1A RADIAL |
268 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 1.1 A | 2.2 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.559 (14.20mm) | - |
|
RXEF110-APPTC RESET FUSE 72V 1.1A RADIAL |
780 | 0.56 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.504 Dia x 0.118 T (12.80mm x 3.00mm) | 0.689 (17.50mm) | - |
|
RXEF135-APPTC RESET FUSE 72V 1.35A RADIAL |
999 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.571 Dia x 0.118 T (14.50mm x 3.00mm) | 0.752 (19.10mm) | - |
|
30R185UPRPTC RESET FUSE 30V 1.85A RADIAL |
311 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
|
|
SMDC185F/33-2PTC RESET FUSE 33V 1.85A 2920 |
590 | 0.59 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | SMDC | Active | Polymeric | 33V | 40 A | 1.85 A | 3.7 A | 2.5 s | - | - | - | - | - | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.047 (1.20mm) |
|
72R065XPRPTC RESET FUSE 72V 650MA RADIAL |
675 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 650 mA | 1.3 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.370 Dia x 0.122 T (9.40mm x 3.10mm) | 0.571 (14.50mm) | - |
|
|
MINIASMDC110F/16-2PTC RESET FUSE 16V 1.1A 1812 |
993 | 0.61 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Active | Polymeric | 16V | 100 A | 1.1 A | 2.2 A | 300 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.019 (0.48mm) |
|

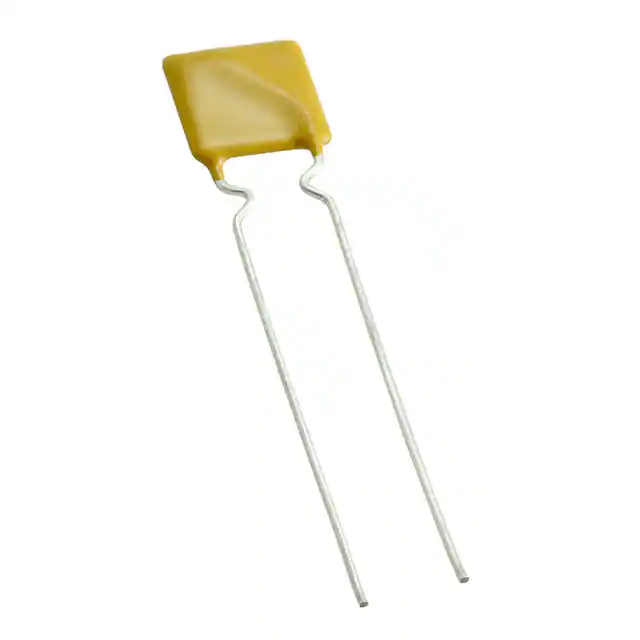

RGEF250-APPTC RESET FUSE 16V 2.5A RADIAL |
568 | 0.62 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 2.5 A | 4.7 A | 5 s | 22 mOhms | 53 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.504 (12.80mm) | - |
|
|
RHEF1100PTC RESET FUSE 16V 11A RADIAL |
3,250 | 1.45 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 11 A | 20 A | 11 s | 5.5 mOhms | 13 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.827 L x 0.118 W (21.00mm x 3.00mm) | 1.028 (26.10mm) | - |
|

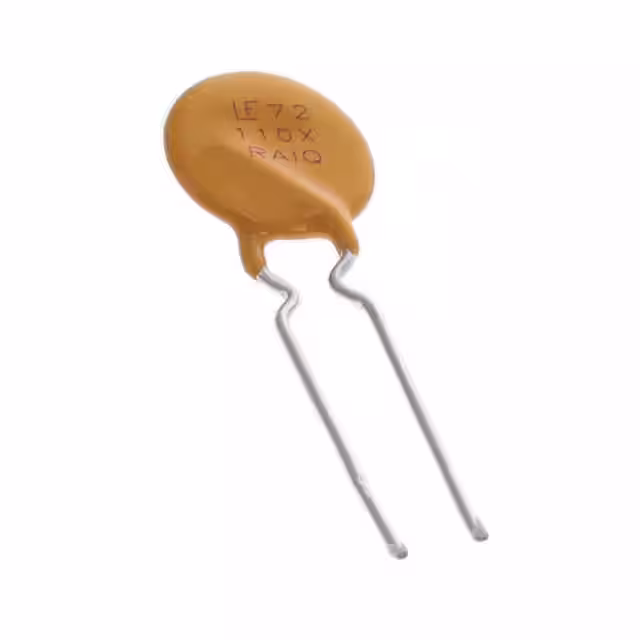

72R110XMRPTC RESET FUSE 72V 1.1A RADIAL |
877 | 0.63 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.512 Dia x 0.122 T (13.00mm x 3.10mm) | 0.717 (18.20mm) | - |
|
60R185XMRPTC RESET FUSE 60V 1.85A RADIAL |
710 | 0.63 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.660 Dia x 0.122 T (16.76mm x 3.10mm) | 0.906 (23.00mm) | - |
|
SMD030F-2018-2PTC RESET FUSE 60V 300MA 2SMD |
991 | 0.64 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 60V | 20 A | 300 mA | 800 mA | 1.5 s | 500 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.200 L x 0.180 W (5.08mm x 4.58mm) | - | 0.070 (1.78mm) |
