| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXEF090SPTC RESET FUSE 72V 900MA RADIAL |
500 | 0.53 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 Dia x 0.118 T (11.20mm x 3.00mm) | 0.622 (15.80mm) | - |
|

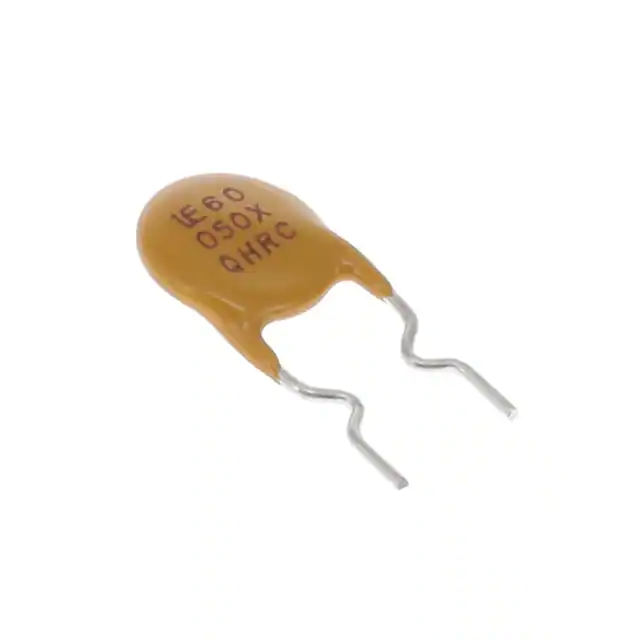

60R050XUL25PTC 60V POLYFUSE RAD LEADS 2.5CM |
480 | 0.53 |
RFQ |
Radial, Disc | Bulk | POLY-FUSE® 60R | Active | Polymeric | 60V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.311 Dia x 0.122 T (7.90mm x 3.10mm) | 0.539 (13.70mm) | - | |
|
AGRF1000-2PTC RESET FUSE 16V 10A RADIAL |
1,000 | 1.21 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 10 A | 18.5 A | 7 s | 3.4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 1.012 (25.70mm) | - |
|
AHRF800-2PTC RESET FUSE 16V 8A RADIAL |
1,000 | 1.23 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 8 A | 15 A | 8 s | 7.2 mOhms | 20 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.118 L x 0.118 W (3.00mm x 3.00mm) | 0.886 (22.50mm) | - |
|
AHRF1000-2PTC RESET FUSE 16V 10A RADIAL |
1,000 | 1.53 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 10 A | 20.5 A | 10.5 s | 5.1 mOhms | 15 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.043 (26.50mm) | - |
|
AHRF1300-2PTC RESET FUSE 16V 13A RADIAL |
1,000 | 1.61 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 13 A | 27 A | 15 s | 3.4 mOhms | 10 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.925 L x 0.138 W (23.50mm x 3.50mm) | 1.130 (28.70mm) | - |
|

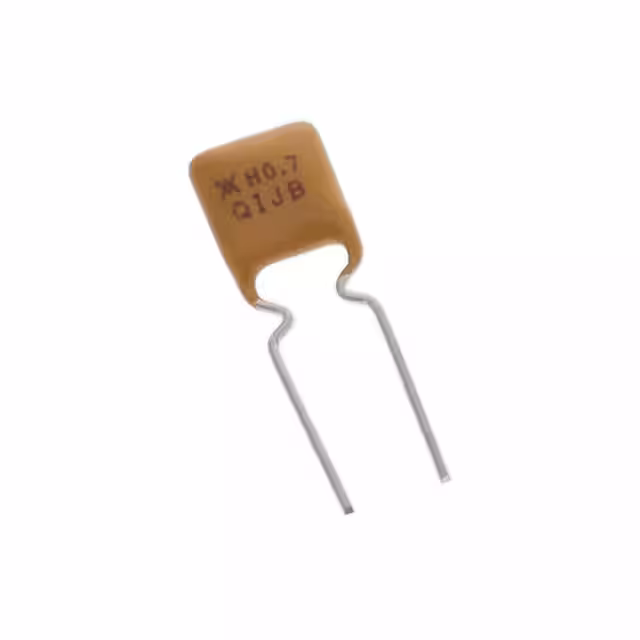

AHRF070PTC RESET FUSE 30V 700MA RADIAL |
500 | 0.74 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 30V | 40 A | 700 mA | 1.4 A | 3.2 s | 230 mOhms | 800 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.272 L x 0.130 W (6.90mm x 3.30mm) | 0.425 (10.80mm) | - |
|
|
MINIASMDC260F/12-2PTC RESET FUSE 12V 2.6A 1812 |
490 | 0.75 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Bulk | PolySwitch®, miniASMD | Active | Polymeric | 12V | 100 A | 2.6 A | 5 A | 5 s | 15 mOhms | 47 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.060 (1.52mm) |
|
AHRF300PTC RESET FUSE 16V 3A RADIAL |
300 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 3 A | 6.5 A | 5 s | 29 mOhms | 79 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.346 L x 0.118 W (8.80mm x 3.00mm) | 0.543 (13.80mm) | - |
|
RUEF600KPTC RESET FUSE 30V 6A RADIAL |
193 | 0.85 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 1.032 (26.20mm) | - |
|
AHRF450S-1PTC RESET FUSE 16V 4.5A RADIAL |
500 | 0.91 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 4.5 A | 8.7 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.409 Dia x 0.122 T (10.40mm x 3.10mm) | 0.563 (14.30mm) | - |
|

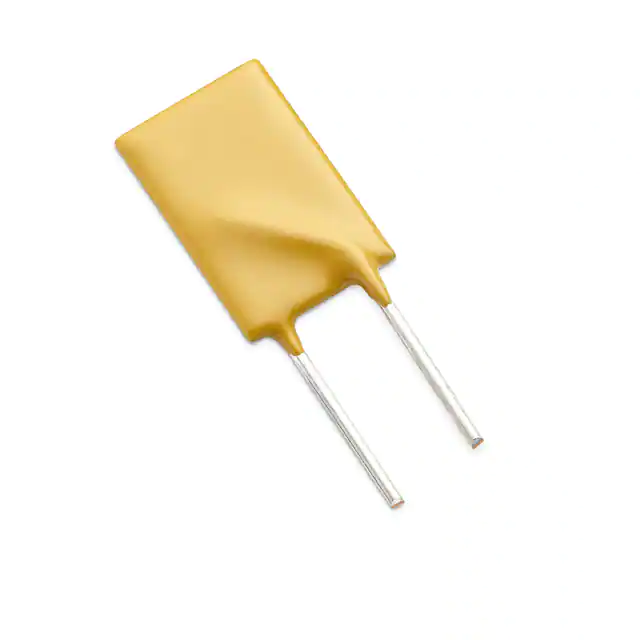

AHRL400PTC RESET FUSE 4A 16V RAD |
450 | 0.92 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 50 A | 4 A | 8 A | 5 s | 16 mOhms | 28 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.331 L x 0.118 W (8.40mm x 3.00mm) | 0.528 (13.40mm) | - |
|
|
AHRL350PTC RESET FUSE 3.5A 16V RAD |
395 | 0.92 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 50 A | 3.5 A | 7 A | 4.5 s | 18 mOhms | 32 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.331 L x 0.118 W (8.40mm x 3.00mm) | 0.488 (12.40mm) | - |
|
RHEF700PTC RESET FUSE 16V 7A RADIAL |
491 | 0.93 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 7 A | 13 A | 7 s | 10 mOhms | 25 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.862 (21.90mm) | - |
|
|
AHRL450PTC RESET FUSE 4.5A 16V RAD |
470 | 0.96 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 50 A | 4.5 A | 9 A | 5.5 s | 14.5 mOhms | 26 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.331 L x 0.118 W (8.40mm x 3.00mm) | 0.555 (14.10mm) | - |
|
1206L012/48WRPTC RESET FUSE 48V 125MA 1206 |
756 | 0.57 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 48V | 10 A | 125 mA | 290 mA | 200 ms | 1.5 Ohms | 6 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.049 (1.25mm) |
|
MINIASMDC010F-2PTC RESET FUSE 60V 100MA 1812 |
408 | 0.57 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Active | Polymeric | 60V | 40 A | 100 mA | 300 mA | 5 s | 700 mOhms | 12.7 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.035 (0.89mm) |
|
|
1206L025/24YRPTC RESET FUSE 24V 25MA 1206 |
307 | 0.57 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 24V | 100 A | 250 mA | 550 mA | 80 ms | 550 mOhms | 2.3 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.039 (1.00mm) |
|
RXEF090-APPTC RESET FUSE 72V 900MA RADIAL |
281 | 0.57 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 Dia x 0.118 T (11.20mm x 3.00mm) | 0.622 (15.80mm) | - |
|
PICOASMDC012S-2PTC RESET FUSE 15V 120MA 0805 |
956 | 0.82 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, picoASMDC | Active | Polymeric | 15V | 20 A | 120 mA | 300 mA | 100 ms | 1.5 Ohms | 9 Ohms | - | - | PS300, PS400 | Surface Mount | 0.083 L x 0.055 W (2.10mm x 1.40mm) | - | 0.027 (0.68mm) |
