| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

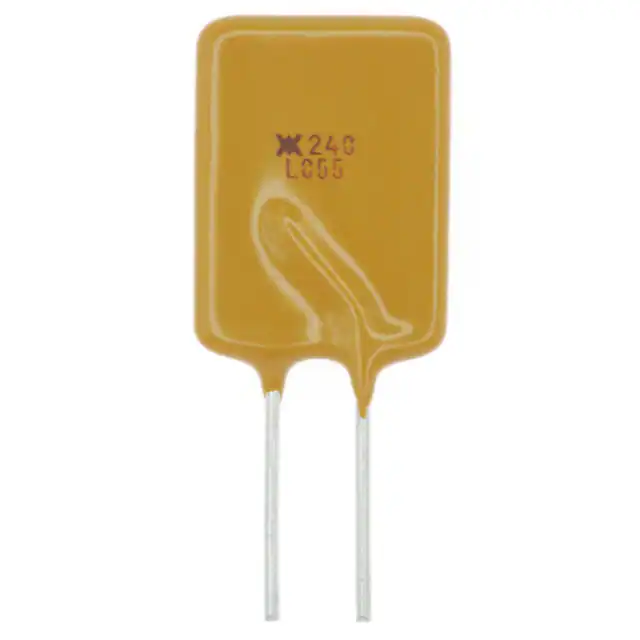

LVR055SPTC RESET FUSE 240V 550MA RADIAL |
305 | 1.27 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 7 A | 550 mA | 1.25 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.854 (21.70mm) | - |
|
RKEF500-1PTC RESET FUSE 60V 5A RADIAL |
364 | 1.41 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 5 A | 10 A | 28 s | 12 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.949 L x 0.118 W (24.10mm x 3.00mm) | 1.142 (29.00mm) | - |
|

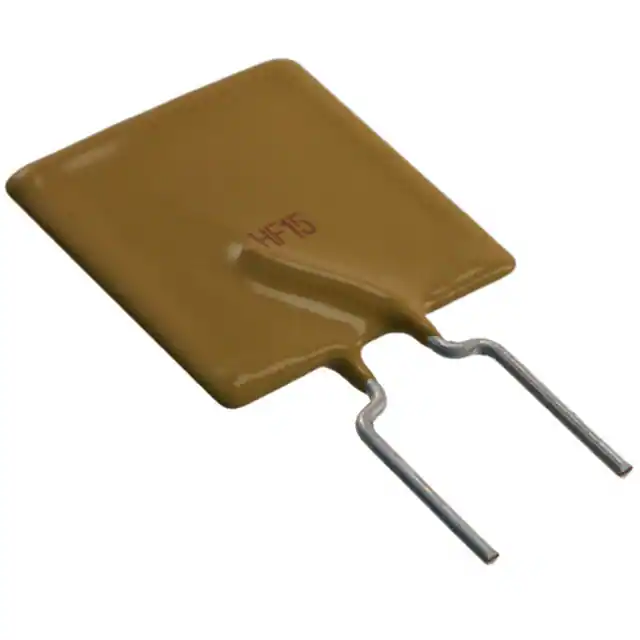

AHRF1500PTC RESET FUSE 16V 15A RADIAL |
206 | 1.86 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 15 A | 33 A | 20 s | 2.7 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.925 L x 0.138 W (23.50mm x 3.50mm) | 1.130 (28.70mm) | - |
|
RGEF1100-2PTC RESET FUSE 16V 11A RADIAL |
1,000 | 1.10 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 11 A | 18.7 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.669 L x 0.098 W (17.00mm x 2.50mm) | 1.024 (26.00mm) | - |
|
RUEF185SPTC RESET FUSE 30V 1.85A RADIAL |
410 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.118 T (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
|
60R075XUPTC RESET FUSE 60V 750MA RADIAL |
382 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.122 T (10.20mm x 3.10mm) | 0.591 (15.00mm) | - |
|
60R065XUPTC RESET FUSE 60V 650MA RADIAL |
107 | 0.51 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 650 mA | 1.3 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.370 Dia x 0.122 T (9.40mm x 3.10mm) | 0.571 (14.50mm) | - |
|
RUEF250SPTC RESET FUSE 30V 2.5A RADIAL |
980 | 0.52 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 2.5 A | 5 A | 10.3 s | 20 mOhms | 70 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.720 (18.30mm) | - |
|
TRF250-120TPTC RESET FUSE 60V 120MA RADIAL |
345 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 1.2 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
LVR033SPTC RESET FUSE 240V 330MA RADIAL |
189 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 4.5 A | 330 mA | 740 mA | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.449 L x 0.150 W (11.40mm x 3.80mm) | 0.650 (16.50mm) | - |
|
250R080UPTC RESET FUSE 60V 80MA RADIAL |
342 | 0.85 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 3 A | 80 mA | 160 mA | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.228 Dia x 0.181 T (5.80mm x 4.60mm) | 0.390 (9.90mm) | - |
|
RGEF800KPTC RESET FUSE 16V 8A RADIAL |
871 | 0.91 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 8 A | 13.6 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.480 L x 0.098 W (12.20mm x 2.50mm) | 0.823 (20.90mm) | - |
|
RXEF010SPTC RESET FUSE 60V 100MA RADIAL |
180 | 0.41 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.457 (11.60mm) | - |
|
RXEF040SPTC RESET FUSE 72V 400MA RADIAL |
410 | 0.47 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 400 mA | 800 mA | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.299 Dia x 0.118 T (7.60mm x 3.00mm) | 0.532 (13.50mm) | - |
|
RUEF135SPTC RESET FUSE 30V 1.35A RADIAL |
657 | 0.49 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.35 A | 2.7 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
|
RGEF250PTC RESET FUSE 16V 2.5A RADIAL |
3,727 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 2.5 A | 4.7 A | 5 s | 22 mOhms | 53 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.504 (12.80mm) | - |
|
RXEF160KPTC RESET FUSE 72V 1.6A RADIAL |
851 | 0.59 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.6 A | 3.2 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.642 Dia x 0.118 T (16.30mm x 3.00mm) | 0.819 (20.80mm) | - |
|
|
RGEF300KPTC RESET FUSE 16V 3A RADIAL |
341 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 3 A | 5.1 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.260 L x 0.098 W (6.60mm x 2.50mm) | 0.535 (13.60mm) | - |
|

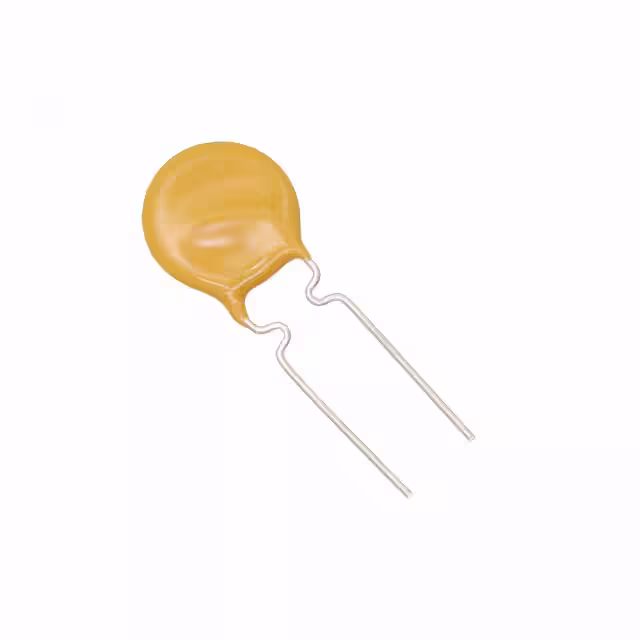

AHRF100PTC RESET FUSE 30V 1A RADIAL |
811 | 0.74 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 30V | 40 A | 1 A | 1.9 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.382 Dia x 0.118 T (9.70mm x 3.00mm) | 0.535 (13.60mm) | - |
|

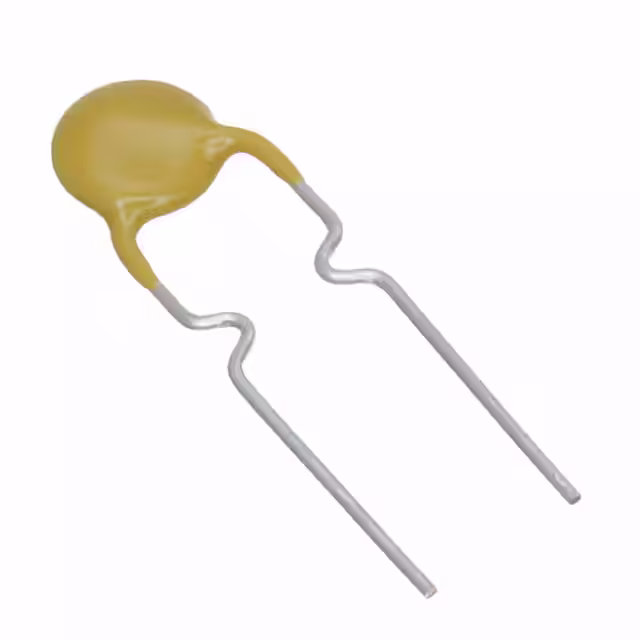

AHRF050PTC RESET FUSE 30V 500MA RADIAL |
185 | 0.74 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 30V | 40 A | 500 mA | 1 A | 3 s | 350 mOhms | 1.1 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.291 Dia x 0.130 T (7.40mm x 3.30mm) | 0.500 (12.70mm) | - |
