| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
TRF250-120-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,461 | 0.85 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|
MICROSMDCH010F-02PTC RESET FUSE 30V 100MA 1210 |
2,496 | 0.86 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Active | Polymeric | 30V | 10 A | 100 mA | 350 mA | 100 ms | 1.2 Ohms | 11 Ohms | - | -40°C ~ 125°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.038 (0.97mm) |
|
0805L075WRPTC RESET FUSE 6V 750MA 0805 |
1,059 | 0.86 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0805L | Active | Polymeric | 6V | 40 A | 750 mA | 1.5 A | 200 ms | 90 mOhms | 350 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.030 (0.75mm) |
|

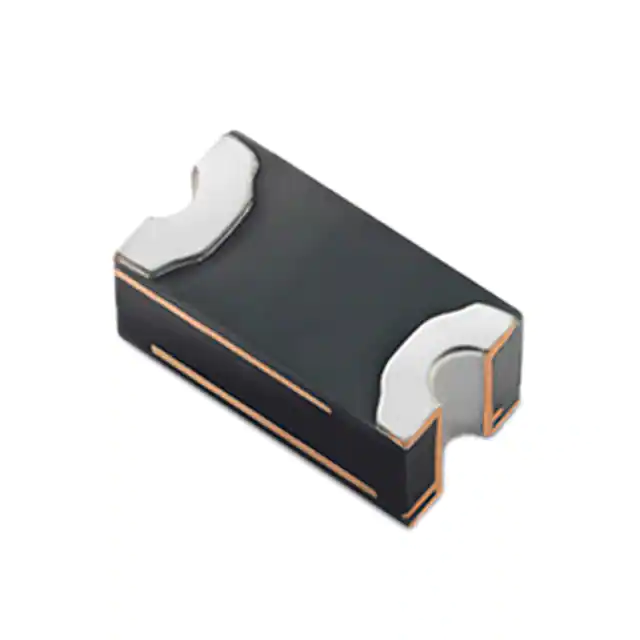

FEMTOASMDC005F-2PTC RESET FUSE 15V 50MA 0603 |
3,749 | 0.90 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoASMD | Active | Polymeric | 15V | 10 A | 50 mA | 150 mA | 100 ms | 3.8 Ohms | 30 Ohms | - | - | PS300, PS400 | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.033 (0.85mm) |
|

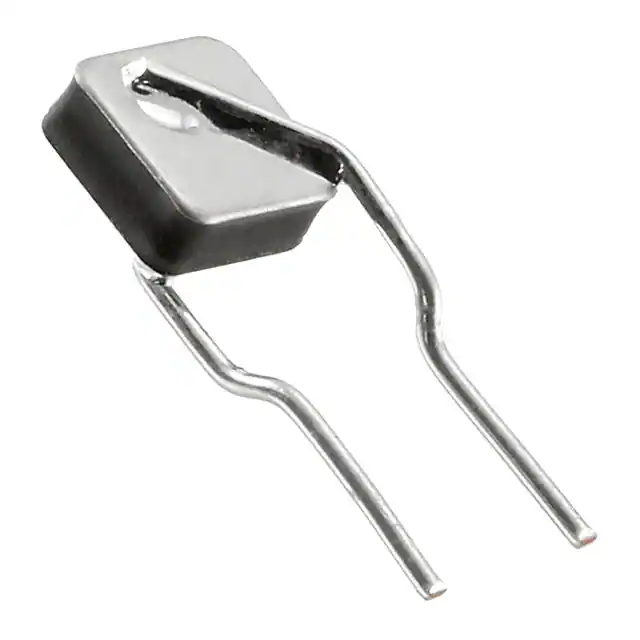

TRF250-120UTPTC RESET FUSE 60V 120MA RADIAL |
1,960 | 0.90 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 1.5 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|
TRF250-145USPTC RESET FUSE 60V 145MA RADIAL |
1,593 | 0.90 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 4 s | 3.5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|
AHRF450-2PTC RESET FUSE 16V 4.5A RADIAL |
1,242 | 0.91 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 4.5 A | 8.7 A | 4 s | 17 mOhms | 54 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.409 L x 0.122 W (10.40mm x 3.10mm) | 0.614 (15.60mm) | - |
|

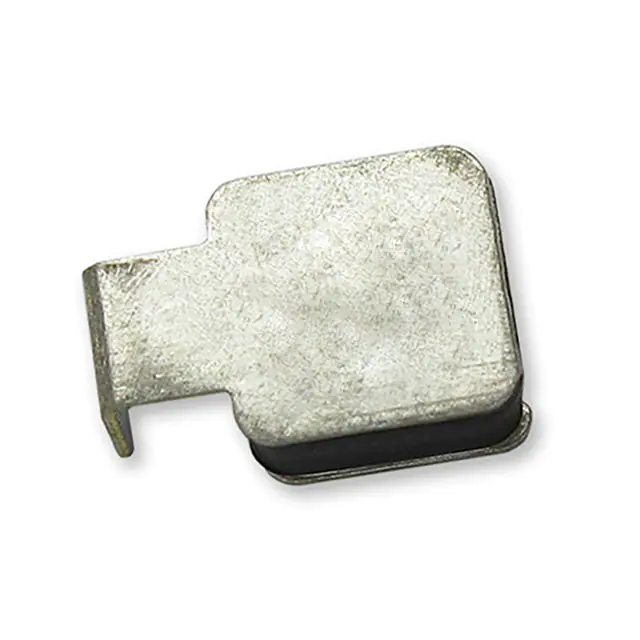

TS250-130F-RA-N-2PTC RESET FUSE 60V 130MA 2SMD |
2,758 | 0.94 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TS250 | Obsolete | Polymeric | 60V (600V Int) | 1 A | 130 mA | 260 mA | 2.5 s | 6.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.353 L x 0.290 W (8.95mm x 7.40mm) | - | 0.134 (3.40mm) |
|
LVR040K-2PTC RESET FUSE 240V 400MA RADIAL |
1,807 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 5.5 A | 400 mA | 900 mA | 24 s | 600 mOhms | 1.9 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.453 L x 0.150 W (11.50mm x 3.80mm) | 0.823 (20.90mm) | - |
|
RXEF300K-2PTC RESET FUSE 72V 3A RADIAL |
1,800 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.910 Dia x 0.118 T (23.11mm x 3.00mm) | 1.154 (29.30mm) | - |
|
TRF250-120T-RC-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,500 | 0.94 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 260 mA | 3 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
VLP210XLFPTC RESET FUSE 16V 2.1A STRAP |
9,657 | 0.95 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLP | Obsolete | Polymeric | 16V | 100 A | 2.1 A | 4.7 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.648 L x 0.280 W (16.45mm x 7.10mm) | - | 0.032 (0.80mm) |
|
RXEF250-APPTC RESET FUSE 72V 2.5A RADIAL |
2,556 | 0.96 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 2.5 A | 5 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.819 Dia x 0.118 T (20.80mm x 3.00mm) | 1.000 (25.40mm) | - |
|
TRF250-120S-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,980 | 0.98 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.394 (10.00mm) | - |
|
1210L175WRPTC RESET FUSE 6V 1.75A 1210 |
1,772 | 0.98 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1210L | Active | Polymeric | 6V | 100 A | 1.75 A | 3.5 A | 600 ms | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.039 (1.00mm) |
|
1206L110/16WRPTC RESET FUSE 16V 1.1A 1206 |
1,080 | 0.98 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 16V | 100 A | 1.1 A | 2.2 A | 100 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.030 (0.75mm) |
|
|
TRF250-120T-RC-B-0.5-2PTC RESET FUSE 60V 130MA RADIAL |
2,931 | 1.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 130 mA | 260 mA | 3 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
TSL250-080F-B-0.5-2PTC RESET FUSE 80V 80MA 2SMD |
1,049 | 1.00 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TSL250 | Obsolete | Polymeric | 80V (250V Int) | 3 A | 80 mA | 240 mA | 1.6 s | 5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.287 L x 0.199 W (7.30mm x 5.05mm) | - | 0.146 (3.70mm) |
|
1812L350SLPRPTC RESET FUSE 6V 3.5A 1812 |
3,436 | 2.19 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 3.5 A | 8.1 A | 5 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.028 (0.70mm) |
|
0805L300SLTHYRPTC RESET FUSE 3.0A 6V 0603 |
3,131 | 2.19 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 3 A | 6 A | 5 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.030 (0.75mm) |
