| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

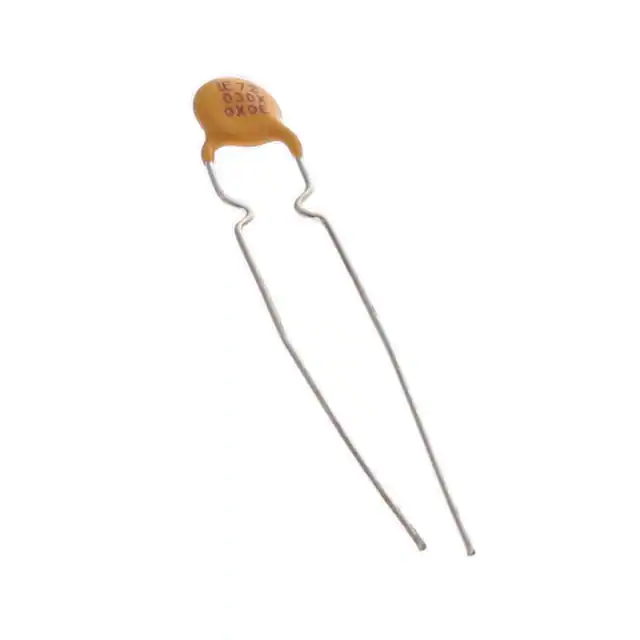

72R030XPRPTC RESET FUSE 72V 300MA RADIAL |
1,885 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 300 mA | 600 mA | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
60R065XPRPTC RESET FUSE 60V 650MA RADIAL |
1,821 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 650 mA | 1.3 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.370 Dia x 0.122 T (9.40mm x 3.10mm) | 0.571 (14.50mm) | - |
|
1206L175PRPTC RESET FUSE 6V 1.75A 1206 |
1,586 | 0.54 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 6V | 100 A | 1.75 A | 3.5 A | 500 ms | 20 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.071 (1.80mm) |
|
1210L075YRPTC RESET FUSE 6V 750MA 1210 |
2,196 | 0.56 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1210L | Active | Polymeric | 6V | 100 A | 750 mA | 1.5 A | 100 ms | 130 mOhms | 400 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.033 (0.85mm) |
|
RXEF090S-2PTC RESET FUSE 72V 900MA RADIAL |
3,000 | 0.57 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 L x 0.118 W (11.20mm x 3.00mm) | 0.622 (15.80mm) | - |
|
NANOASMDC035F-2PTC RESET FUSE 16V 350MA 1206 |
2,974 | 0.57 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoASMD | Active | Polymeric | 16V | 20 A | 350 mA | 750 mA | 100 ms | 450 mOhms | 1.35 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.59mm) | - | 0.032 (0.82mm) |
|
72R040XPRPTC RESET FUSE 72V 400MA RADIAL |
2,000 | 0.57 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 400 mA | 800 mA | 3.8 s | 550 mOhms | 1.29 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.299 Dia x 0.122 T (7.60mm x 3.10mm) | 0.532 (13.50mm) | - |
|
|
1206L005/30WRPTC RESET FUSE 60V 50MA 1206 |
1,233 | 0.57 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 60V | 10 A | 50 mA | 150 mA | 1.5 s | 3.6 Ohms | 20 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | - |
|
1812L125/6PRPTC RESET FUSE 6V 1.25A 1812 |
1,662 | 0.58 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 6V | 100 A | 1.25 A | 2.5 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.030 (0.75mm) |
|
16R250GPRPTC RESET FUSE 16V 2.5A RADIAL |
1,223 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 2.5 A | 4.7 A | 5 s | 22 mOhms | 53 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.504 (12.80mm) | - |
|
RUSBF155PTC RESET FUSE 6V 1.55A RADIAL |
3,936 | 0.59 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUSBF | Active | Polymeric | 6V | 40 A | 1.55 A | 2.65 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.122 T (6.90mm x 3.10mm) | 0.461 (11.70mm) | - |
|
16R185BPRPTC RESET FUSE 16V 1.85A RADIAL |
1,920 | 0.59 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, USBR | Obsolete | Polymeric | 16V | 40 A | 1.85 A | 3.7 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
|
06R155BPRPTC RESET FUSE 6V 1.55A RADIAL |
1,030 | 0.59 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, USBR | Active | Polymeric | 6V | 40 A | 1.55 A | 2.7 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.118 T (6.90mm x 3.00mm) | 0.449 (11.40mm) | - |
|
RUEF300U-2PTC RESET FUSE 30V 3A RADIAL |
2,600 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.650 (16.50mm) | - |
|
RUEF300K-APPTC RESET FUSE 30V 3A RADIAL |
2,000 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.650 (16.50mm) | - |
|
|
RUEF300KPTC RESET FUSE 30V 3A RADIAL |
2,391 | 0.57 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.710 (18.03mm) | - |
|
72R075XPRPTC RESET FUSE 72V 750MA RADIAL |
1,995 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.122 T (10.20mm x 3.10mm) | 0.598 (15.20mm) | - |
|
MINIASMDC150F/16-2PTC RESET FUSE 16V 1.5A 1812 |
1,964 | 0.61 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Active | Polymeric | 16V | 100 A | 1.5 A | 2.8 A | 500 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.019 (0.48mm) |
|
RUSBF135-2PTC RESET FUSE 16V 1.35A RADIAL |
2,945 | 0.62 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUSBF | Active | Polymeric | 16V | 40 A | 1.35 A | 2.7 A | 4.5 s | 40 mOhms | 112 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
|
|
RUSBF155-2PTC RESET FUSE 6V 1.55A RADIAL |
2,923 | 0.62 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RUSBF | Active | Polymeric | 6V | 40 A | 1.55 A | 2.65 A | 2.2 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 L x 0.122 W (6.90mm x 3.10mm) | 0.461 (11.70mm) | - |
