| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1206L350/12SLWRPTC RESET FUSE 3.5A 12V 1206 |
4,839 | 2.19 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 12V | 50 A | 3.5 A | 7 A | 5 s | 3 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.055 (1.40mm) |
|
VTP175LFPTC RESET FUSE 16V 1.75A STRAP |
6,845 | 0.91 |
RFQ |
Datasheet |
Strap | Bulk,Bulk | PolySwitch®, VTP | Active | Polymeric | 16V | 100 A | 1.75 A | 3.6 A | 5 s | 29 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.063 L x 0.146 W (27.00mm x 3.70mm) | - | 0.032 (0.80mm) |
|

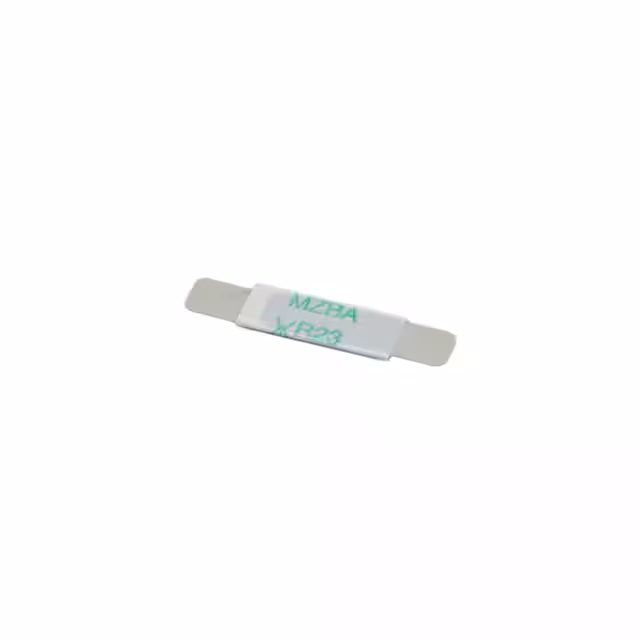

VLR230FPTC RESET FUSE 12V 2.3A STRAP |
6,478 | 0.98 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLR | Active | Polymeric | 12V | 100 A | 2.3 A | 5 A | 5 s | 12 mOhms | 36 mOhms | - | - | - | User Defined | 0.866 L x 0.201 W (22.00mm x 5.10mm) | - | 0.032 (0.80mm) |
|
LR4-450FPTC RESET FUSE 20V 4.5A STRAP |
11,124 | 1.13 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 4.5 A | 8.9 A | 5 s | 11 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.413 W (25.00mm x 10.50mm) | - | 0.039 (1.00mm) |
|
16R1400GHPTC RESET FUSE 16V 14A RADIAL |
22,852 | 1.28 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 16R | Active | Polymeric | 16V | 100 A | 14 A | 23.8 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.925 L x 0.138 W (23.50mm x 3.50mm) | 1.098 (27.90mm) | - |
|

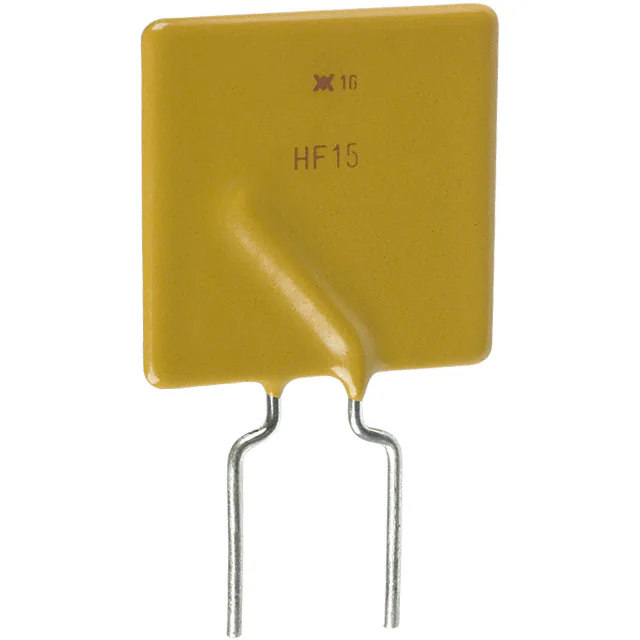

RHEF1500PTC RESET FUSE 16V 15A RADIAL |
1,091 | 1.75 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 15 A | 28 A | 20 s | 3.2 mOhms | 9.2 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.925 L x 0.142 W (23.50mm x 3.60mm) | 1.130 (28.70mm) | - |
|
LR4-1300SSFPTC RESET FUSE 20V 13A STRAP |
53,983 | 2.23 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 13 A | 21.2 A | 10 s | 3.5 mOhms | 9 mOhms | - | -40°C ~ 85°C | - | User Defined | 2.520 L x 0.382 W (64.00mm x 9.70mm) | - | - |
|

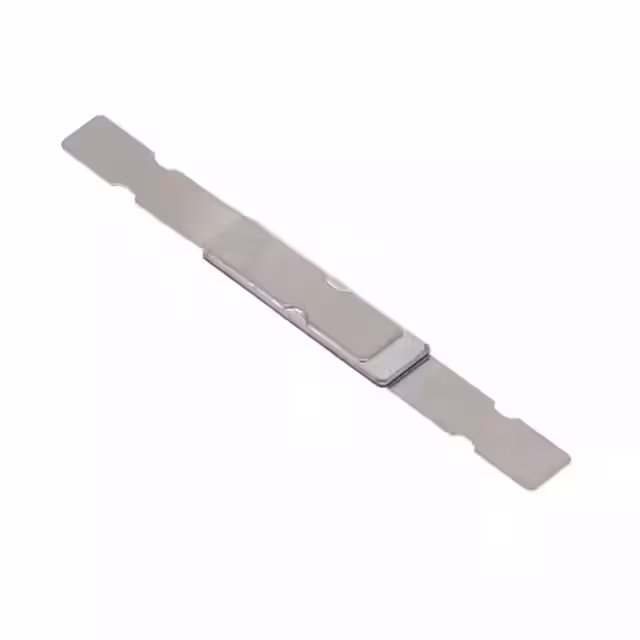

VLP175UAFPTC RESET FUSE 16V 1.75A STRAP |
9,899 | 0.76 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLP | Active | Polymeric | 16V | 60 A | 1.75 A | 3.9 A | 5 s | 23 mOhms | 82 mOhms | - | - | - | User Defined | - | 0.028 (0.70mm) | - |
|

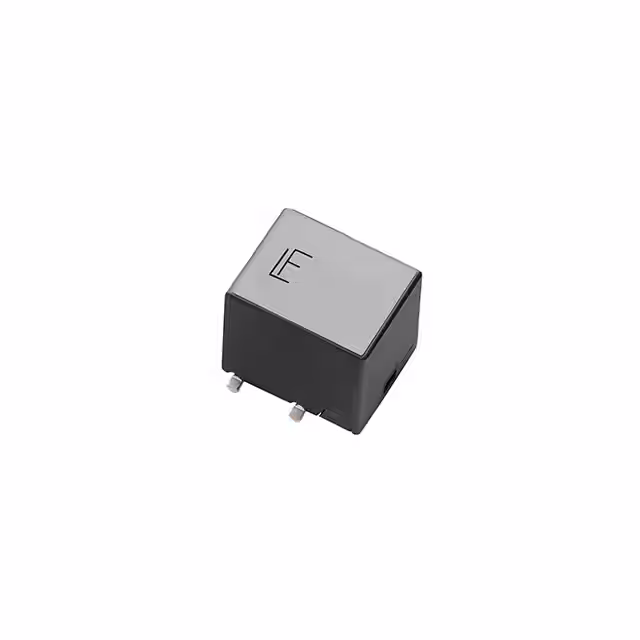

TSM250-130F-2PTC RESET FUSE 60V 130MA 4SMD |
2,872 | 1.79 |
RFQ |
Datasheet |
4-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TSM | Active | Polymeric | 60V | 3 A | 130 mA | 260 mA | 2.4 s | 4 Ohms | 15 Ohms | 9 Ohms | -40°C ~ 85°C | - | Surface Mount | 0.337 L x 0.323 W (8.55mm x 8.20mm) | - | 0.354 (9.00mm) |
|
|
TSM250-130F-RA-2PTC RESET FUSE 60V 130MA 4SMD |
2,795 | 1.79 |
RFQ |
Datasheet |
4-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TSM | Active | Polymeric | 60V | 3 A | 130 mA | 260 mA | 2.4 s | 4 Ohms | 30 Ohms | 22 Ohms | -40°C ~ 85°C | - | Surface Mount | 0.337 L x 0.323 W (8.55mm x 8.20mm) | - | 0.354 (9.00mm) |
|
VLR175LFPTC RESET FUSE 12V 1.75A STRAP |
9,850 | 0.91 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLR | Active | Polymeric | 12V | 100 A | 1.75 A | 4.2 A | 5 s | 17 mOhms | 62 mOhms | - | -40°C ~ 70°C | - | User Defined | 1.201 L x 0.122 W (30.50mm x 3.10mm) | - | 0.032 (0.80mm) |
|
VTP175FPTC RESET FUSE 16V 1.75A STRAP |
8,351 | 0.91 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VTP | Active | Polymeric | 16V | 100 A | 1.75 A | 3.6 A | 5 s | 29 mOhms | 102 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.874 L x 0.146 W (22.20mm x 3.70mm) | - | 0.032 (0.80mm) |
|
VTP240FPTC RESET FUSE 16V 2.4A STRAP |
13,906 | 1.07 |
RFQ |
Datasheet |
Strap | Bulk,Bulk | PolySwitch®, VTP | Active | Polymeric | 16V | 100 A | 2.4 A | 5.9 A | 5 s | 14 mOhms | 52 mOhms | - | - | - | User Defined | 0.984 L x 0.201 W (25.00mm x 5.10mm) | - | 0.032 (0.80mm) |
|
LR4-600XFPTC RESET FUSE 20V 6A STRAP |
4,970 | 1.38 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 6 A | 11.7 A | 5 s | 7 mOhms | 19 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.638 L x 0.283 W (41.60mm x 7.20mm) | - | 0.039 (1.00mm) |
|
RXEF017S-2PTC RESET FUSE 60V 170MA RADIAL |
2,500 | 0.45 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.441 (11.20mm) | - |
|
RXEF030S-2PTC RESET FUSE 72V 300MA RADIAL |
3,000 | 0.48 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 300 mA | 600 mA | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|
RXEF050S-APPTC RESET FUSE 72V 500MA RADIAL |
3,986 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.311 Dia x 0.118 T (7.90mm x 3.00mm) | 0.539 (13.70mm) | - |
|

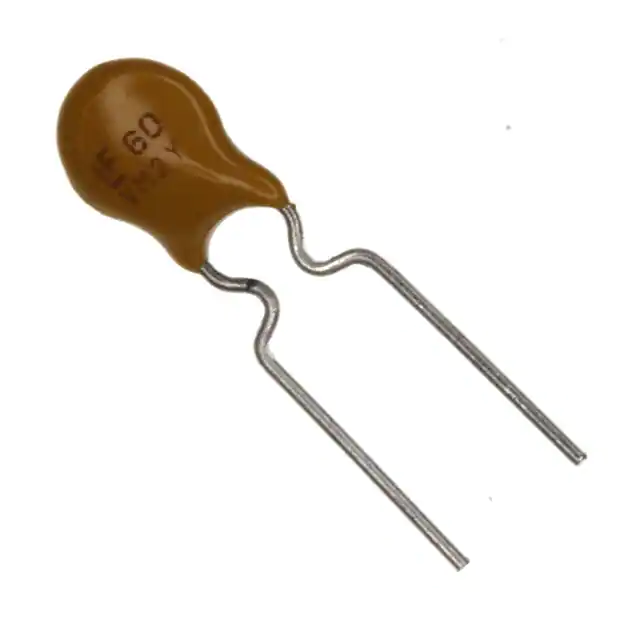

60R017XPRPTC RESET FUSE 60V 170MA RADIAL |
3,840 | 0.45 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
RUEF110-APPTC RESET FUSE 30V 1.1A RADIAL |
7,956 | 0.45 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.1 A | 2.2 A | 6.6 s | 70 mOhms | 170 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.559 (14.20mm) | - |
|
RUEF135-APPTC RESET FUSE 30V 1.35A RADIAL |
2,003 | 0.52 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 1.35 A | 2.7 A | 7.3 s | 40 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.532 (13.50mm) | - |
