| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RUEF300-APPTC RESET FUSE 30V 3A RADIAL |
3,032 | 0.60 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 3 A | 6 A | 10.8 s | 20 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.449 L x 0.118 W (11.40mm x 3.00mm) | 0.650 (16.50mm) | - |
|
LVR008NS-2PTC RESET FUSE 240V 80MA RADIAL |
5,674 | 0.76 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 80 mA | 190 mA | 10 s | 7.4 Ohms | 26 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.283 Dia x 0.181 T (7.20mm x 4.60mm) | 0.402 (10.20mm) | - |
|
ASMDC030F-2PTC RESET FUSE 60V 300MA 2SMD |
8,534 | 0.82 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 60V | 10 A | 300 mA | 600 mA | 3 s | 300 mOhms | 3.4 Ohms | - | - | PS300, PS400 | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.035 (0.90mm) |
|

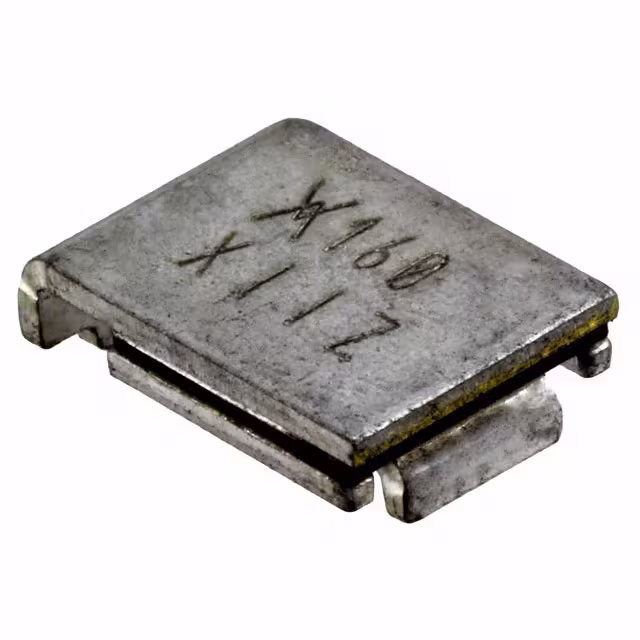

SMDH160-2PTC RESET FUSE 16V 1.6A 2SMD |
1,500 | 0.80 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 16V | 70 A | 1.6 A | 3.2 A | 15 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | - | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
|
RGEF700-2PTC RESET FUSE 16V 7A RADIAL |
5,426 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 7 A | 11.9 A | 3.5 s | 7.7 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.421 L x 0.098 W (10.70mm x 2.50mm) | 0.776 (19.70mm) | - |
|
TRF250-180-2PTC RESET FUSE 100V 180MA RADIAL |
5,990 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 100V (250V Int) | 10 A | 180 mA | 650 mA | 2 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 Dia x 0.150 T (9.00mm x 3.80mm) | 0.472 (12.00mm) | - |
|

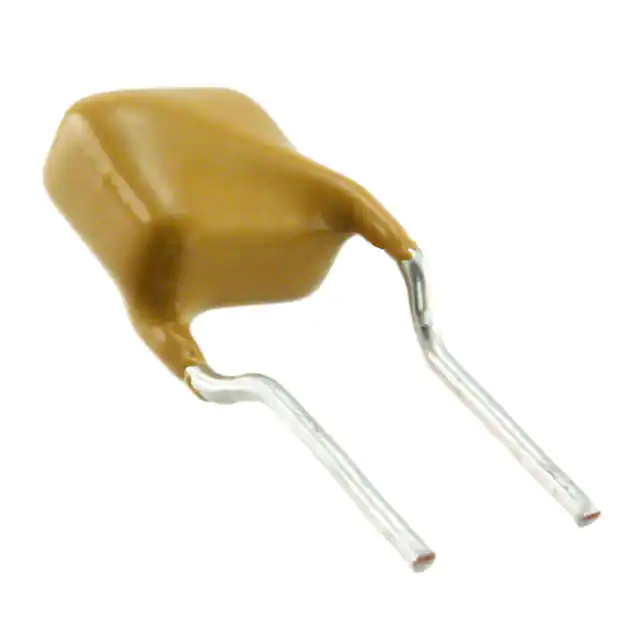

TRF250-120-2PTC RESET FUSE 60V 120MA RADIAL |
15,000 | 0.36 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
250R080ZRPTC RESET FUSE 60V 80MA RADIAL |
2,777 | 0.85 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 3 A | 80 mA | 160 mA | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.228 Dia x 0.181 T (5.80mm x 4.60mm) | 0.390 (9.90mm) | - |
|
250R120-RCZRPTC RESET FUSE 60V 120MA RADIAL |
7,267 | 0.88 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 3 s | 5.4 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|

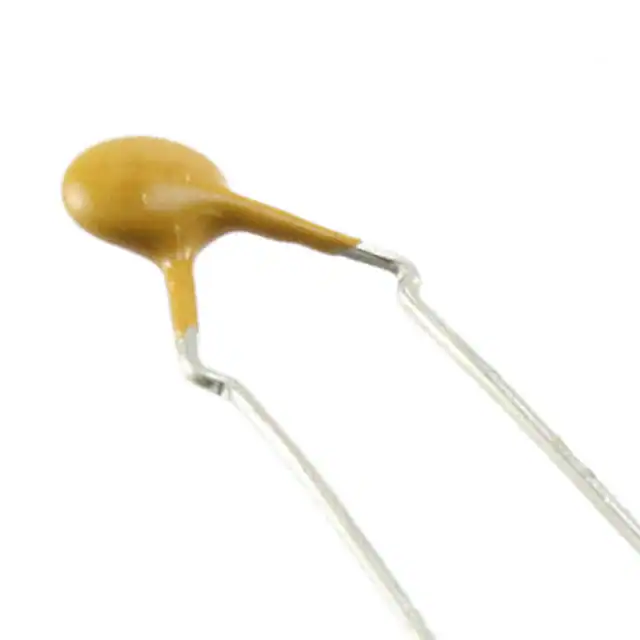

RXEF017SPTC RESET FUSE 60V 170MA RADIAL |
16,560 | 0.41 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|

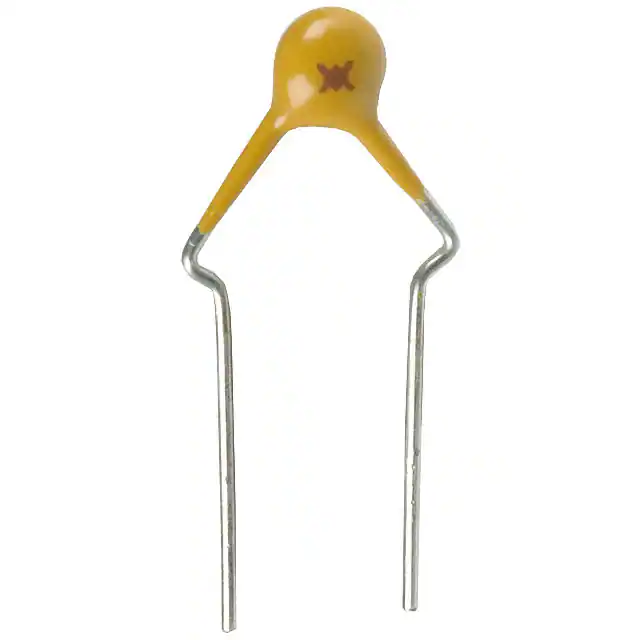

RXEF020SPTC RESET FUSE 72V 200MA RADIAL |
3,354 | 0.42 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 200 mA | 400 mA | 2.2 s | 1.83 Ohms | 4.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.461 (11.70mm) | - |
|
2920L600/12MR-APTC RESET FUSE 12V 6A 2920 |
2,719 | 1.07 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 12V | 50 A | 6 A | 12 A | 2 s | 4 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.063 (1.60mm) |
|
60R090XUPTC RESET FUSE 60V 900MA RADIAL |
1,263 | 0.52 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 Dia x 0.122 T (11.20mm x 3.10mm) | 0.622 (15.80mm) | - |
|

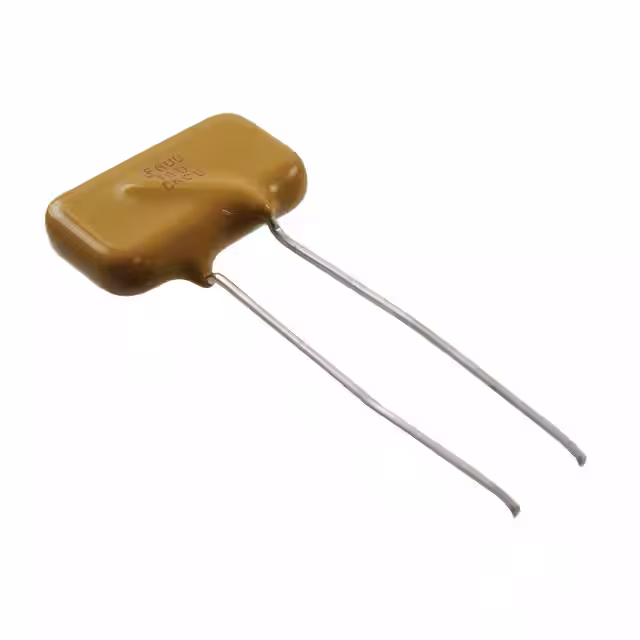

600R160URPTC RESET FUSE 60V 160MA RADIAL |
2,845 | 1.08 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 600R | Active | Polymeric | 60V (600V Int) | 3 A | 160 mA | 320 mA | 10 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.630 L x 0.236 W (16.00mm x 6.00mm) | 0.496 (12.60mm) | - |
|

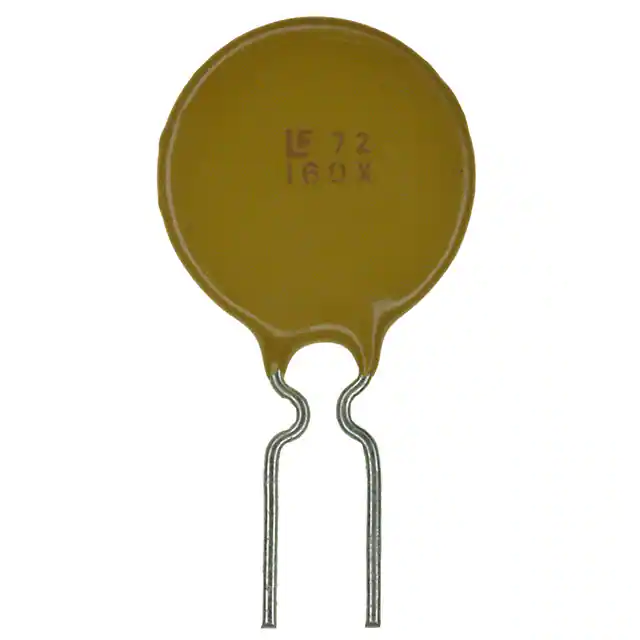

72R160XFPTC RESET FUSE 72V 1.6A RADIAL |
14,740 | 0.56 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 1.6 A | 3.2 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.600 Dia x 0.122 T (15.24mm x 3.10mm) | 0.850 (21.60mm) | - |
|

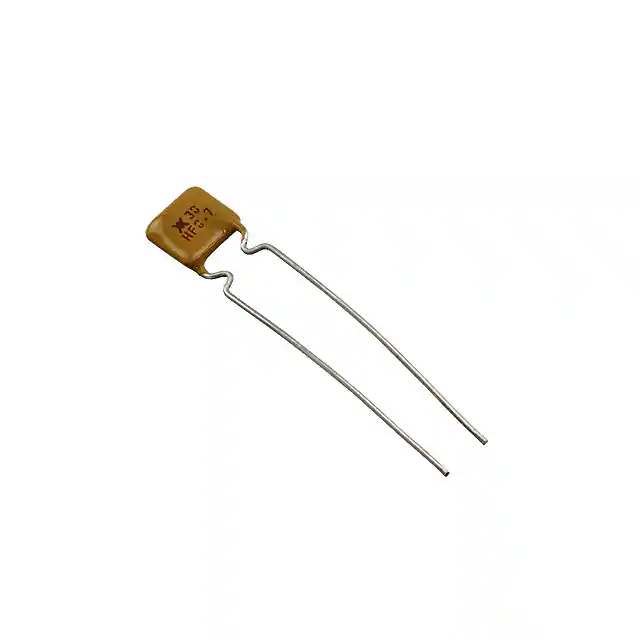

RHEF070PTC RESET FUSE 30V 700MA RADIAL |
1,763 | 0.63 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RHEF | Active | Polymeric | 30V | 40 A | 700 mA | 1.4 A | 3.2 s | 300 mOhms | 800 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.272 L x 0.118 W (6.90mm x 3.00mm) | 0.425 (10.80mm) | - |
|
VLP220FPTC RESET FUSE 16V 2.2A STRAP |
2,000 | 0.76 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VLP | Active | Polymeric | 16V | 60 A | 2.2 A | 5.3 A | 5 s | 17 mOhms | 58 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.874 L x 0.146 W (22.20mm x 3.70mm) | - | 0.032 (0.80mm) |
|
VTP110FPTC RESET FUSE 16V 1.1A STRAP |
1,342 | 0.76 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VTP | Active | Polymeric | 16V | 100 A | 1.1 A | 2.7 A | 5 s | 38 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.008 L x 0.114 W (25.60mm x 2.90mm) | - | 0.028 (0.70mm) |
|
250R180FPTC RESET FUSE 60V 180MA RADIAL |
1,029 | 0.85 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 10 A | 180 mA | 650 mA | 20 s | 800 mOhms | 4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.374 Dia x 0.181 T (9.50mm x 4.60mm) | 0.472 (12.00mm) | - |
|
1210L500/12SLWRPTC RESET FUSE 5.0A 12V 1210 |
5,039 | 2.19 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 12V | 50 A | 5 A | 10 A | 2 s | 1 mOhms | 12 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.055 (1.40mm) |
