| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXEF075-APPTC RESET FUSE 72V 750MA RADIAL |
5,315 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.118 T (10.20mm x 3.00mm) | 0.598 (15.20mm) | - |
|
MINIASMDC125F/16-2PTC RESET FUSE 16V 1.25A 1812 |
175 | 0.57 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniASMD | Active | Polymeric | 16V | 100 A | 1.25 A | 2.5 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.019 (0.48mm) |
|
RUSBF120-2PTC RESET FUSE 6V 1.2A RADIAL |
3,000 | 0.61 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUSBF | Active | Polymeric | 6V | 40 A | 1.2 A | 2 A | 500 ms | 70 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.272 L x 0.122 W (6.90mm x 3.10mm) | 0.461 (11.70mm) | - |
|
|
MINISMDC110F/24-2PTC RESET FUSE 24V 1.1A 1812 |
31,038 | 0.61 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 24V | 100 A | 1.1 A | 2.2 A | 500 ms | 60 mOhms | 180 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.181 L x 0.128 W (4.60mm x 3.24mm) | - | 0.057 (1.46mm) |
|
72R090XPRPTC RESET FUSE 72V 900MA RADIAL |
4,000 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 Dia x 0.122 T (11.20mm x 3.10mm) | 0.622 (15.80mm) | - |
|
RUSBF185-2PTC RESET FUSE 16V 1.85A RADIAL |
3,000 | 0.67 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUSBF | Active | Polymeric | 16V | 40 A | 1.85 A | 3.7 A | 10 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
|
RXEF160K-2PTC RESET FUSE 72V 1.6A RADIAL |
1,500 | 0.63 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.6 A | 3.2 A | 11.4 s | 90 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.642 Dia x 0.118 T (16.30mm x 3.00mm) | 0.819 (20.80mm) | - |
|
AGRF600-2PTC RESET FUSE 16V 6A RADIAL |
2,000 | 0.86 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 6 A | 10.7 A | 3.5 s | 9.5 mOhms | 28 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.421 L x 0.118 W (10.70mm x 3.00mm) | 0.724 (18.40mm) | - |
|

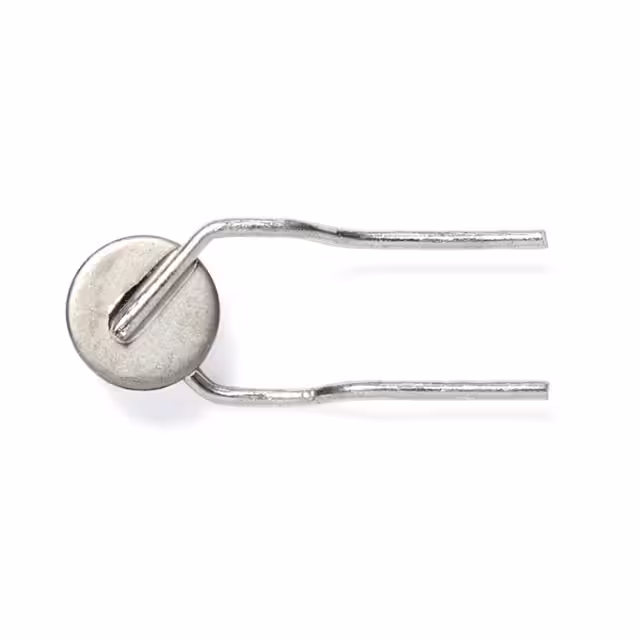

TRF250-110U-B-0.5-2PTC RESET FUSE 60V 110MA RADIAL |
1,500 | 0.86 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 110 mA | 220 mA | 750 ms | 5 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.209 Dia x 0.150 T (5.30mm x 3.80mm) | 0.370 (9.40mm) | - |
|
ASMD030F-2PTC RESET FUSE 60V 230MA 2SMD |
3,995 | 0.79 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 60V | 10 A | 230 mA | 590 mA | 12 s | 980 mOhms | 4.8 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.125 (3.18mm) |
|
|
AGRF400-2PTC RESET FUSE 16V 4A RADIAL |
2,500 | 0.70 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 4 A | 7.6 A | 2 s | 18.6 mOhms | 61 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.555 (14.10mm) | - |
|
LVR012S-2PTC RESET FUSE 240V 120MA RADIAL |
5,430 | 0.70 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 120 mA | 300 mA | 15 s | 3 Ohms | 12 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.327 Dia x 0.150 T (8.30mm x 3.80mm) | 0.430 (10.70mm) | - |
|
PICOASMDCH035F-2PPTC-MINI-PSW |
2,230 | 0.82 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, picoASMD | Active | Polymeric | 16V | 40 A | 350 mA | 1.1 A | 100 ms | 300 mOhms | 1.9 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.083 L x 0.055 W (2.10mm x 1.40mm) | - | 0.047 (1.20mm) |
|
AHS160-2PTC RESET FUSE 16V 1.6A 2SMD |
1,929 | 0.73 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AHS | Active | Polymeric | 16V | 70 A | 1.6 A | 3.2 A | 15 s | 50 mOhms | 150 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
|

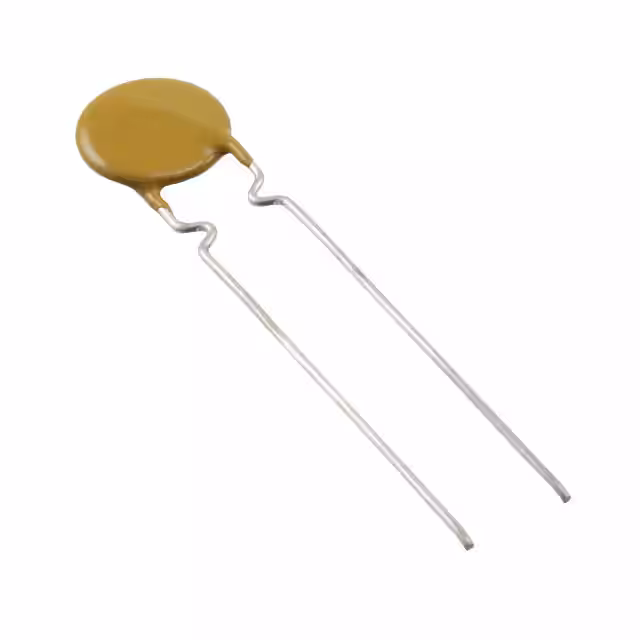

AHRF200-2PTC RESET FUSE 16V 2A RADIAL |
2,500 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 2 A | 3.8 A | 4.8 s | 39 mOhms | 110 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.370 Dia x 0.118 T (9.40mm x 3.00mm) | 0.567 (14.40mm) | - |
|
TRF250-183-2PTC RESET FUSE 100V 183MA RADIAL |
1,500 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 100V (250V Int) | 10 A | 183 mA | 685 mA | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.295 Dia x 0.161 T (7.50mm x 4.10mm) | 0.413 (10.50mm) | - |
|
2920L030DR-APTC RESET FUSE 60V 300MA 2920 |
2,474 | 0.84 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 60V | 10 A | 300 mA | 600 mA | 3 s | 1.2 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.049 (1.25mm) |
|
|
AGRF700-2PTC RESET FUSE 16V 7A RADIAL |
1,500 | 0.89 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 7 A | 13.2 A | 4 s | 6.6 mOhms | 20 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.441 L x 0.118 W (11.20mm x 3.00mm) | 0.827 (21.00mm) | - |
|
RHEF650-2PTC RESET FUSE 16V 6.5A RADIAL |
3,000 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 6.5 A | 12 A | 5.5 s | 11 mOhms | 26 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.500 L x 0.118 W (12.70mm x 3.00mm) | 0.874 (22.20mm) | - |
|

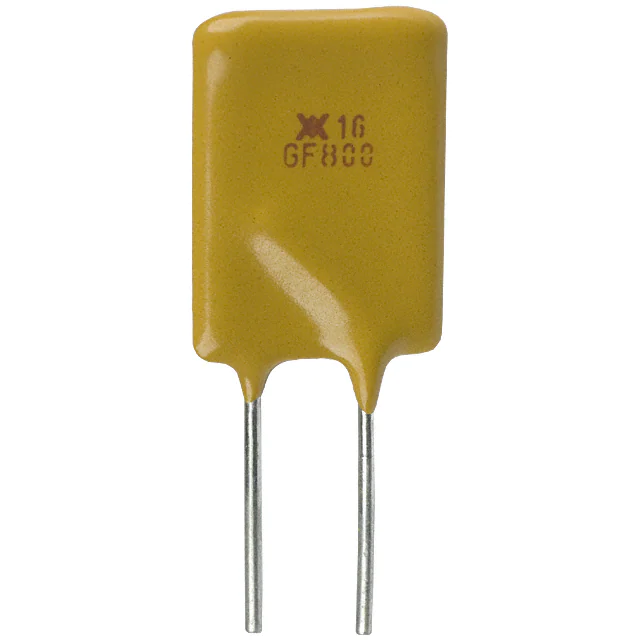

RGEF800-2PTC RESET FUSE 16V 8A RADIAL |
4,500 | 0.83 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 8 A | 13.6 A | 5 s | 5.6 mOhms | 17.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.480 L x 0.098 W (12.20mm x 2.50mm) | 0.823 (20.90mm) | - |
