| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
0603L300/9SLYRPTC RESET FUSE 9V 3A 0603 |
7,806 | 3.60 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 9V | 50 A | 3 A | 6 A | 1 s | 3 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.039 (1.00mm) |
|
TS600-170F-2PTC RESET FUSE 60V 170MA 2SMD |
2,069 | 2.50 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TS600 | Active | Polymeric | 60V (600V Int) | 3 A | 170 mA | 400 mA | 10 s | 4 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.742 L x 0.305 W (18.85mm x 7.75mm) | - | 0.485 (12.32mm) |
|
AHEF750PTC RESET FUSE 32V 7.5A RADIAL |
1,341 | 1.70 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHEF | Active | Polymeric | 32V | 100 A | 7.5 A | 15 A | 13 s | 7.4 mOhms | 23 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.830 L x 0.150 W (21.10mm x 3.80mm) | 0.980 (24.90mm) | - |
|
BD280-1130-10/16PTC RESET FUSE 14V 8A BLADE TYPE |
1,368 | 4.90 |
RFQ |
Datasheet |
Blade Type | Bulk | PolySwitch®, BD280 | Active | Polymeric | 14V | 100 A | 8 A | 13 A | 8 s | 9.5 Ohms | 18.5 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Holder | 1.193 L x 0.433 W (30.30mm x 11.00mm) | 0.262 (6.65mm) | - |
|

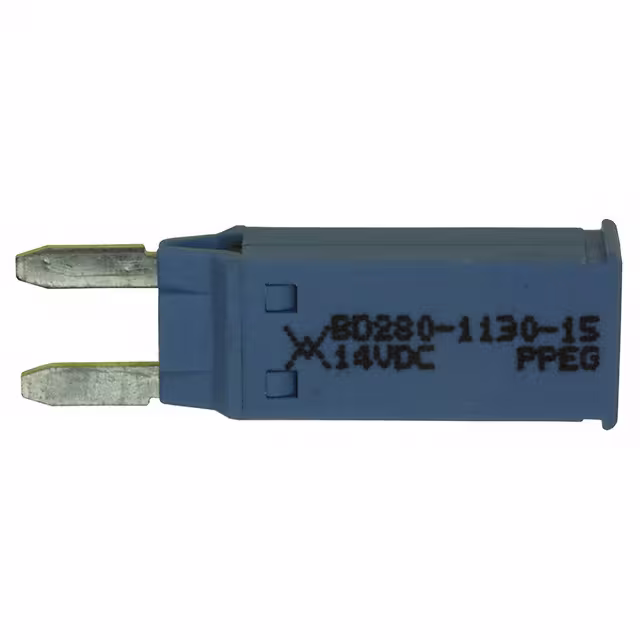

BD280-1130-15/16PTC RESET FUSE 14V 12A BLADE |
302 | 6.14 |
RFQ |
Datasheet |
Blade Type | Bulk | PolySwitch®, BD280 | Active | Polymeric | 14V | 100 A | 12 A | 20 A | 8 s | 5 mOhms | 7 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Holder | 1.193 L x 0.433 W (30.30mm x 11.00mm) | 0.262 (6.65mm) | - |
|
RXEF017-2PTC RESET FUSE 60V 170MA RADIAL |
3,002 | 0.45 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 60V | 40 A | 170 mA | 340 mA | 3 s | 3.3 Ohms | 8 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|
MINISMDC125F-2PTC RESET FUSE 6V 1.25A 1812 |
18,516 | 0.47 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 6V | 100 A | 1.25 A | 2.5 A | 400 ms | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.019 (0.48mm) |
|
MINISMDC160F-2PTC RESET FUSE 9V 1.6A 1812 |
7,264 | 0.47 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Active | Polymeric | 9V | 100 A | 1.6 A | 3.2 A | 1 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.019 (0.48mm) |
|
60R030XPRPTC RESET FUSE 60V 300MA RADIAL |
3,338 | 0.49 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 300 mA | 600 mA | 3 s | 880 mOhms | 2.1 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.122 T (7.40mm x 3.10mm) | 0.500 (12.70mm) | - |
|
RUEF090-2PTC RESET FUSE 30V 900MA RADIAL |
13,199 | 0.50 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 900 mA | 1.8 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.480 (12.20mm) | - |
|
ZEPTOSMDC0015FPTC RESET FUSE 15MA 13VDC 0201 |
29,920 | 0.54 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | POLYSWITCH® zeptoSMDC | Active | Polymeric | 13V | 200 mA | 15 mA | 80 mA | 20 ms | 10 Ohms | 150 Ohms | - | -20°C ~ 60°C | - | Surface Mount | 0.024 L x 0.018 W (0.60mm x 0.45mm) | - | 0.016 (0.40mm) |
|
1210L110THYRPTC RESET FUSE 8V 1.1A 1210 |
11,968 | 0.52 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1210L | Active | Polymeric | 8V | 100 A | 1.1 A | 2.2 A | 100 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.71mm) |
|
RXEF065-2PTC RESET FUSE 72V 650MA RADIAL |
8,476 | 0.53 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 650 mA | 1.3 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.370 Dia x 0.118 T (9.40mm x 3.00mm) | 0.571 (14.50mm) | - |
|
RXEF075-2PTC RESET FUSE 72V 750MA RADIAL |
8,461 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.118 T (10.20mm x 3.00mm) | 0.598 (15.20mm) | - |
|
60R090XPRPTC RESET FUSE 60V 900MA RADIAL |
4,905 | 0.55 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 900 mA | 1.8 A | 7.2 s | 200 mOhms | 470 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.441 Dia x 0.122 T (11.20mm x 3.10mm) | 0.622 (15.80mm) | - |
|
1206L150THWR-APTC RESET FUSE 8V 1.5A 1206 |
4,704 | 0.59 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1206L | Active | Polymeric | 8V | 100 A | 1.5 A | 3 A | 300 ms | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.065 W (3.20mm x 1.65mm) | - | 0.039 (1.00mm) |
|
RUSBF110-2PTC RESET FUSE 16V 1.1A RADIAL |
5,090 | 0.61 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUSBF | Active | Polymeric | 16V | 40 A | 1.1 A | 2.2 A | 2.3 s | 50 mOhms | 140 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.559 (14.20mm) | - |
|
NANOSMDC200F-2PTC RESET FUSE 6V 2A 1206 |
8,245 | 0.61 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoSMD | Active | Polymeric | 6V | 100 A | 2 A | 4 A | 1.5 s | 20 mOhms | 72 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.59mm) | - | 0.043 (1.10mm) |
|
30R160UPRPTC RESET FUSE 30V 1.6A RADIAL |
4,130 | 0.61 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 30R | Active | Polymeric | 30V | 40 A | 1.6 A | 3.2 A | 8 s | 30 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.350 L x 0.118 W (8.90mm x 3.00mm) | 0.598 (15.20mm) | - |
|

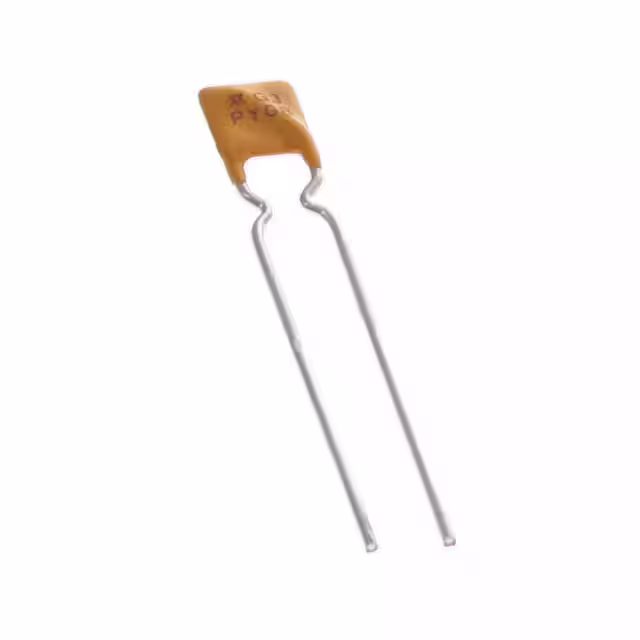

RGEF300K-2PTC RESET FUSE 16V 3A RADIAL |
7,500 | 0.64 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 3 A | 5.1 A | 1 s | 38 mOhms | 97.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.260 L x 0.098 W (6.60mm x 2.50mm) | 0.535 (13.60mm) | - |
