| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RKEF375PTC RESET FUSE 60V 3.75A RADIAL |
5,871 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 3.75 A | 7.5 A | 22 s | 17 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.992 (25.20mm) | - |
|
|
RKEF375KPTC RESET FUSE 60V 3.75A RADIAL |
5,596 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 3.75 A | 7.5 A | 22 s | 17 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.992 (25.20mm) | - |
|
AHEF100PTC RESET FUSE 32V 1A RADIAL |
11,063 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHEF | Active | Polymeric | 32V | 100 A | 1 A | 1.9 A | 6.2 s | 150 mOhms | 430 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.382 Dia x 0.118 T (9.70mm x 3.00mm) | 0.535 (13.60mm) | - |
|
1812L010/60DRPTC RESET FUSE 60V 100MA 1812 |
14,314 | 1.91 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 60V | 10 A | 100 mA | 300 mA | 1.5 s | 1.6 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.049 (1.25mm) |
|
|
1812L300MRPTC RESET FUSE 6V 3A 1812 |
4,996 | 1.91 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 6V | 100 A | 3 A | 5 A | 4 s | 12 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.059 (1.50mm) |
|
0603L025YRPTC RESET FUSE 9V 250MA 0603 |
16,547 | 1.02 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0603L | Active | Polymeric | 9V | 40 A | 250 mA | 550 mA | 80 ms | 500 mOhms | 3 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.030 (0.75mm) |
|
1210L200SLYRPTC RESET FUSE 6V 2A 1210 |
14,614 | 2.19 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2 A | 4 A | 3 s | 5 mOhms | 24 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.028 (0.70mm) |
|
1206L450SLWRPTC RESET FUSE 6V 4.5A 1206 |
7,798 | 2.19 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 4.5 A | 9 A | 2 s | 1 mOhms | 14 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.047 (1.20mm) |
|
1210L600SLWRPTC RESET FUSE 6.0A 6V 1210 |
3,152 | 2.19 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 6 A | 12 A | 2 s | 1 mOhms | 10 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.055 (1.40mm) |
|
VTP210GFPTC RESET FUSE 16V 2.1A STRAP |
56,319 | 0.91 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VTP | Active | Polymeric | 16V | 100 A | 2.1 A | 4.7 A | 5 s | 18 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.909 L x 0.209 W (23.10mm x 5.30mm) | - | 0.032 (0.80mm) |
|
0805L100WRPTC RESET FUSE 6V 1A 0805 |
28,666 | 0.95 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0805L | Active | Polymeric | 6V | 40 A | 1 A | 1.95 A | 300 ms | 60 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.071 (1.80mm) |
|
|
0805L110WRPTC RESET FUSE 6V 1.1A 0805 |
6,603 | 0.95 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0805L | Active | Polymeric | 6V | 100 A | 1.1 A | 2 A | 100 ms | 50 mOhms | 160 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.043 (1.10mm) |
|
2920L330/24MR-APTC RESET FUSE 24V 3.3A 2920 |
4,098 | 2.19 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 24V | 40 A | 3.3 A | 5.5 A | 5 s | 15 mOhms | 55 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.079 (2.00mm) |
|
VTP170FPTC RESET FUSE 16V 1.7A STRAP |
8,813 | 1.03 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, VTP | Active | Polymeric | 16V | 100 A | 1.7 A | 3.4 A | 5 s | 30 mOhms | 105 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.648 L x 0.283 W (16.45mm x 7.20mm) | - | 0.032 (0.80mm) |
|
SMDC310F/18-02PTC RESET FUSE 18V 3.1A 2920 |
3,360 | 2.66 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | SMDC | Active | Polymeric | 18V | 50 A | 3.1 A | 6 A | 25 s | - | - | - | - | - | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.067 (1.70mm) |
|

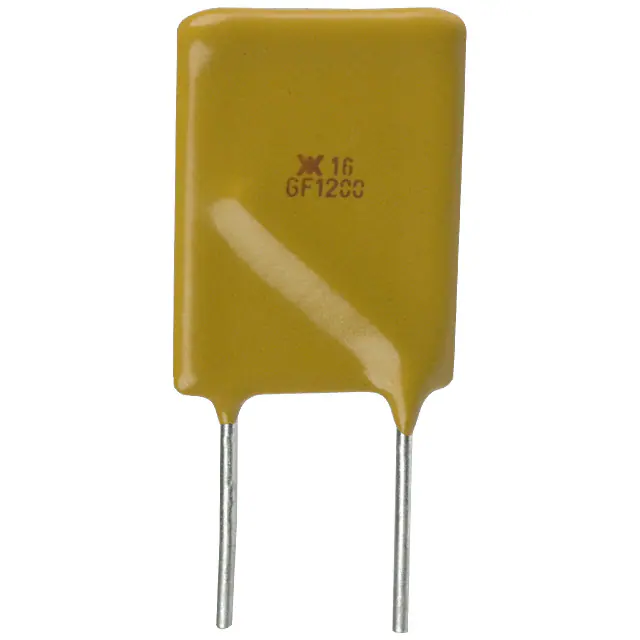

RGEF1200PTC RESET FUSE 16V 12A RADIAL |
3,338 | 1.11 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 12 A | 20.4 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.670 L x 0.520 W (16.95mm x 2.90mm) | 1.102 (28.00mm) | - |
|
LVR055KPTC RESET FUSE 240V 550MA RADIAL |
1,450 | 1.27 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 7 A | 550 mA | 1.25 A | 26 s | 450 mOhms | 1.45 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.551 L x 0.161 W (14.00mm x 4.10mm) | 0.822 (20.87mm) | - |
|

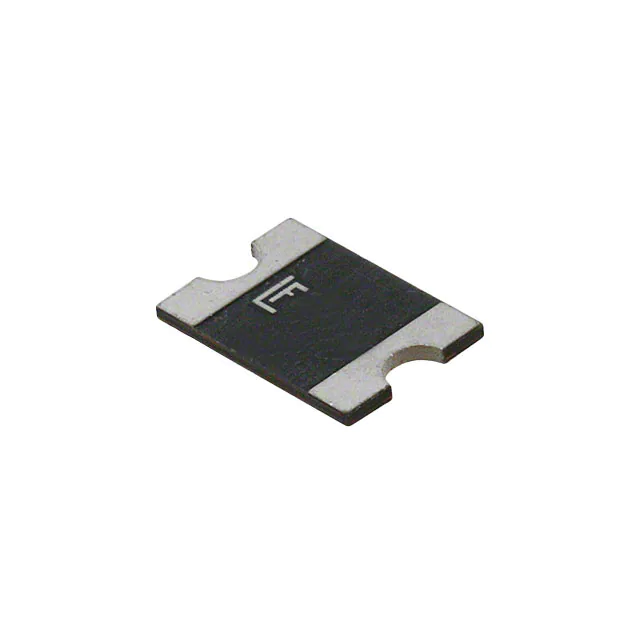

2920L700SLPRPTC RESET FUSE 6V 7A 2920 |
6,771 | 3.05 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 7 A | 14 A | 200 ms | 1 mOhms | 7 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.026 (0.65mm) |
|

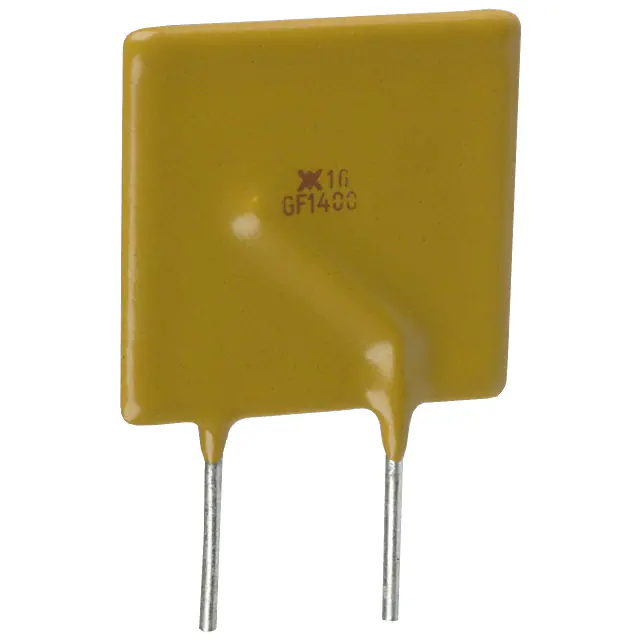

RGEF1400PTC RESET FUSE 16V 14A RADIAL |
2,690 | 1.33 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 14 A | 23.8 A | 9 s | 2.6 mOhms | 6.4 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.925 L x 0.114 W (23.50mm x 2.90mm) | 1.102 (28.00mm) | - |
|
AHEF500PTC RESET FUSE 32V 5A RADIAL |
2,347 | 1.34 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHEF | Active | Polymeric | 32V | 100 A | 5 A | 10 A | 9 s | 15 mOhms | 40 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.551 L x 0.150 W (14.00mm x 3.80mm) | 0.949 (24.10mm) | - |
