| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LVR005NSPTC RESET FUSE 240V 50MA RADIAL |
17,836 | 0.68 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1 A | 50 mA | 120 mA | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.181 T (6.90mm x 4.60mm) | 0.390 (9.90mm) | - |
|
|
LVR005NKPTC RESET FUSE 240V 50MA RADIAL |
6,521 | 0.68 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1 A | 50 mA | 120 mA | 10 s | 18.5 Ohms | 65 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.272 Dia x 0.181 T (6.90mm x 4.60mm) | 0.476 (12.10mm) | - |
|
RUEF400KPTC RESET FUSE 30V 4A RADIAL |
5,670 | 0.68 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 4 A | 8 A | 12.7 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 0.839 (21.30mm) | - |
|
60R250XFPTC RESET FUSE 60V 2.5A RADIAL |
1,600 | 0.68 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 60R | Active | Polymeric | 60V | 40 A | 2.5 A | 5 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.785 Dia x 0.122 T (19.93mm x 3.10mm) | 1.032 (26.20mm) | - |
|
0603L002/60YRPTC RESET FUSE 60V 20MA 0603 |
8,755 | 1.69 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0603L | Active | Polymeric | 60V | 40 A | 20 mA | 60 mA | 1 s | 12 Ohms | 70 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | - | 0.039 (1.00mm) |
|
|
0603L003/36YRPTC RESET FUSE 36V 30MA 0603 |
5,565 | 1.69 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0603L | Active | Polymeric | 36V | 40 A | 30 mA | 90 mA | 1 s | 6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | - | 0.039 (1.00mm) |
|
TRF250-080UPTC RESET FUSE 60V 80MA RADIAL |
8,174 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 80 mA | 160 mA | 4 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.189 Dia x 0.150 T (4.80mm x 3.80mm) | 0.366 (9.30mm) | - |
|
72R375XHPTC RESET FUSE 72V 3.75A RADIAL |
43,711 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bulk,Bulk | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 3.75 A | 7.5 A | 24 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 1.035 Dia x 0.122 T (26.30mm x 3.10mm) | 1.224 (31.10mm) | - |
|
|
LVR012SPTC RESET FUSE 240V 120MA RADIAL |
5,926 | 0.76 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 120 mA | 300 mA | 15 s | 3 Ohms | 12 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.327 Dia x 0.150 T (8.30mm x 3.80mm) | 0.430 (10.70mm) | - |
|
|
LVR016SPTC RESET FUSE 240V 160MA RADIAL |
4,816 | 0.76 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 2 A | 160 mA | 370 mA | 15 s | 2.5 Ohms | 7.8 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.390 Dia x 0.150 T (9.90mm x 3.80mm) | 0.492 (12.50mm) | - |
|
|
LVR012KPTC RESET FUSE 240V 120MA RADIAL |
3,479 | 0.76 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 1.2 A | 120 mA | 300 mA | 15 s | 3 Ohms | 12 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.327 Dia x 0.150 T (8.30mm x 3.80mm) | 0.508 (12.90mm) | - |
|
0805L200SLTHYRPTC RESET FUSE 6V 2A 0805 |
25,365 | 1.85 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2 A | 4 A | 1 s | 5 mOhms | 45 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.030 (0.75mm) |
|
1206L175SLYRPTC RESET FUSE 6V 1.75A 1206 |
18,330 | 1.85 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 1.75 A | 3.5 A | 400 ms | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.071 (1.80mm) |
|
|
0805L110SLYRPTC RESET FUSE 6V 1.1A 0805 |
13,618 | 1.85 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 1.1 A | 1.8 A | 300 ms | 30 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.030 (0.75mm) |
|
1206L200SLYRPTC RESET FUSE 6V 2A 1206 |
16,295 | 1.85 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2 A | 4 A | 500 ms | 5 mOhms | 25 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.128 L x 0.065 W (3.25mm x 1.65mm) | - | 0.024 (0.60mm) |
|

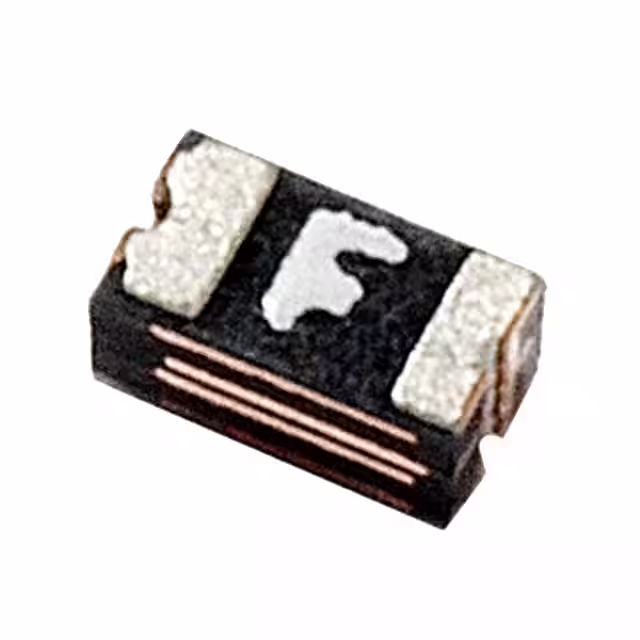

0603L200SL-VYRPTC RESET FUSE 2.0A 6V 0603 |
4,178 | 1.85 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 6V | 50 A | 2 A | 4 A | 1 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.031 W (1.60mm x 0.80mm) | - | 0.039 (1.00mm) |
|
|
0805L035YRPTC RESET FUSE 6V 350MA 0805 |
35,392 | 0.82 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 0805L | Active | Polymeric | 6V | 100 A | 350 mA | 750 mA | 100 ms | 250 mOhms | 1.2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.083 L x 0.053 W (2.10mm x 1.35mm) | - | 0.030 (0.75mm) |
|
1812L050/60MR-APTC RESET FUSE 60V 500MA 1812 |
7,958 | 1.76 |
RFQ |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 1812L | Active | Polymeric | 60V | 10 A | 500 mA | 1 A | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.071 (1.80mm) | |
|
LVR025KPTC RESET FUSE 240V 250MA RADIAL |
4,979 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 3.5 A | 250 mA | 560 mA | 18.5 s | 1.3 Ohms | 3.8 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.378 L x 0.150 W (9.60mm x 3.80mm) | 0.740 (18.80mm) | - |
|

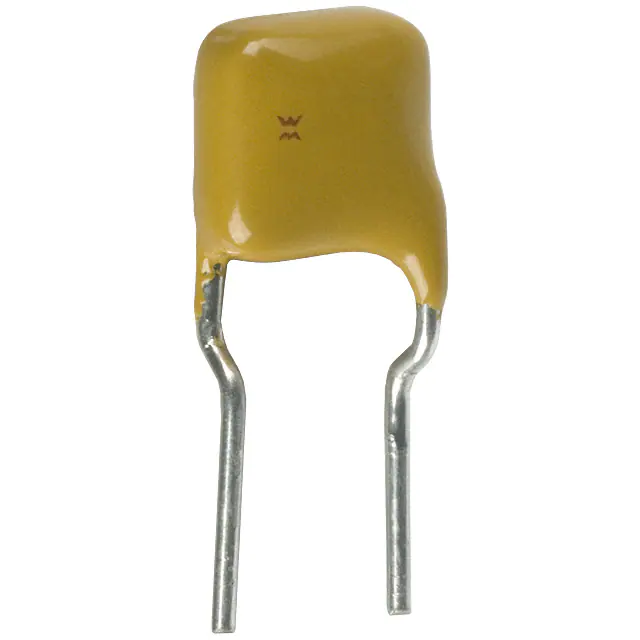

TRF250-120PTC RESET FUSE 60V 120MA RADIAL |
3,599 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
