| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AGRF800S-1PTC RESET FUSE 16V 8A RADIAL |
10,000 | 1.05 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 8 A | 15 A | 5.5 s | 17.5 mOhms | 18.1 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.118 L x 0.118 W (3.00mm x 3.00mm) | 0.874 (22.20mm) | - |
|
0402L005KRPTC 9V POLYFUSE SMT 0402 .05A |
19,945 | 2.80 |
RFQ |
Datasheet |
0402 (1005 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, LoRho | Active | Polymeric | 9V | 40 A | 50 mA | 200 mA | 1.5 s | 1.5 Ohms | 20 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.039 L x 0.020 W (1.00mm x 0.50mm) | - | 0.024 (0.60mm) |
|
LSP380PTC RESET FUSE 16V 3.8A |
9,927 | 1.11 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LSP | Active | Polymeric | 16V | 50 A | 3.8 A | 8 A | 5 s | 13 mOhms | 37 mOhms | 21 mOhms | -40°C ~ 85°C | AEC-Q200 | User Defined | 0.787 L x 0.205 W (20.00mm x 5.20mm) | - | 0.035 (0.90mm) |
|
SRP350DFPOLYSWITCH PTC RESET 3.5A STRAP |
10,000 | 1.14 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch® | Active | Polymeric | 30V | 100 A | 3.5 A | 6.3 A | 3 s | 0.017 Ohms | 0.031 Ohms | - | -40°C ~ 85°C | - | Holder | 1.185 L x 0.522 W (30.10mm x 13.25mm) | - | 0.043 (1.10mm) |
|
RHEF900PTC RESET FUSE 16V 9A RADIAL |
1,216 | 1.27 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 9 A | 16.5 A | 10 s | 7.4 mOhms | 17 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 1.012 (25.70mm) | - |
|
LR4-600FPTC RESET FUSE 20V 6A STRAP |
18,510 | 1.38 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LR4 | Active | Polymeric | 20V | 100 A | 6 A | 11.7 A | 5 s | 7 mOhms | 19 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.559 W (25.00mm x 14.20mm) | - | 0.039 (1.00mm) |
|

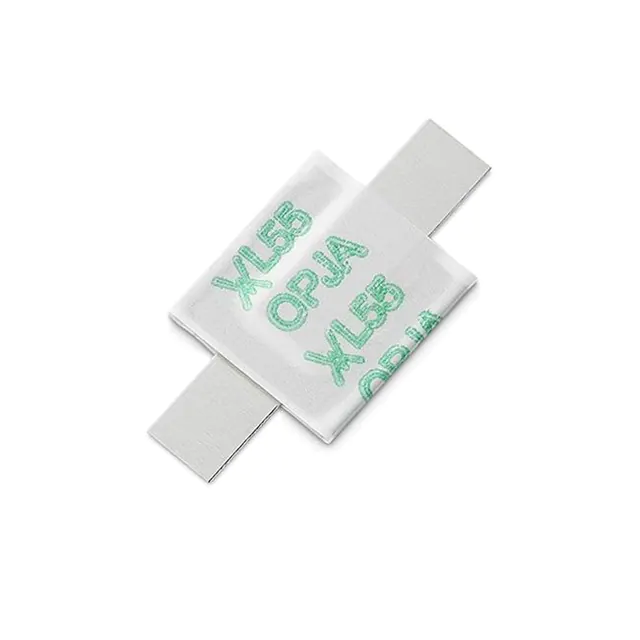

LSP550PTC RESET FUSE 16V 5.5A |
9,878 | 1.38 |
RFQ |
Datasheet |
Strap | Bag | PolySwitch®, LSP | Active | Polymeric | 16V | 50 A | 5.5 A | 10.2 A | 5 s | 8 mOhms | 26 mOhms | 13 mOhms | -40°C ~ 85°C | AEC-Q200 | User Defined | 0.787 L x 0.402 W (20.00mm x 10.20mm) | - | 0.035 (0.90mm) |
|

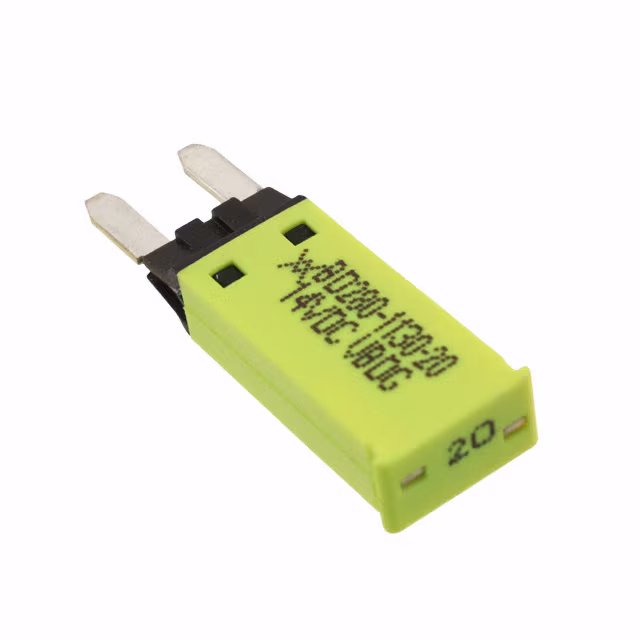

BD280-1130-20/16PTC RESET FUSE 14V 16A BLADE |
1,596 | 7.83 |
RFQ |
Datasheet |
Blade Type | Bulk | PolySwitch®, BD280 | Active | Polymeric | 14V | 100 A | 16 A | 26 A | 10 s | 2.8 Ohms | 6.4 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Holder | 1.193 L x 0.433 W (30.30mm x 11.00mm) | 0.262 (6.65mm) | - |
|
RGEF400K-2PTC RESET FUSE 16V 4A RADIAL |
3,632 | 0.68 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 4 A | 6.8 A | 1.7 s | 21 mOhms | 60 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.331 L x 0.098 W (8.40mm x 2.50mm) | 0.504 (12.80mm) | - |
, Concave.jpg)
|
FEMTOSMDC016F-02PTC RESET FUSE 9V 160MA 0603 |
12,000 | 0.63 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoSMD | Active | Polymeric | 9V | 40 A | 160 mA | 400 mA | 100 ms | 1 Ohms | 4.2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.030 (0.75mm) |
|
MICROSMD110F-2PTC RESET FUSE 6V 1.1A 1210 |
3,591 | 0.46 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Active | Polymeric | 6V | 40 A | 1.1 A | 2.2 A | 200 ms | 70 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.019 (0.48mm) |
|
RXEF025-APPTC RESET FUSE 72V 250MA RADIAL |
1,940 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 250 mA | 500 mA | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|
|
RXEF025-2PTC RESET FUSE 72V 250MA RADIAL |
1,563 | 0.46 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 250 mA | 500 mA | 2.5 s | 1.25 Ohms | 3 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.500 (12.70mm) | - |
|
NANOSMDC150F-2PTC RESET FUSE 6V 1.5A 1206 |
3,563 | 0.47 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoSMD | Active | Polymeric | 6V | 100 A | 1.5 A | 3 A | 300 ms | 40 mOhms | 110 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.59mm) | - | 0.035 (0.89mm) |
|
RUEF090-APPTC RESET FUSE 30V 900MA RADIAL |
4,400 | 0.50 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 900 mA | 1.8 A | 5.9 s | 70 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.291 L x 0.118 W (7.40mm x 3.00mm) | 0.480 (12.20mm) | - |
|
|
NANOASMDC020F-2PTC RESET FUSE 24V 200MA 1206 |
1,100 | 0.50 |
RFQ |
Datasheet |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, nanoASMD | Active | Polymeric | 24V | 100 A | 200 mA | 420 mA | 100 ms | 650 mOhms | 3.1 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.126 L x 0.063 W (3.20mm x 1.59mm) | - | 0.032 (0.82mm) |
|
RXEF065-APPTC RESET FUSE 72V 650MA RADIAL |
1,998 | 0.53 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 650 mA | 1.3 A | 5.3 s | 310 mOhms | 720 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.370 Dia x 0.118 T (9.40mm x 3.00mm) | 0.571 (14.50mm) | - |
|
TCF250-100T-B-0.5PTC RESET FUSE 60V 90MA SMD |
1,976 | 0.53 |
RFQ |
Datasheet |
Nonstandard SMD | Bag | PolySwitch®, TCF250 | Active | Polymeric | 60V (250V Int) | 3 A | 90 mA | 150 mA | 200 ms | 14 Ohms | 24 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.187 L x 0.187 W (4.75mm x 4.75mm) | - | 0.091 (2.30mm) |
|
ZEPTOSMDC0011FPTC RESET FUSE 11MA 13VDC 0201 |
11,476 | 0.54 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | POLYSWITCH® zeptoSMDC | Active | Polymeric | 13V | 82 mA | 11 mA | 80 mA | 20 ms | 10 Ohms | 290 Ohms | - | -20°C ~ 60°C | - | Surface Mount | 0.024 L x 0.018 W (0.60mm x 0.45mm) | - | 0.016 (0.40mm) |
|
72R050XPRPTC RESET FUSE 72V 500MA RADIAL |
1,950 | 0.54 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.311 Dia x 0.122 T (7.90mm x 3.10mm) | 0.539 (13.70mm) | - |
