| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
16R600GPRPTC RESET FUSE 16V 6A RADIAL |
2,193 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Box (TB) | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 6 A | 10.2 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.421 L x 0.118 W (10.70mm x 3.00mm) | 0.673 (17.10mm) | - |
|
|
16R600GUPTC RESET FUSE 16V 6A RADIAL |
3,793 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 16R | Obsolete | Polymeric | 16V | 100 A | 6 A | 10.2 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.421 L x 0.118 W (10.70mm x 3.00mm) | 0.673 (17.10mm) | - |
|

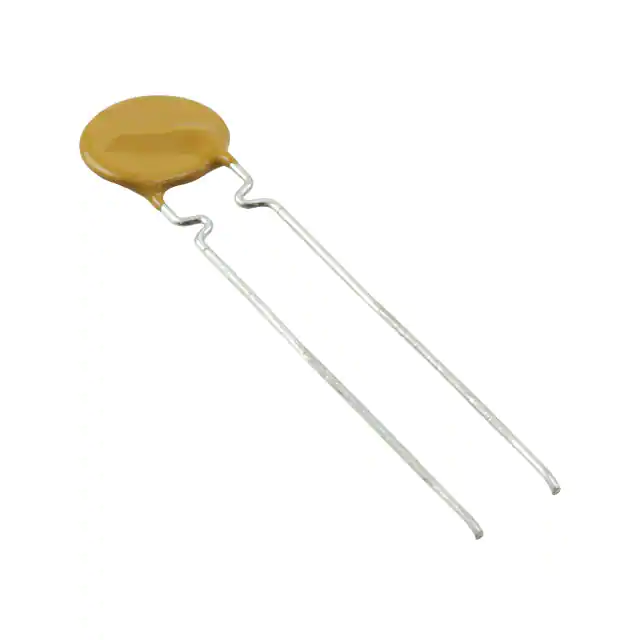

RHEF200-2PTC RESET FUSE 16V 2A RADIAL |
2,245 | 0.72 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 2 A | 3.8 A | 4.3 s | 45 mOhms | 110 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.370 Dia x 0.122 T (9.40mm x 3.10mm) | 0.567 (14.40mm) | - |
|

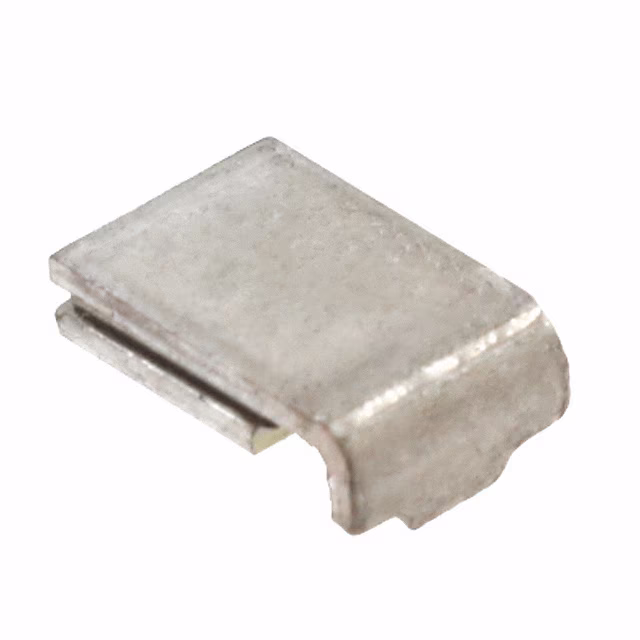

SMDH120-2PTC RESET FUSE 16V 1.2A 2SMD |
1,938 | 0.73 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, SMD | Active | Polymeric | 16V | 50 A | 1.2 A | 2.3 A | 2 s | 150 mOhms | - | - | - | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.118 (3.00mm) |
.jpg)
|
NANOSMD450LR-2PTC RESET FUSE 6V 4.5A 1206 |
2,715 | 0.74 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Obsolete | Polymeric | 6V | 50 A | 4.5 A | 9 A | 2 s | 2 mOhms | 8 mOhms | - | -40°C ~ 80°C | - | Surface Mount | 0.127 L x 0.063 W (3.22mm x 1.61mm) | - | 0.032 (0.80mm) |
|
2920L260PRPTC RESET FUSE 6V 2.6A 2920 |
1,983 | 0.74 |
RFQ |
Datasheet |
2920 (7351 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2920L | Active | Polymeric | 6V | 40 A | 2.6 A | 5 A | 10 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.289 L x 0.202 W (7.35mm x 5.12mm) | - | 0.049 (1.25mm) |
|
16R500GPRPTC RESET FUSE 16V 5A RADIAL |
1,008 | 0.74 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 16R | Active | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.409 L x 0.118 W (10.40mm x 3.00mm) | 0.563 (14.30mm) | - |
|
RGEF500K-2PTC RESET FUSE 16V 5A RADIAL |
2,000 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.390 L x 0.098 W (9.90mm x 2.50mm) | 0.563 (14.30mm) | - |
|
RGEF500K-APPTC RESET FUSE 16V 5A RADIAL |
1,948 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.390 L x 0.098 W (9.90mm x 2.50mm) | 0.563 (14.30mm) | - |
|

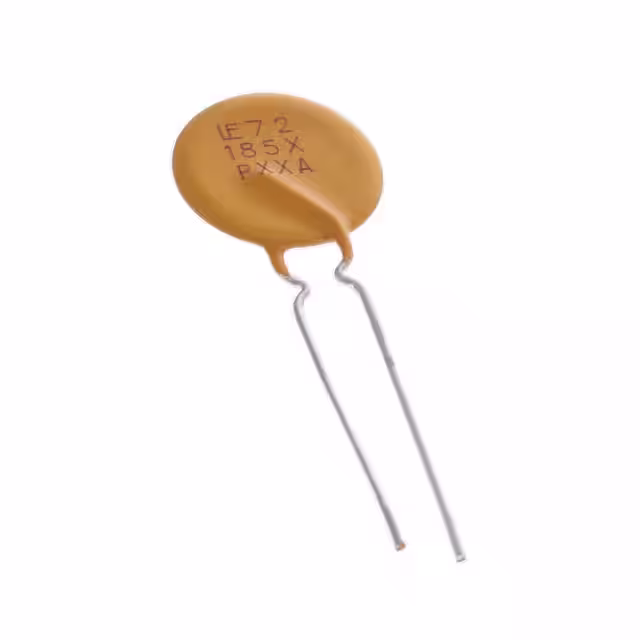

72R185XMRPTC RESET FUSE 72V 1.85A RADIAL |
1,850 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.660 Dia x 0.122 T (16.76mm x 3.10mm) | 0.906 (23.00mm) | - |
|

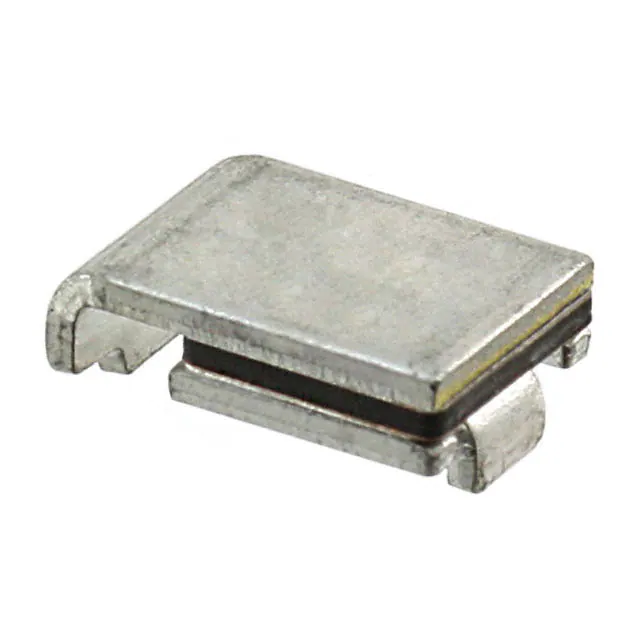

ASMD200F-2PTC RESET FUSE 16V 1.73A 2SMD |
1,440 | 0.77 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 16V | 40 A | 1.73 A | 3.93 A | 30 s | 50 mOhms | 120 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
|
RKEF300-2PTC RESET FUSE 60V 3A RADIAL |
1,065 | 0.77 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RKEF | Active | Polymeric | 60V | 40 A | 3 A | 6 A | 19.8 s | 30 mOhms | 80 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.835 (21.20mm) | - |
|
TRF250-145USTP-B-0.5PTC RESET FUSE 60V 145MA RADIAL |
1,960 | 0.78 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Obsolete | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2 s | 3.5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
, Concave.jpg)
|
FEMTOSMDC012F-2PTC RESET FUSE 9V 120MA 0603 |
4,878 | 0.79 |
RFQ |
Datasheet |
0603 (1608 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoSMDC | Active | Polymeric | 9V | 40 A | 120 mA | 300 mA | 100 ms | 1.1 Ohms | 5.8 Ohms | - | - | - | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.030 (0.75mm) |
|
|
ASMD075F-2PTC RESET FUSE 30V 600MA 2SMD |
1,951 | 0.79 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 30V | 40 A | 600 mA | 1.48 A | 20 s | 290 mOhms | 1 Ohms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.125 (3.18mm) |
|
2016L200PRPTC RESET FUSE 6V 2A 2016 |
1,114 | 0.79 |
RFQ |
Datasheet |
2016 (5041 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | POLY-FUSE®, 2016L | Active | Polymeric | 6V | 40 A | 2 A | 4.2 A | 3 s | 48 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.200 L x 0.160 W (5.08mm x 4.07mm) | - | 0.030 (0.75mm) |
|
|
MICROSMD350LR-2PTC RESET FUSE 6V 3.5A 1206 |
11,345 | 0.80 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Obsolete | Polymeric | 6V | 50 A | 3.5 A | 9 A | 10 s | 2.5 mOhms | - | - | - | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.039 (1.00mm) |
|
MICROSMD500LR-2PTC RESET FUSE 6V 5A 1210 |
2,813 | 0.80 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microSMD | Obsolete | Polymeric | 6V | 50 A | 5 A | 10 A | 2 s | 2 mOhms | 7 mOhms | - | -40°C ~ 80°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.039 (1.00mm) |
|
LVR033K-2PTC RESET FUSE 240V 330MA RADIAL |
1,863 | 0.80 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, LVR | Active | Polymeric | 240V (265V Int) | 4.5 A | 330 mA | 740 mA | 21 s | 770 mOhms | 2.6 Ohms | - | -20°C ~ 85°C | - | Through Hole | 0.449 L x 0.150 W (11.40mm x 3.80mm) | 0.748 (19.00mm) | - |
|
ASMD185F-2PTC RESET FUSE 16V 1.85A 2SMD |
1,199 | 0.80 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 16V | 40 A | 1.85 A | 3.7 A | 11.3 s | 32 mOhms | 126 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
