| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

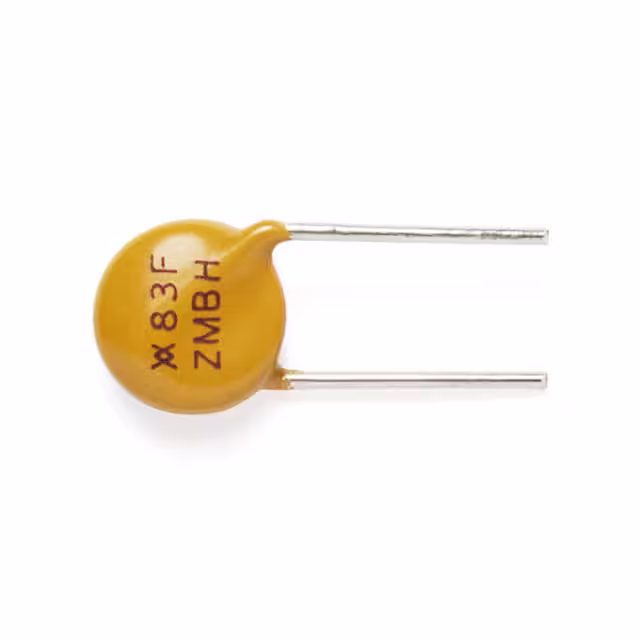

TRF250-183S-2PTC RESET FUSE 100V 183MA RADIAL |
2,870 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 100V (250V Int) | 10 A | 183 mA | 685 mA | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.295 Dia x 0.150 T (7.50mm x 3.80mm) | 0.374 (9.50mm) | - |
|
ASMD250F-2PTC RESET FUSE 16V 1.97A 2SMD |
1,490 | 0.81 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 16V | 40 A | 1.97 A | 5 A | 30 s | 35 mOhms | 85 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
|

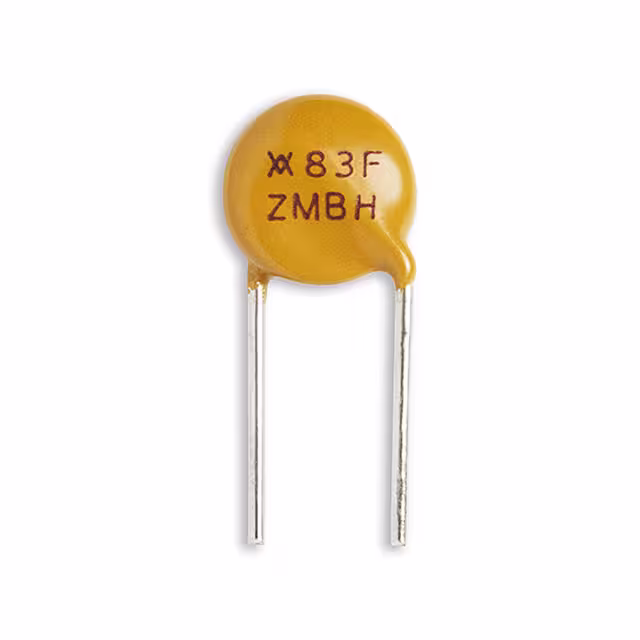

TRF250-183SPTC RESET FUSE 100V 183MA RADIAL |
1,210 | 0.81 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 100V (250V Int) | 10 A | 183 mA | 685 mA | 1.8 s | 800 mOhms | 3.4 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.295 Dia x 0.150 T (7.50mm x 3.80mm) | 0.374 (9.50mm) | - |
|
TRF250-120T-R1-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,028 | 0.87 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
250R120-RAZRPTC RESET FUSE 60V 120MA RADIAL |
1,312 | 0.88 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 2.5 s | 7 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
|
250R145ZRPTC RESET FUSE 60V 145MA RADIAL |
2,385 | 0.88 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB),Tape & Box (TB) | POLY-FUSE®, 250R | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
|
250R145UPTC RESET FUSE 60V 145MA RADIAL |
2,387 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | POLY-FUSE®, 250R | Obsolete | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
TRF250-120T-RF-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
10,660 | 0.89 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 900 ms | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|

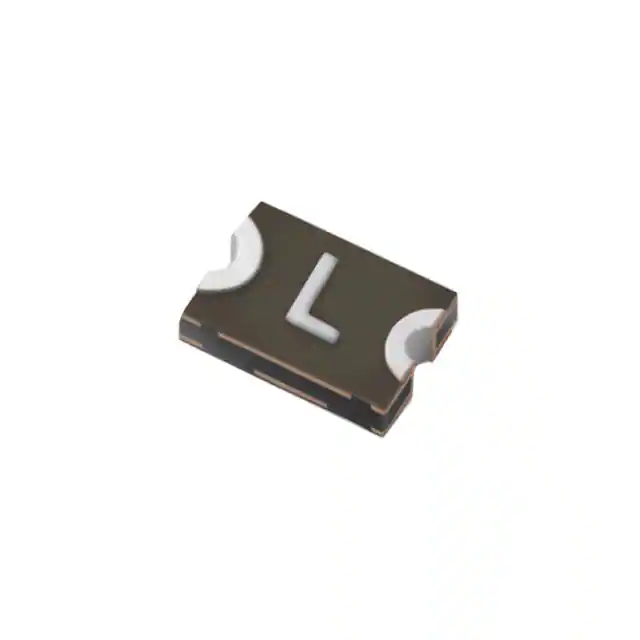

PICOASMDCH005F-2PTC RESET FUSE 0.050A 16V 0805 |
3,276 | 0.82 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, picoASMD | Obsolete | Polymeric | 16V | 40 A | 50 mA | 180 mA | 80 ms | 3.5 Ohms | 38 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.083 L x 0.055 W (2.10mm x 1.40mm) | - | 0.031 (0.80mm) |
|
PICOASMDC010S-2PTC RESET FUSE 15V 100MA 0805 |
2,069 | 0.82 |
RFQ |
Datasheet |
0805 (2012 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, picoASMDC | Active | Polymeric | 15V | 20 A | 100 mA | 300 mA | 600 ms | 1.5 Ohms | 11 Ohms | - | - | PS300, PS400 | Surface Mount | 0.083 L x 0.055 W (2.10mm x 1.40mm) | - | 0.040 (1.02mm) |
|
PICOASMDCH010F-2PTC RESET FUSE 16V 100MA 0805 |
2,003 | 0.82 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, picoASMD | Active | Polymeric | 16V | 40 A | 100 mA | 600 mA | 1.5 s | 1 Ohms | 10 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.083 L x 0.055 W (2.10mm x 1.40mm) | - | 0.031 (0.78mm) |
|

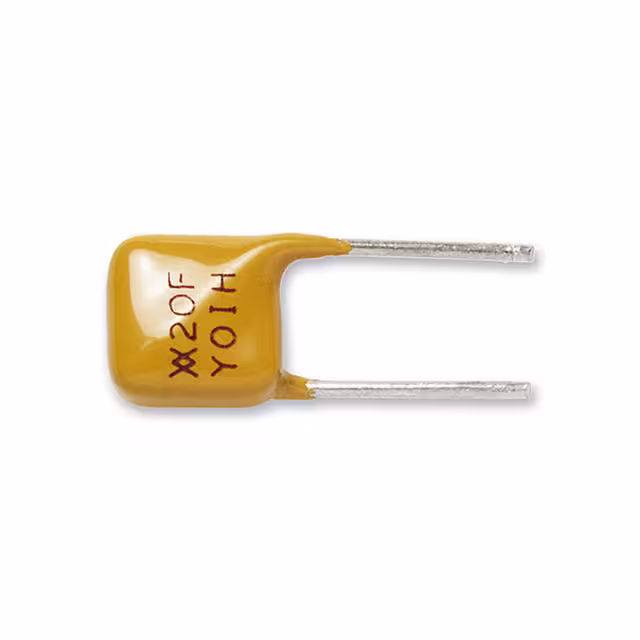

TRF250-120ST-RG-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,904 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Obsolete | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 2.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|

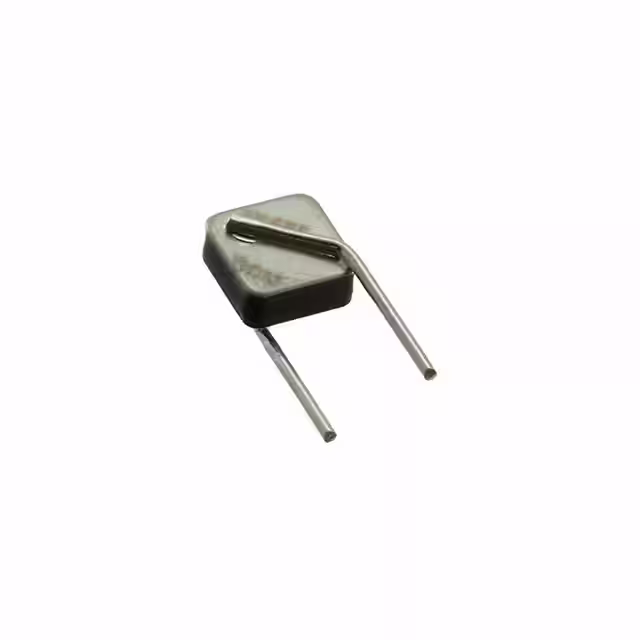

TRF250-145US-B-0.5PTC RESET FUSE 60V 145MA RADIAL |
1,890 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 4 s | 3.5 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|

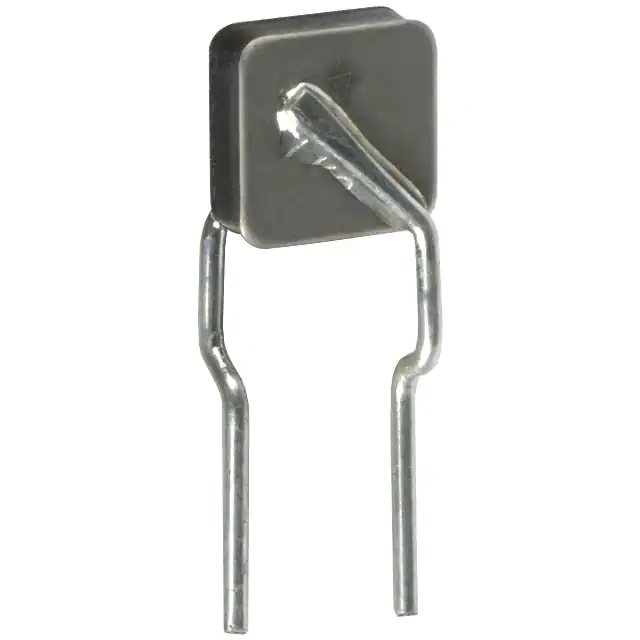

TRF250-120UAPTC RESET FUSE 60V 120MA RADIAL |
1,803 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|
AGRF500-2PTC RESET FUSE 16V 5A RADIAL |
1,742 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 5 A | 9.4 A | 2.5 s | 14 mOhms | 34 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.409 Dia x 0.122 T (10.40mm x 3.10mm) | 0.614 (15.60mm) | - |
|
ASMDC050F-2PTC RESET FUSE 60V 500MA 2SMD |
1,602 | 0.82 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, ASMD | Active | Polymeric | 60V | 10 A | 500 mA | 1 A | 4 s | 150 mOhms | 1.2 Ohms | - | - | PS300, PS400 | Surface Mount | 0.295 L x 0.201 W (7.50mm x 5.10mm) | - | 0.035 (0.90mm) |
|
|
TRF250-145-RA-B0.5-2PTC RESET FUSE 60V 145MA RADIAL |
2,829 | 0.83 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Obsolete | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 2.5 s | 3 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
TRF250-120UST-B-0.5PTC RESET FUSE 60V 120MA RADIAL |
1,626 | 0.83 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, TRF250 | Obsolete | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - |
|
TRF250-145-2PTC RESET FUSE 60V 145MA RADIAL |
2,250 | 0.84 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF250 | Active | Polymeric | 60V (250V Int) | 3 A | 145 mA | 290 mA | 5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
TCF250-120T-B-0.5PTC RESET FUSE 60V 120MA SMD |
1,866 | 0.84 |
RFQ |
Datasheet |
Nonstandard SMD | Bag | PolySwitch®, TCF250 | Active | Polymeric | 60V (250V Int) | 3 A | 120 mA | 240 mA | 600 ms | 6.3 Ohms | 18 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.217 L x 0.217 W (5.50mm x 5.50mm) | - | 0.091 (2.30mm) |
