| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PICOASMDCH050F-2PPTC-MINI-PSW |
925 | 0.82 |
RFQ |
Datasheet |
0805 (2012 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, picoASMD | Active | Polymeric | 16V | 40 A | 500 mA | 1.7 A | 100 ms | 250 mOhms | 1.6 Ohms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | 0.083 L x 0.055 W (2.10mm x 1.40mm) | - | 0.047 (1.20mm) |
|
RXEF250-2PTC RESET FUSE 72V 2.5A RADIAL |
785 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 2.5 A | 5 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.819 Dia x 0.118 T (20.80mm x 3.00mm) | 1.000 (25.40mm) | - |
|
AGRF600PTC RESET FUSE 16V 6A RADIAL |
477 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 6 A | 10.7 A | 3.5 s | 9.5 mOhms | 28 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.421 L x 0.118 W (10.70mm x 3.00mm) | 0.724 (18.40mm) | - |
|
RUEF500K-APPTC RESET FUSE 30V 5A RADIAL |
1,000 | 0.83 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 5 A | 10 A | 14.5 s | 10 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.551 L x 0.118 W (14.00mm x 3.00mm) | 1.008 (25.60mm) | - |
|
RXEF300-1PTC RESET FUSE 72V 3A RADIAL |
250 | 0.98 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.941 Dia x 0.118 T (23.90mm x 3.00mm) | 1.126 (28.60mm) | - |
|
AHRL550PTC RESET FUSE 5.5A 16V RAD |
478 | 1.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 50 A | 5.5 A | 11 A | 6 s | 12 mOhms | 22 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.370 L x 0.118 W (9.40mm x 3.00mm) | 0.567 (14.40mm) | - |
|
|
AHRL500PTC RESET FUSE 5A 16V RAD |
356 | 1.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 50 A | 5 A | 10 A | 5.8 s | 13.5 mOhms | 24 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.362 L x 0.118 W (9.20mm x 3.00mm) | 0.555 (14.10mm) | - |
|
|
RXEF300KPTC RESET FUSE 72V 3A RADIAL |
154 | 1.02 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 3 A | 6 A | 19.8 s | 40 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.910 Dia x 0.118 T (23.11mm x 3.00mm) | 1.154 (29.30mm) | - |
|
|
AHRL600PTC RESET FUSE 6A 16V RAD |
480 | 1.03 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 50 A | 6 A | 13 A | 6.5 s | 9 mOhms | 14 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.344 L x 0.118 W (8.75mm x 3.00mm) | 0.630 (16.00mm) | - |
|
RGEF1000-1PTC RESET FUSE 16V 10A RADIAL |
490 | 1.10 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 10 A | 17 A | 6 s | 4 mOhms | 10.2 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.098 W (16.50mm x 2.50mm) | 0.992 (25.20mm) | - |
|
AHRL650PTC RESET FUSE 6.5A 16V RAD |
216 | 1.10 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 50 A | 6.5 A | 13 A | 6.5 s | 9.5 mOhms | 15 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.421 L x 0.118 W (10.70mm x 3.00mm) | 0.685 (17.40mm) | - |
|
|
AHRL700PTC RESET FUSE 7A 16V RAD |
466 | 1.14 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 7 A | 14 A | 6.8 s | 8.5 mOhms | 14 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.465 L x 0.118 W (11.80mm x 3.00mm) | 0.685 (17.40mm) | - |
|
|
AHRL750PTC RESET FUSE 7.5A 16V RAD |
470 | 1.22 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 7.5 A | 15 A | 7 s | 7.3 mOhms | 12.5 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.465 L x 0.118 W (11.80mm x 3.00mm) | 0.748 (19.00mm) | - |
|
TRF600-150-B-0.5-2PTC RESET FUSE 250V 150MA RADIAL |
259 | 1.20 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 40 A | 150 mA | 300 mA | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - |
|
|
TRF600-150-B-0.5PTC RESET FUSE 250V 150MA RADIAL |
1,443 | 1.24 |
RFQ |
Datasheet |
Radial, Disc | Bag,Bag | PolySwitch®, TRF600 | Active | Polymeric | 250V (600V Int) | 40 A | 150 mA | 300 mA | 4 s | 6 Ohms | 17 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.354 L x 0.181 W (9.00mm x 4.60mm) | 0.492 (12.50mm) | - |
|
|
AHRL800PTC RESET FUSE 8A 16V RAD |
540 | 1.32 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 8 A | 16 A | 8 s | 6 mOhms | 10.5 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.504 L x 0.142 W (12.80mm x 3.60mm) | 0.803 (20.40mm) | - |
|
AHRF900PTC RESET FUSE 16V 9A RADIAL |
250 | 1.38 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, AHRF | Active | Polymeric | 16V | 100 A | 9 A | 18.5 A | 11.5 s | 6.1 mOhms | 17 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 1.012 (25.70mm) | - |
|
|
AHRL900PTC RESET FUSE 9A 16V RAD |
245 | 1.52 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 9 A | 18 A | 9 s | 4.6 mOhms | 7.5 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.567 L x 0.142 W (14.40mm x 3.60mm) | 0.843 (21.40mm) | - |
|
AHRL1100PTC RESET FUSE 11A 16V RAD |
250 | 1.69 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, AHRL | Active | Polymeric | 16V | 100 A | 11 A | 22 A | 11.2 s | 3.8 mOhms | 6.3 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Through Hole | 0.685 L x 0.142 W (17.40mm x 3.60mm) | 0.882 (22.40mm) | - |
|

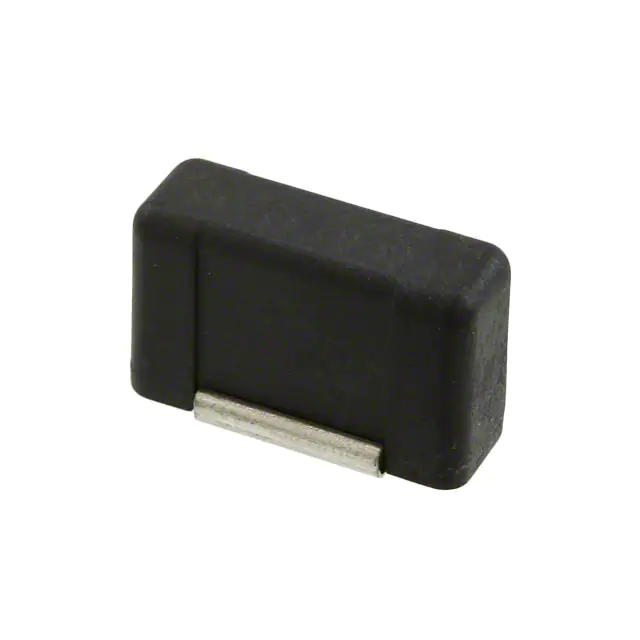

TS600-400F-2PTC RESET FUSE 60V 400MA 2SMD |
579 | 2.52 |
RFQ |
Datasheet |
2-SMD | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, TS600 | Active | Polymeric | 60V (600V Int) | 60 A | 400 mA | 1 A | 14 s | 500 mOhms | 2 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.742 L x 0.305 W (18.85mm x 7.75mm) | - | 0.484 (12.30mm) |
