| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FEMTOASMDC008F-2PTC RESET FUSE 12V 80MA 0603 |
2,920 | 0.90 |
RFQ |
Datasheet |
0603 (1608 Metric) | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, femtoASMD | Active | Polymeric | 12V | 10 A | 80 mA | 200 mA | 100 ms | 2.8 Ohms | 14 Ohms | - | - | PS300, PS400 | Surface Mount | 0.063 L x 0.032 W (1.60mm x 0.80mm) | - | 0.033 (0.85mm) |
|

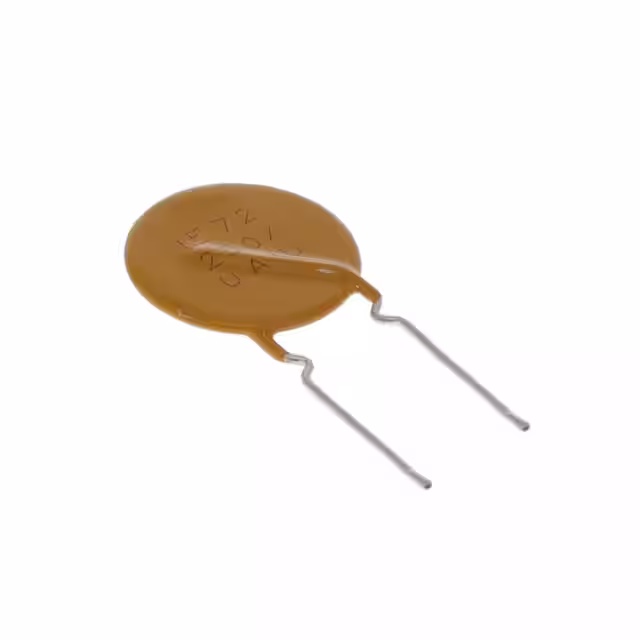

72R250XMRPTC RESET FUSE 72V 2.5A RADIAL |
3,096 | 0.88 |
RFQ |
Datasheet |
Radial, Disc | Cut Tape (CT),Tape & Box (TB) | POLY-FUSE®, 72R | Active | Polymeric | 72V | 40 A | 2.5 A | 5 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.785 Dia x 0.122 T (19.93mm x 3.10mm) | 1.032 (26.20mm) | - |
|
RGEF900-2PTC RESET FUSE 16V 9A RADIAL |
3,965 | 0.83 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 9 A | 15.3 A | 5.5 s | 4.7 mOhms | 13.5 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.532 L x 0.100 W (13.50mm x 2.50mm) | 0.854 (21.70mm) | - |
|
|
RUEF700K-2PTC RESET FUSE 30V 7A RADIAL |
1,000 | 0.85 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 7 A | 14 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.752 L x 0.118 W (19.10mm x 3.00mm) | 1.091 (27.70mm) | - |
|
NANOASMDCH075F-2PPTC-MINI-PSW |
3,436 | 1.10 |
RFQ |
1206 (3216 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®nanoASMDCH | Active | Polymeric | 12V | 40 A | 750 mA | 2.25 A | 150 ms | 80 mOhms | 460 mOhms | - | -40°C ~ 125°C | AEC-Q200 | Surface Mount | - | - | 0.039 (1.00mm) | |
|
|
MICROASMDCH150F-2PPTC-MINI-PSW |
3,982 | 1.10 |
RFQ |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microASMD | Active | Polymeric | 12V | 40 A | 1.5 A | 4.5 A | 1 s | 25 mOhms | 250 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.055 (1.40mm) | |
|
|
MICROASMDCH075F-2PPTC-MINI-PSW |
3,600 | 1.10 |
RFQ |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microASMD | Active | Polymeric | 16V | 20 A | 750 mA | 2.25 A | 100 ms | 100 mOhms | 680 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.024 (0.60mm) | |
|
|
MICROASMDCH110F-2PPTC-MINI-PSW |
2,053 | 1.10 |
RFQ |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microASMD | Active | Polymeric | 16V | 20 A | 1.1 A | 3.3 A | 500 ms | 60 mOhms | 500 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.041 (1.05mm) | |
|
|
MICROASMDCH125F-2PPTC-MINI-PSW |
3,466 | 1.10 |
RFQ |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, microASMD | Active | Polymeric | 12V | 40 A | 1.25 A | 3.75 A | 1 s | 30 mOhms | 300 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.055 (1.40mm) | |
|
RGEF1200-2PTC RESET FUSE 16V 12A RADIAL |
159 | 1.06 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 12 A | 20.4 A | 7.5 s | 3.3 mOhms | 8.6 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.670 L x 0.115 W (16.95mm x 2.90mm) | 1.102 (28.00mm) | - |
|
AGRF1100-2PTC RESET FUSE 16V 11A RADIAL |
2,960 | 1.19 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, AGRF | Active | Polymeric | 16V | 100 A | 11 A | 20.3 A | 7.5 s | 3.3 mOhms | 8.9 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.043 (26.50mm) | - |
|
1210L005/90WR1210L |
2,365 | 1.37 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch® 1210L | Active | Polymeric | 90V | 10 A | 50 mA | 150 mA | 200 ms | 3.6 Ohms | 50 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.049 (1.25mm) |
|
|
1210L010/90WR1210L |
3,479 | 1.37 |
RFQ |
Datasheet |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch® 1210L | Active | Polymeric | 90V | 10 A | 100 mA | 250 mA | 300 ms | 1.5 Ohms | 15 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.101 W (3.22mm x 2.58mm) | - | 0.049 (1.25mm) |
|
RXEF135-1PTC RESET FUSE 72V 1.35A RADIAL |
3,388 | 0.58 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.571 Dia x 0.118 T (14.50mm x 3.00mm) | 0.752 (19.10mm) | - |
|
RHEF1000-2PTC RESET FUSE 16V 10A RADIAL |
325 | 1.24 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT) | PolySwitch®, RHEF | Active | Polymeric | 16V | 100 A | 10 A | 18.5 A | 9 s | 6.2 mOhms | 15 mOhms | - | -40°C ~ 125°C | - | Through Hole | 0.689 L x 0.118 W (17.50mm x 3.00mm) | 1.043 (26.50mm) | - |
|
RXEF185-1PTC RESET FUSE 72V 1.85A RADIAL |
2,413 | 0.66 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 1.85 A | 3.7 A | 12.6 s | 80 mOhms | 190 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.689 Dia x 0.118 T (17.50mm x 3.00mm) | 0.882 (22.40mm) | - |
|
RGEF600KPTC RESET FUSE 16V 6A RADIAL |
2,850 | 0.75 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RGEF | Active | Polymeric | 16V | 100 A | 6 A | 10.2 A | 3.3 s | 10 mOhms | 28 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.421 L x 0.098 W (10.70mm x 2.50mm) | 0.709 (18.00mm) | - |
|
MINIASMDC075F/33-2PTC RESET FUSE 33V 750MA 1812 |
2,222 | 0.79 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Bulk | PolySwitch®, miniASMD | Active | Polymeric | 33V | 100 A | 750 mA | 1.6 A | 1 s | 110 mOhms | 390 mOhms | - | -40°C ~ 85°C | AEC-Q200 | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.057 (1.46mm) |
|
RXEF250KPTC RESET FUSE 72V 2.5A RADIAL |
2,180 | 0.82 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RXEF | Active | Polymeric | 72V | 40 A | 2.5 A | 5 A | 15.6 s | 50 mOhms | 130 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.785 Dia x 0.118 T (19.93mm x 3.00mm) | 1.032 (26.20mm) | - |
|
|
RUEF600-1PTC RESET FUSE 30V 6A RADIAL |
3,046 | 0.89 |
RFQ |
Datasheet |
Radial, Disc | Bag | PolySwitch®, RUEF | Active | Polymeric | 30V | 100 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.949 (24.10mm) | - |
