| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SMD075-2POLYSWITCH 0.75A HOLD SMD |
2,505 | 0.00 |
RFQ |
Datasheet |
2920 (7351 Metric) | Cut Tape (CT) | PolySwitch®, SMD | Obsolete | Polymeric | 30V | 40 A | 750 mA | 1.5 A | 300 ms | 350 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.125 (3.18mm) |
|
|
SMD125-2POLYSWITCH 1.25A HOLD SMD |
2,540 | 0.00 |
RFQ |
Datasheet |
2920 (7351 Metric) | Cut Tape (CT) | PolySwitch®, SMD | Obsolete | Polymeric | 15V | 40 A | 1.25 A | 2.5 A | 2 s | 70 mOhms | - | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.118 (3.00mm) |
|
|
SMD030-2POLYSWITCH 0.30A HOLD SMD |
3,186 | 0.00 |
RFQ |
Datasheet |
2920 (7351 Metric) | Cut Tape (CT) | PolySwitch®, SMD | Obsolete | Polymeric | 60V | 10 A | 300 mA | 600 mA | 3 s | 1.2 Ohms | 4.8 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.125 (3.18mm) |
|
|
SMD200-2POLYSWITCH 2.00A HOLD SMD |
3,986 | 0.00 |
RFQ |
2-SMD | Cut Tape (CT) | PolySwitch®, SMD | Obsolete | Polymeric | 15V | 40 A | 2 A | 4 A | 12 s | 50 mOhms | 125 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) | |
|
MINISMD075-2PTC RESET FUSE 750MA 1812 |
3,052 | 0.00 |
RFQ |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch® | Obsolete | - | - | - | 750 mA | - | - | - | - | - | - | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.024 (0.62mm) | |
|
TR250-120PTC RESET FUSE 250V 120MA RADIAL |
2,816 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 250V (60V Int) | 3 A | 120 mA | - | 1.5 s | 4 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
TR250-180UPTC RESET FUSE 180MA RADIAL |
3,461 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch® | Obsolete | - | - | - | 180 mA | - | - | - | - | - | - | - | Through Hole | 0.409 L x 0.142 W (10.40mm x 3.60mm) | 0.496 (12.60mm) | - | |
|
TR600-150PTC RESET FUSE 60V 150MA RADIAL |
2,860 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, TR600 | Obsolete | Polymeric | 60V (600V Int) | 3 A | 150 mA | - | 8 s | 6 Ohms | 22 Ohms | - | - | - | Through Hole | 0.532 L x 0.236 W (13.50mm x 6.00mm) | 0.496 (12.60mm) | - |
|
|
SMD150-2POLYSWITCH 1.50A HOLD SMD |
3,917 | 0.00 |
RFQ |
Datasheet |
2-SMD | Cut Tape (CT) | PolySwitch®, SMD | Obsolete | Polymeric | 15V | 40 A | 1.5 A | 3 A | 5 s | 60 mOhms | 250 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.343 L x 0.250 W (8.70mm x 6.36mm) | - | 0.118 (3.00mm) |
|
|
SMD100-2POLYSWITCH 1.10A HOLD SMD |
3,004 | 0.00 |
RFQ |
Datasheet |
2920 (7351 Metric) | Cut Tape (CT) | PolySwitch®, SMD | Obsolete | Polymeric | 30V | 40 A | 1.1 A | 2.2 A | 500 ms | 120 mOhms | 480 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.200 L x 0.180 W (5.08mm x 4.58mm) | - | 0.060 (1.52mm) |
|
|
SMD050-2POLYSWITCH 0.50A HOLD SMD |
3,267 | 0.00 |
RFQ |
2920 (7351 Metric) | Cut Tape (CT) | PolySwitch®, SMD | Obsolete | Polymeric | 60V | 10 A | 500 mA | 1 A | 4 s | 350 mOhms | 1.4 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.125 (3.18mm) | |
|
|
RUE800PTC RESET FUSE 30V 8A RADIAL |
3,325 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 30V | 40 A | 8 A | 16 A | 18.8 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.850 L x 0.118 W (21.60mm x 3.00mm) | 1.150 (29.20mm) | - |
|
SRP350PTC RESET FUSE 30V 3.5A STRAP |
2,824 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, SRP | Obsolete | Polymeric | 30V | 100 A | 3.5 A | 6.3 A | 3 s | 17 mOhms | 50 mOhms | - | -40°C ~ 85°C | - | User Defined | 1.185 L x 0.522 W (30.10mm x 13.25mm) | - | 0.043 (1.10mm) |
|
|
SRP200PTC RESET FUSE 30V 2A STRAP |
2,145 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, SRP | Obsolete | Polymeric | 30V | 100 A | 2 A | 4.4 A | 4 s | 30 mOhms | 100 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.880 L x 0.417 W (22.35mm x 10.60mm) | - | 0.043 (1.10mm) |
|
RXE135PTC RESET FUSE 60V 1.35A RADIAL |
2,254 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch®, RXE | Obsolete | Polymeric | 60V | 40 A | 1.35 A | 2.7 A | 9.6 s | 120 mOhms | 300 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.571 Dia x 0.118 T (14.50mm x 3.00mm) | 0.752 (19.10mm) | - | |
|
TR250-145UPTC RESET FUSE 250V 145MA RADIAL |
2,835 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 250V (60V Int) | 3 A | 145 mA | - | 2 s | 3.5 Ohms | 12 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.236 L x 0.150 W (6.00mm x 3.80mm) | 0.394 (10.00mm) | - | |
|
TR250-120UPTC RESET FUSE 250V 120MA RADIAL |
3,413 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 250V (60V Int) | 3 A | 120 mA | - | 1 s | 6 Ohms | 16 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - |
|
|
TR250-145PTC RESET FUSE 250V 145MA RADIAL |
3,626 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 250V (60V Int) | 3 A | 145 mA | - | 2.5 s | 3 Ohms | 14 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.256 L x 0.181 W (6.50mm x 4.60mm) | 0.433 (11.00mm) | - | |
|

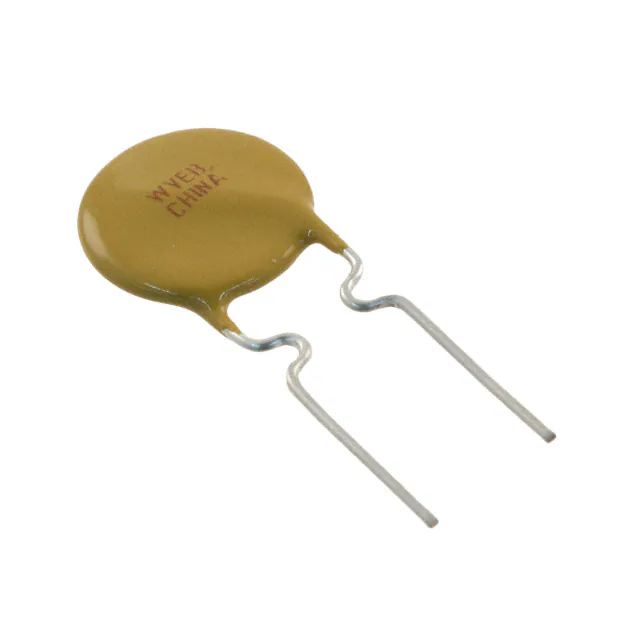

RXE075PTC RESET FUSE 60V 750MA RADIAL |
2,491 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch®, RXE | Obsolete | Polymeric | 60V | 40 A | 750 mA | 1.5 A | 6.3 s | 250 mOhms | 600 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 Dia x 0.118 T (10.20mm x 3.00mm) | 0.598 (15.20mm) | - | |
|
RUE185PTC RESET FUSE 30V 1.85A RADIAL |
3,580 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 30V | 40 A | 1.85 A | 3.7 A | 8.7 s | 30 mOhms | 90 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.402 L x 0.118 W (10.20mm x 3.00mm) | 0.618 (15.70mm) | - |
