| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Voltage-Max | Current-Max | Current-Hold(Ih)(Max) | Current-Trip(It) | TimetoTrip | Resistance-Initial(Ri)(Min) | Resistance-PostTrip(R1)(Max) | Resistance-25°C(Typ) | OperatingTemperature | Ratings | MountingType | Size/Dimension | Height-Seated(Max) | Thickness(Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
RXE010PTC RESET FUSE 60V 100MA RADIAL |
2,787 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch®, RXE | Obsolete | Polymeric | 60V | 40 A | 100 mA | 200 mA | 4 s | 2.5 Ohms | 7.5 Ohms | - | - | - | Through Hole | 0.291 Dia x 0.118 T (7.40mm x 3.00mm) | 0.457 (11.60mm) | - |
|
RUE900PTC RESET FUSE 30V 9A RADIAL |
2,195 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 30V | 40 A | 9 A | 18 A | 20 s | 5 mOhms | 20 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.949 L x 0.120 W (24.10mm x 3.00mm) | 1.169 (29.70mm) | - |
|
|
RUE600PTC RESET FUSE 30V 6A RADIAL |
2,617 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 30V | 40 A | 6 A | 12 A | 16 s | 5 mOhms | 40 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.650 L x 0.118 W (16.50mm x 3.00mm) | 0.980 (24.90mm) | - |
|
|
RUE700PTC RESET FUSE 30V 7A RADIAL |
2,501 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 30V | 40 A | 7 A | 14 A | 17.5 s | 5 mOhms | 30 mOhms | - | -40°C ~ 85°C | - | Through Hole | 0.752 L x 0.118 W (19.10mm x 3.00mm) | 1.051 (26.70mm) | - |
|
SRP120PTC RESET FUSE 15V 1.2A STRAP |
3,808 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, SRP | Obsolete | Polymeric | 15V | 100 A | 1.2 A | 2.7 A | 5 s | 85 mOhms | 220 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.827 L x 0.199 W (21.00mm x 5.05mm) | - | 0.039 (1.00mm) |
|
RXE050-2PTC RESET FUSE 72V 500MA RADIAL |
3,986 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RXE | Obsolete | Polymeric | 72V | 40 A | 500 mA | 1 A | 4 s | 500 mOhms | 1.17 Ohms | - | - | - | Through Hole | 0.311 Dia x 0.118 T (7.90mm x 3.00mm) | 0.539 (13.70mm) | - |
|
RXE110-2PTC RESET FUSE 72V 1.1A RADIAL |
2,507 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Tape & Reel (TR) | PolySwitch®, RXE | Obsolete | Polymeric | 72V | 40 A | 1.1 A | 2.2 A | 8.2 s | 150 mOhms | 380 mOhms | - | - | - | Through Hole | 0.504 Dia x 0.118 T (12.80mm x 3.00mm) | 0.689 (17.50mm) | - |
|
|
LTP180PTC RESET FUSE 24V 1.8A STRAP |
2,577 | 0.00 |
RFQ |
Datasheet |
Strap | Bulk | PolySwitch®, LTP | Obsolete | Polymeric | 24V | 100 A | 1.8 A | 3.8 A | 2.9 s | 40 mOhms | 120 mOhms | - | -40°C ~ 85°C | - | User Defined | 0.984 L x 0.199 W (25.00mm x 5.05mm) | - | 0.039 (1.00mm) |
|
RGE300PTC RESET FUSE 16V 3A RADIAL |
3,805 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 3 A | 5.1 A | 1 s | 38 mOhms | - | - | - | - | Through Hole | 0.260 L x 0.098 W (6.60mm x 2.50mm) | 0.433 (11.00mm) | - | |
|
RGE500PTC RESET FUSE 16V 5A RADIAL |
2,945 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 5 A | 8.5 A | 2 s | 15 mOhms | 34 mOhms | - | - | - | Through Hole | 0.390 L x 0.098 W (9.90mm x 2.50mm) | 0.563 (14.30mm) | - | |
|
RGE700PTC RESET FUSE 16V 7A RADIAL |
3,309 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 7 A | 11.9 A | 3.5 s | 8 mOhms | 20 mOhms | - | - | - | Through Hole | 0.441 L x 0.118 W (11.20mm x 3.00mm) | 0.776 (19.70mm) | - | |
|

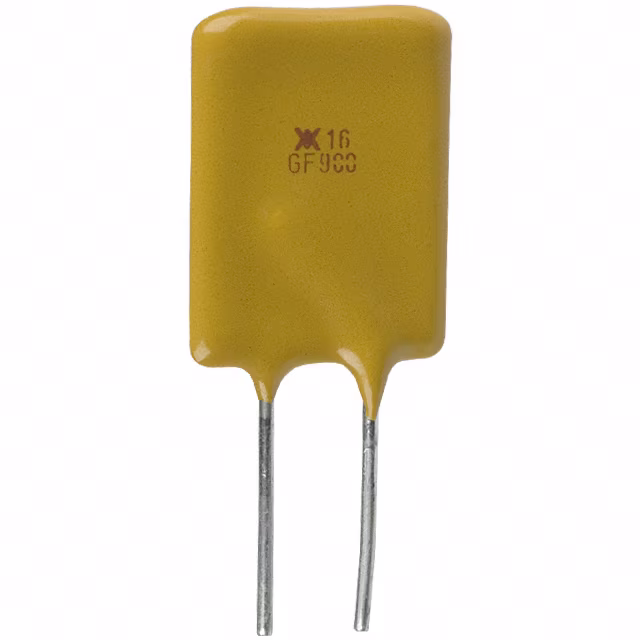

RGE900PTC RESET FUSE 16V 9A RADIAL |
3,713 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 9 A | 15.3 A | 5.5 s | 5 mOhms | 14 mOhms | - | - | - | Through Hole | 0.530 L x 0.100 W (13.50mm x 2.50mm) | 0.854 (21.70mm) | - | |
|

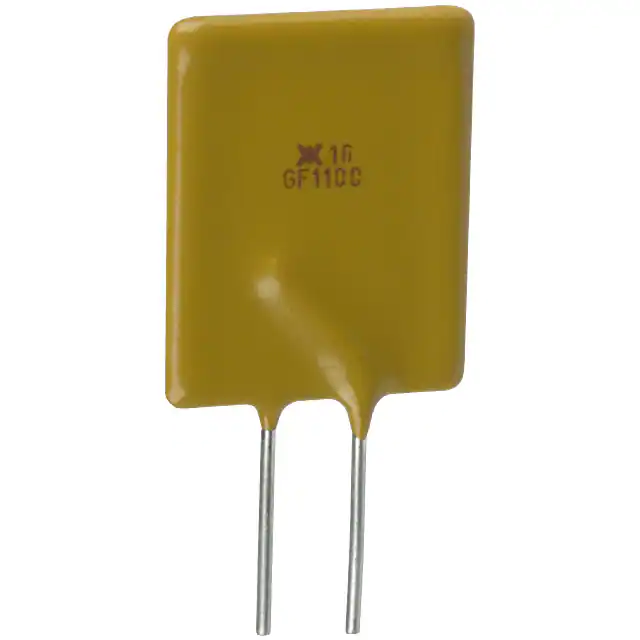

RGE1100PTC RESET FUSE 16V 11A RADIAL |
2,636 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 16V | 100 A | 11 A | 18.7 A | 7 s | 3.7 mOhms | 8.9 mOhms | - | - | - | Through Hole | 0.669 L x 0.098 W (17.00mm x 2.50mm) | 1.024 (26.00mm) | - |
|
TR250-080UPTC RESET FUSE 250V 80MA RADIAL |
2,040 | 0.00 |
RFQ |
Datasheet |
Radial, Disc | Bulk | PolySwitch® | Obsolete | Polymeric | 250V (60V Int) | 3 A | 80 mA | - | 3 s | 14 Ohms | 33 Ohms | - | -40°C ~ 85°C | - | Through Hole | 0.189 Dia x 0.150 T (4.80mm x 3.80mm) | 0.366 (9.30mm) | - |
|
TR600-150-RA-B-0.5PTC RESET FUSE RADIAL DISC |
2,293 | 0.00 |
RFQ |
Radial, Disc | Bulk | PolySwitch®, TR600 | Obsolete | Polymeric | - | - | - | - | - | - | - | - | - | - | Through Hole | 0.532 L x 0.236 W (13.50mm x 6.00mm) | 0.496 (12.60mm) | - | |
|
MINISMDC035-2PTC RESET FUSE 6V 350MA 1210 |
3,344 | 0.00 |
RFQ |
1210 (3225 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Obsolete | - | 6V | 40 A | 350 mA | 700 mA | 0.1 s | 320 mOhms | 1.3 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.127 L x 0.102 W (3.22mm x 2.58mm) | - | 0.024 (0.62mm) | |
|
|
MINISMDC050-2PTC RESET FUSE 24V 500MA 1812 |
3,840 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Obsolete | Polymeric | 24V | 100 A | 500 mA | - | 150 ms | 150 mOhms | 1 Ohms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.024 (0.62mm) |
|
|
MINISMDC075-2PTC RESET FUSE 13.2V 750MA 1812 |
3,170 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Obsolete | Polymeric | 13.2V | 100 A | 750 mA | 1.5 A | 200 ms | 110 mOhms | 450 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.024 (0.62mm) |
|
|
MINISMDC110-2PTC RESET FUSE 8V 1.1A 1812 |
2,331 | 0.00 |
RFQ |
Datasheet |
1812 (4532 Metric), Concave | Tape & Reel (TR),Cut Tape (CT) | PolySwitch®, miniSMD | Obsolete | Polymeric | 8V | 100 A | 1.1 A | 2.2 A | 300 ms | 40 mOhms | 210 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.179 L x 0.128 W (4.55mm x 3.24mm) | - | 0.024 (0.62mm) |
|
SMD260-2POLYSWITCH 2.6A RESET FUSE SMD |
2,145 | 0.00 |
RFQ |
Datasheet |
2920 (7351 Metric) | Cut Tape (CT) | PolySwitch®, SMD | Obsolete | Polymeric | 6V | 40 A | 2.6 A | 5.2 A | 20 s | 25 mOhms | 75 mOhms | - | -40°C ~ 85°C | - | Surface Mount | 0.290 L x 0.202 W (7.36mm x 5.12mm) | - | 0.118 (3.00mm) |
