| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-3181UPWR XFMR LAMINATED 50VA CHAS MT |
2,273 | 32.67 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 12.6V | 4A | Dual | Single | Yes | 50VA | Chassis Mount | Wire Leads | 80.95mm L x 60.33mm W | 65.07mm | 2000Vrms |
|
VPM30-830PWR XFMR TORO 25VA CHAS MT |
3,861 | 32.97 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 15V, Series 30V | Parallel 1.66A, Series 830mA | Dual, Multiple Taps | Dual | No | 25VA | Chassis Mount | Wire Leads | 84.00mm Dia | 37.00mm | 4000Vrms |
|
|
VPM36-690PWR XFMR TORO 25VA CHAS MT |
2,609 | 32.97 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 18V, Series 36V | Parallel 1.38A, Series 690mA | Dual, Multiple Taps | Dual | No | 25VA | Chassis Mount | Wire Leads | 84.00mm Dia | 37.00mm | 4000Vrms |
|
|
VPM48-520PWR XFMR TORO 25VA CHAS MT |
3,463 | 32.97 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 1.04A, Series 520mA | Dual, Multiple Taps | Dual | No | 25VA | Chassis Mount | Wire Leads | 84.00mm Dia | 37.00mm | 4000Vrms |
|

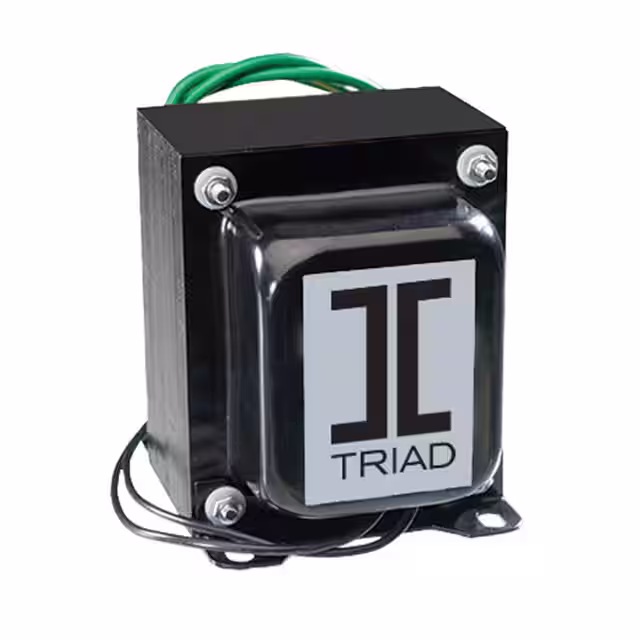

F-21APWR XFMR LAMINATED 63VA CHAS MT |
2,759 | 37.47 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 6.3V | 10A | Single | Single | Yes | 63VA | Chassis Mount | Wire Leads | 79.38mm L x 75.39mm W | 91.26mm | 1500Vrms |
|
|
F-183UPWR XFMR LAMINATED 100.8VA CHAS |
2,662 | 37.48 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12.6V | 8A | Single | Single | Yes | 100.8VA | Chassis Mount | Wire Leads | 80.95mm L x 74.60mm W | 96.82mm | 1500Vrms |
|
|
F-191UPWR XFMR LAMINATED 140VA CHAS MT |
3,036 | 37.48 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 35V | 4A | Single | Single | Yes | 140VA | Chassis Mount | Wire Leads | 80.95mm L x 80.95mm W | 96.82mm | 1500Vrms |
|
|
F-258UPWR XFMR LAMINATED 160VA CHAS MT |
3,195 | 37.48 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 20V | 8A | Single | Single | Yes | 160VA | Chassis Mount | Wire Leads | 88.90mm L x 79.38mm W | 95.25mm | 1500Vrms |
|
F-398UPWR XFMR LAMINATED 72VA CHAS MT |
3,679 | 34.34 |
RFQ |
Datasheet |
Box | Control Transformers | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 6A, Series 3A | Dual | Dual | No | 72VA | Chassis Mount | Solder Lug | 96.82mm L x 71.42mm W | 86.51mm | 1500Vrms |
|
|
F-196UPWR XFMR LAMINATED 63VA CHAS MT |
3,107 | 35.34 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V | Parallel 15.5V, Series 32V | Parallel 2A, Series 1A | Single | Dual | Yes | 63VA | Chassis Mount | Wire Leads | 71.42mm L x 66.68mm W | 85.73mm | 1500Vrms |
|
VPS20-6500PWR XFMR LAMINATED 130VA CHAS MT |
2,554 | 35.36 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 13A, Series 6.5A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
|
VPS10-13000-BPWR XFMR LAMINATED 130VA CHAS MT |
3,450 | 35.36 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 26A, Series 13A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.73mm | 4000Vrms |
|
|
VPS12-10300-BPWR XFMR LAMINATED 130VA CHAS MT |
3,587 | 35.36 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 26A, Series 13A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
|
VPS16-8100-BPWR XFMR LAMINATED 130VA CHAS MT |
3,584 | 35.36 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 16.2A, Series 8.1A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
|
VPS20-6500-BPWR XFMR LAMINATED 130VA CHAS MT |
3,162 | 35.36 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 13A, Series 6.5A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
|
VPS24-5400-BPWR XFMR LAMINATED 130VA CHAS MT |
3,055 | 35.36 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 10.8A, Series 5.4A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 60.45mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
|
VPS28-4600-BPWR XFMR LAMINATED 130VA CHAS MT |
3,792 | 35.36 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 9.2A, Series 4.6A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
|
VPS36-3600-BPWR XFMR LAMINATED 130VA CHAS MT |
3,795 | 35.36 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 7.2A, Series 3.6A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms |
|

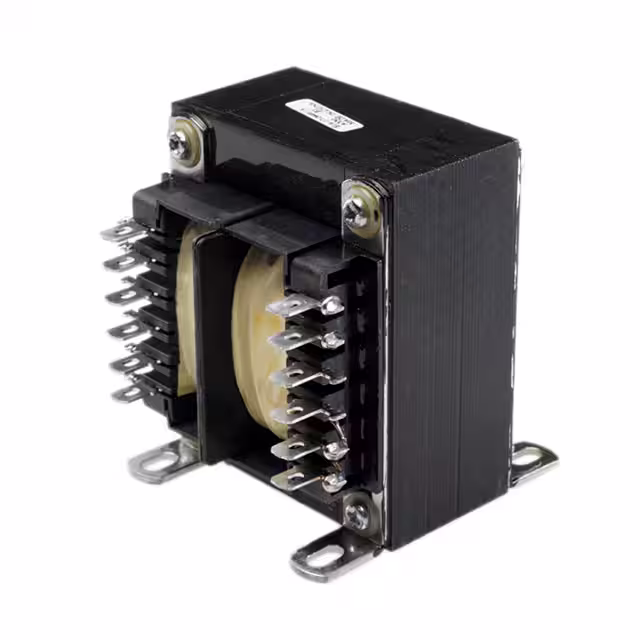

VPS56-2300PWR XFMR LAMINATED 130VA CHAS MT |
3,600 | 35.36 |
RFQ |
Datasheet |
Box | QUICK-CONNECT WORLD SERIES™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 4.6A, Series 2.3A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.44mm L x 68.26mm W | 85.73mm | 4000VAC |
|
|
F-360UPWR XFMR LAMINATED 78VA CHAS MT |
2,264 | 35.70 |
RFQ |
Datasheet |
Box | Universal | Active | Laminated Core | 115V, 230V | 6.5V, 13V, 19.5V, 26V | 3A | Dual | Single | Yes | 78VA | Chassis Mount | Wire Leads | 71.42mm L x 66.68mm W | 85.73mm | 1500Vrms |
