| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F8-20PWR XFMR LAMINATED 100VA CHAS MT |
2,766 | 26.06 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 20V | 5A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|
F8-48PWR XFMR LAMINATED 100VA CHAS MT |
3,572 | 26.06 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 48V | 2A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|
VPS10-8000PWR XFMR LAMINATED 80VA CHAS MT |
2,764 | 26.28 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 16A, Series 8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
|
VPS12-6300-BPWR XFMR LAMINATED 80VA CHAS MT |
2,553 | 26.28 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 12.6A, Series 6.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
|
VPS16-5000-BPWR XFMR LAMINATED 80VA CHAS MT |
2,471 | 26.28 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 10A, Series 5A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
|
VPS20-4000-BPWR XFMR LAMINATED 80VA CHAS MT |
2,698 | 26.28 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 8A, Series 4A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 74.68mm W | 76.20mm | 4000Vrms |
|
|
VPS230-350-BPWR XFMR LAMINATED 80VA CHAS MT |
2,075 | 26.28 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 700mA, Series 350mA | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
|
VPS36-2200-BPWR XFMR LAMINATED 80VA CHAS MT |
2,280 | 26.28 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|

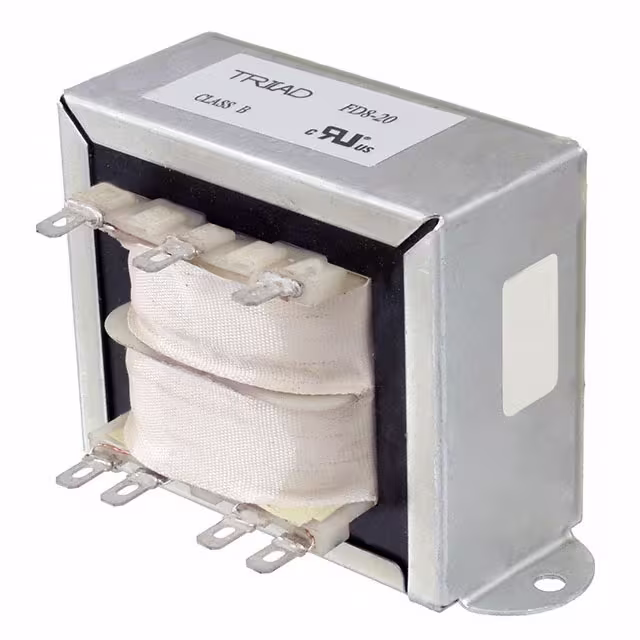

FD8-20PWR XFMR LAMINATED 100VA CHAS MT |
3,176 | 26.55 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 20V | 5A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|

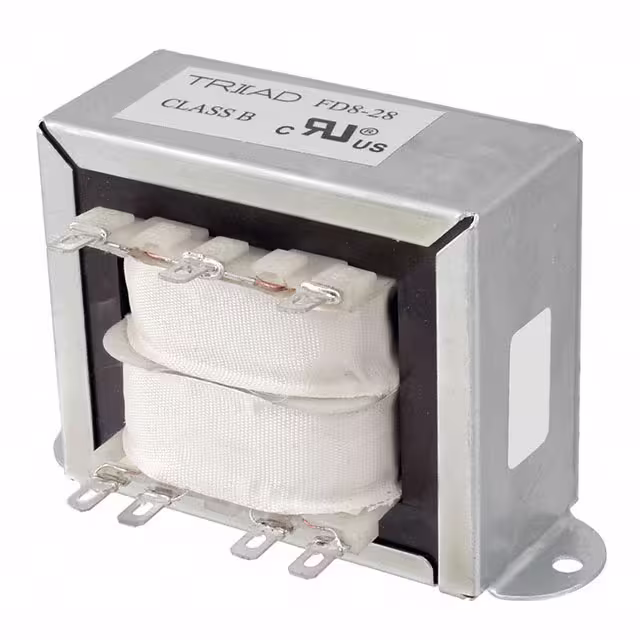

FD8-28PWR XFMR LAMINATED 100VA CHAS MT |
3,039 | 26.55 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 28V | 3.6A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|
FD8-36PWR XFMR LAMINATED 100VA CHAS MT |
3,669 | 26.55 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 36V | 2.8A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|
FD8-56PWR XFMR LAMINATED 100VA CHAS MT |
3,227 | 26.55 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 56V | 1.8A | Dual | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|
F-91XPWR XFMR LAMINATED CHASSIS MT |
3,129 | 26.79 |
RFQ |
Datasheet |
Box | Universal | Active | Laminated Core | 115V | 40V, 20V, 10V | 300mA | Single, Multiple Taps | Single | Yes | Varies | Chassis Mount | Wire Leads | 93.65mm L x 50.80mm W | 57.94mm | 1500Vrms |
|
F-252UPWR XFMR LAMINATED 56VA CHAS MT |
2,146 | 29.94 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 14V | 4A | Single | Single | Yes | 56VA | Chassis Mount | Wire Leads | 63.50mm L x 61.90mm W | 76.20mm | 1500Vrms |
|
|
F-279UPWR XFMR LAMINATED 60VA CHAS MT |
3,060 | 29.94 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 60V | 1A | Single | Single | Yes | 60VA | Chassis Mount | Wire Leads | 66.68mm L x 63.50mm W | 76.20mm | 1500Vrms |
|
|
VPS12-10300PWR XFMR LAMINATED 130VA CHAS MT |
3,124 | 30.16 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 26A, Series 13A | Dual | Dual | No | 130VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 68.33mm W | 85.85mm | 4000Vrms |
|
|
F-182UPWR XFMR LAMINATED 75.6VA CHAS |
3,036 | 30.18 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12.6V | 6A | Single | Single | Yes | 75.6VA | Chassis Mount | Wire Leads | 71.42mm L x 71.42mm W | 85.73mm | 1500Vrms |
|
|
F-220UPWR XFMR LAMINATED 72VA CHAS MT |
3,810 | 30.18 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12V | 6A | Single | Single | No | 72VA | Chassis Mount | Wire Leads | 71.42mm L x 63.50mm W | 87.30mm | 1500Vrms |
|
|
F-253UPWR XFMR LAMINATED 84VA CHAS MT |
3,940 | 30.18 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 14V | 6A | Single | Single | Yes | 84VA | Chassis Mount | Wire Leads | 73.03mm L x 71.42mm W | 85.73mm | 1500Vrms |
|
|
F-256UPWR XFMR LAMINATED 80VA CHAS MT |
3,298 | 29.32 |
RFQ |
Datasheet |
Bulk,Box | Single Secondary | Active | Laminated Core | 115V | 20V | 4A | Single | Single | Yes | 80VA | Chassis Mount | Wire Leads | 73.03mm L x 71.42mm W | 85.73mm | 1500Vrms |
