| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-272UPWR XFMR LAMINATED 160VA CHAS MT |
3,130 | 37.48 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 40V | 4A | Single | Single | Yes | 160VA | Chassis Mount | Wire Leads | 88.90mm L x 79.38mm W | 95.25mm | 1500Vrms |
|
F-257UPWR XFMR LAMINATED 120VA CHAS MT |
3,651 | 37.48 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 20V | 6A | Single | Single | Yes | 120VA | Chassis Mount | Wire Leads | 85.73mm L x 85.73mm W | 95.25mm | 1500Vrms |
|

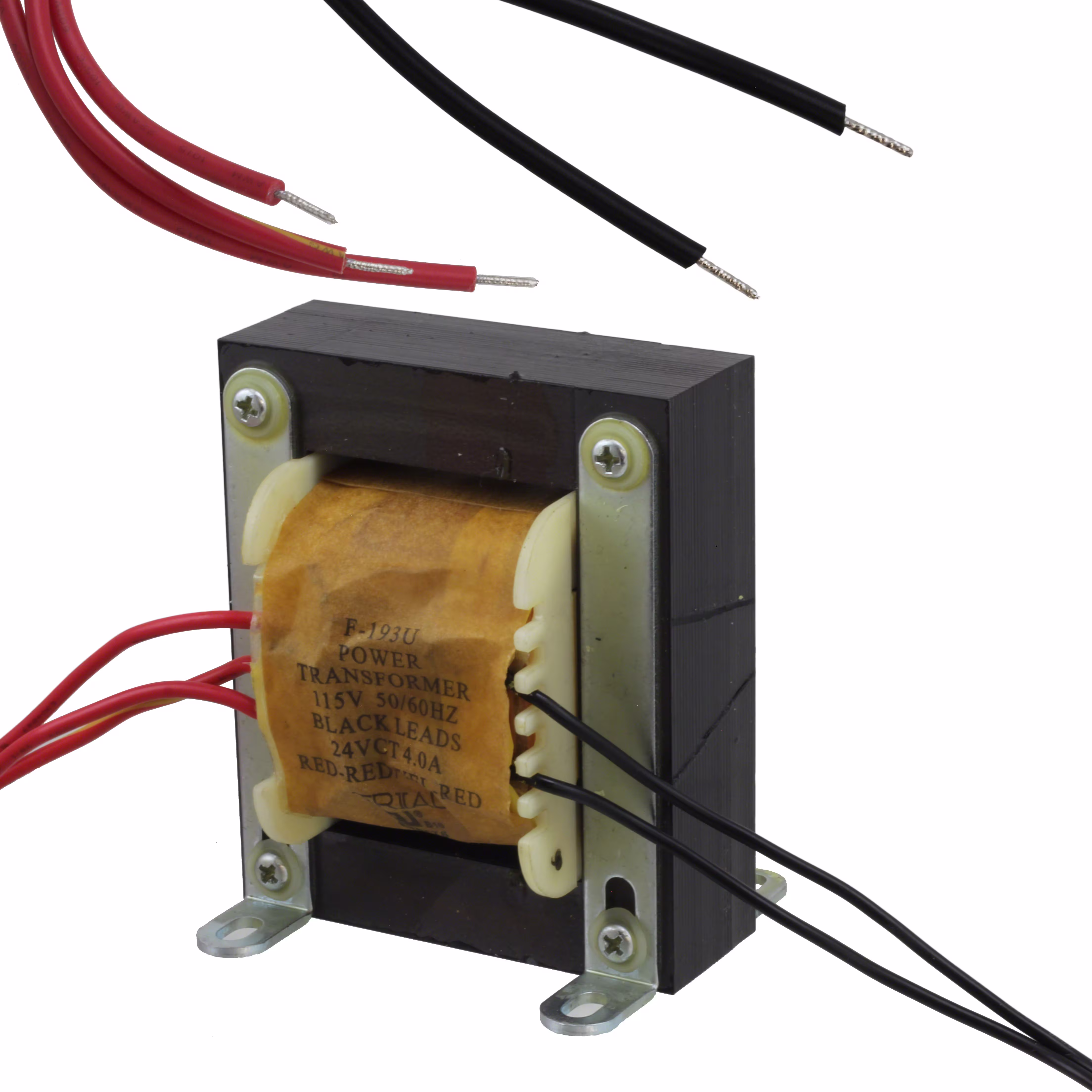

F-193UPWR XFMR LAMINATED 96VA CHAS MT |
2,866 | 37.49 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 4A | Single | Single | Yes | 96VA | Chassis Mount | Wire Leads | 79.38mm L x 71.42mm W | 71.42mm | 1500Vrms |
|

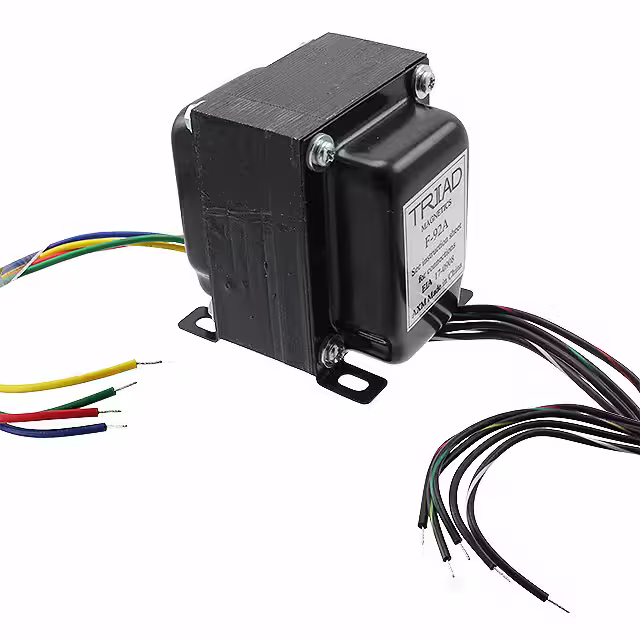

F-92APWR XFMR LAMINATED CHASSIS MT |
2,612 | 37.88 |
RFQ |
Datasheet |
Box | Universal | Active | Laminated Core | 115V | 10V, 20V, 40V | 750mA | Single, Multiple Taps | Single, Multiple Taps | No | Varies | Chassis Mount | Wire Leads | 63.50mm L x 76.20mm W | 76.20mm | 1500Vrms |
|

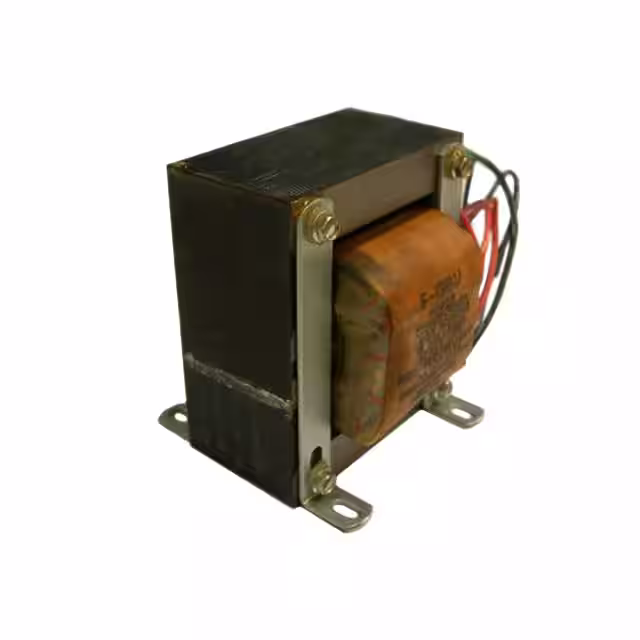

F-198UPWR XFMR LAMINATED 122VA CHAS MT |
3,922 | 38.27 |
RFQ |
Datasheet |
Bulk,Box | Multiple Secondary | Active | Laminated Core | 115V | 15.5V, 32V | 6A, 1A | Single | Dual | Yes | 122VA | Chassis Mount | Wire Leads | 80.95mm L x 79.38mm W | 95.25mm | 1500Vrms |
|
VPS16-11000PWR XFMR LAMINATED 175VA CHAS MT |
2,721 | 40.06 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
VPS10-17500-BPWR XFMR LAMINATED 175VA CHAS MT |
2,171 | 40.06 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 35A, Series 17.5A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.38mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
VPS12-14000-BPWR XFMR LAMINATED 175VA CHAS MT |
2,692 | 40.07 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 28A, Series 14A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
VPS16-11000-BPWR XFMR LAMINATED 175VA CHAS MT |
2,946 | 40.07 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 22A, Series 11A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
VPS20-8800-BPWR XFMR LAMINATED 175VA CHAS MT |
2,653 | 40.07 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 17.6A, Series 8.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
VPS230-760-BPWR XFMR LAMINATED 175VA CHAS MT |
2,430 | 40.07 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 1.52A, Series 760mA | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
VPS24-7300-BPWR XFMR LAMINATED 175VA CHAS MT |
2,189 | 40.07 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 14.6A, Series 7.3A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
VPS28-6250-BPWR XFMR LAMINATED 175VA CHAS MT |
3,654 | 40.07 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 12.5A, Series 6.25A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
VPS36-4800-BPWR XFMR LAMINATED 175VA CHAS MT |
3,703 | 40.07 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 175VA | Chassis Mount | Solder, Quick Connect | 79.50mm L x 71.37mm W | 95.25mm | 4000Vrms |
|
|
F-197UPWR XFMR LAMINATED 63VA CHAS MT |
3,552 | 41.68 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V | Parallel 15.5V, Series 32V | Parallel 4A, Series 1A | Single | Dual | Yes | 63VA | Chassis Mount | Wire Leads | 79.38mm L x 74.60mm W | 95.25mm | 1500Vrms |
|
|
F-243UPWR XFMR LAMINATED 144VA CHAS MT |
2,651 | 41.68 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 8A, Series 4A | Single | Dual | Yes | 144VA | Chassis Mount | Solder, Quick Connect | 104.78mm L x 82.55mm W | 88.90mm | 1500Vrms |
|

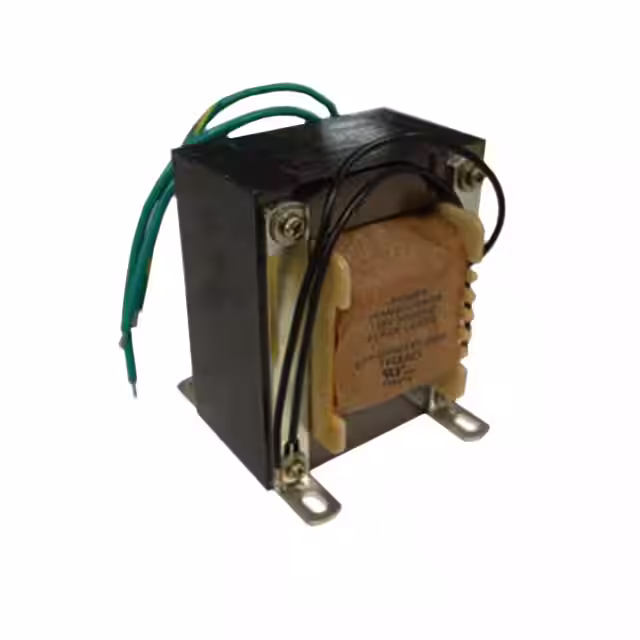

F-97UPWR XFMR LAMINATED 80VA CHAS MT |
2,598 | 42.36 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 10V | 8A | Single | Single | Yes | 80VA | Chassis Mount | Wire Leads | 71.42mm L x 76.20mm W | 87.30mm | 1500Vrms |
|
F-399UPWR XFMR LAMINATED 192VA CHAS MT |
3,040 | 44.49 |
RFQ |
Datasheet |
Box | Control Transformers | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 12A, Series 6A | Dual | Dual | No | 192VA | Chassis Mount | Solder, Quick Connect | 88.90mm L x 79.38mm W | 120.65mm | 1500Vrms |
|
|
F-400UPWR XFMR LAMINATED 144VA CHAS MT |
3,406 | 44.49 |
RFQ |
Datasheet |
Box | Control Transformers | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 6A, Series 3A | Dual | Dual | No | 144VA | Chassis Mount | Solder, Quick Connect | 88.90mm L x 79.38mm W | 120.65mm | 1500Vrms |
|
VPM12-4170PWR XFMR TORO 50VA CHAS MT |
3,323 | 47.68 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 6V, Series 12V | Parallel 8.34A, Series 4.17A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms |
