| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPM18-2780PWR XFMR TORO 50VA CHAS MT |
2,891 | 47.68 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 9V, Series 18V | Parallel 5.56A, Series 2.78A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms |
|
|
VPM24-2080PWR XFMR TORO 50VA CHAS MT |
2,487 | 47.68 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 4.16A, Series 2.08A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms |
|
|
VPM30-1670PWR XFMR TORO 50VA CHAS MT |
3,763 | 47.68 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 15V, Series 30V | Parallel 3.34A, Series 1.67A | Dual, Multiple Taps | Dual | No | 50VA | Chassis Mount | Wire Leads | 92.00mm Dia | 38.00mm | 4000Vrms |
|

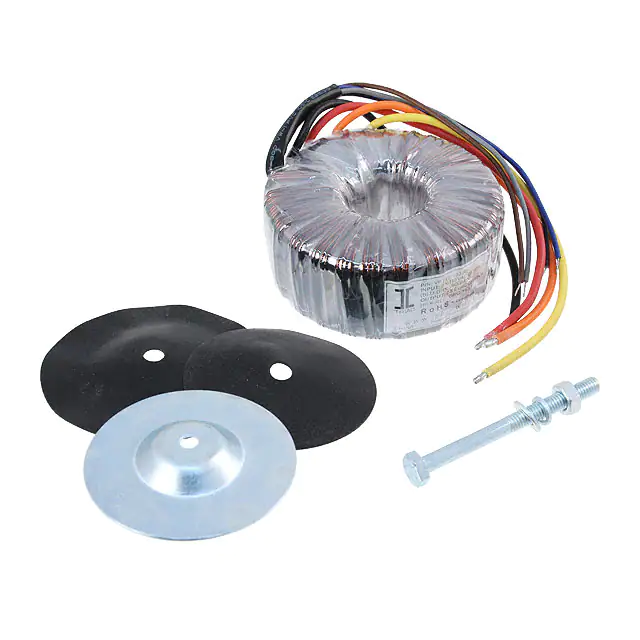

VPT12-13300PWR XFMR TORO 160VA CHAS MT |
3,480 | 50.78 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 6V, Series 12V | Parallel 26.6A, Series 13.3A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 103.00mm Dia x 48.00mm W | 52.0mm | 4000Vrms |
|
F-109UPWR XFMR LAMINATED 192VA CHAS MT |
3,338 | 54.24 |
RFQ |
Datasheet |
Box | Control Transformers | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 16A, Series 8A | Dual | Dual | No | 192VA | Chassis Mount | Solder Lug | 87.30mm L x 90.47mm W | 106.35mm | 1500Vrms |
|
|
VPM12-8330PWR XFMR TORO 100VA CHAS MT |
3,017 | 62.45 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 6V, Series 12V | Parallel 16.66A, Series 8.33A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms |
|
|
VPM30-3330PWR XFMR TORO 100VA CHAS MT |
2,292 | 62.45 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 15V, Series 30V | Parallel 6.66A, Series 3.33A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms |
|
|
VPM36-2780PWR XFMR TORO 100VA CHAS MT |
2,407 | 62.45 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 18V, Series 36V | Parallel 5.56A, Series 2.78A | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms |
|
|
VPM240-420PWR XFMR TORO 100VA CHAS MT |
3,161 | 62.45 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 120V, Series 240V | Parallel 840mA, Series 420mA | Dual, Multiple Taps | Dual | No | 100VA | Chassis Mount | Wire Leads | 96.00mm Dia | 52.00mm | 4000Vrms |
|
F-244UPWR XFMR LAMINATED 288VA CHAS MT |
2,787 | 67.66 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 16A, Series 8A | Single | Dual | Yes | 288VA | Chassis Mount | Solder, Quick Connect | 114.30mm L x 101.60mm W | 95.25mm | 1500Vrms |
|

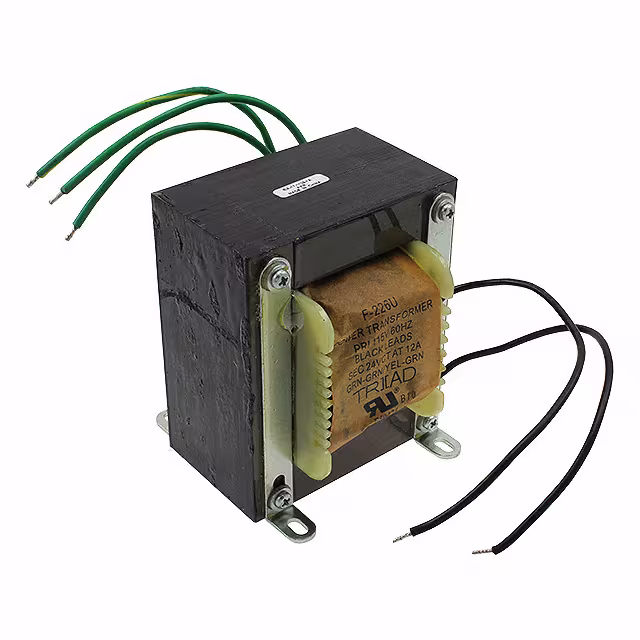

F-226UPWR XFMR LAMINATED 288VA CHAS MT |
3,684 | 67.71 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 12A | Single | Single | Yes | 288VA | Chassis Mount | Wire Leads | 95.25mm L x 104.77mm W | 115.87mm | 1500Vrms |
|
|
F-268UPWR XFMR LAMINATED 280VA CHAS MT |
2,058 | 67.71 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 35V | 8A | Single | Single | Yes | 280VA | Chassis Mount | Wire Leads | 107.95mm L x 95.25mm W | 114.30mm | 1500Vrms |
|
VPT230-1090-BPWR XFMR TORO 250VA CHAS MT |
3,238 | 68.52 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 2.18A, Series 1.09A | Dual | Dual | No | 250VA | Chassis Mount | Wire Leads | 112.00mm Dia x 54.00mm W | 58.0mm | 4000Vrms |
|
|
VPM12-13300PWR XFMR TORO 160VA CHAS MT |
2,861 | 75.12 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 6V, Series 12V | Parallel 26.6A, Series 13.3A | Dual, Multiple Taps | Dual | No | 160VA | Chassis Mount | Wire Leads | 113.00mm Dia | 52.00mm | 4000Vrms |
|
|
VPM18-8800PWR XFMR TORO 160VA CHAS MT |
2,749 | 75.12 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 9V, Series 18V | Parallel 17.6A, Series 8.8A | Dual, Multiple Taps | Dual | No | 160VA | Chassis Mount | Wire Leads | 113.00mm Dia | 52.00mm | 4000Vrms |
|
|
VPM36-4440PWR XFMR TORO 160VA CHAS MT |
3,160 | 75.87 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 18V, Series 36V | Parallel 8.88A, Series 4.44A | Dual, Multiple Taps | Dual | No | 160VA | Chassis Mount | Wire Leads | 113.00mm Dia | 52.00mm | 4000Vrms |
|
|
VPM48-3300PWR XFMR TORO 160VA CHAS MT |
3,552 | 75.12 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 6.66A, Series 3.33A | Dual, Multiple Taps | Dual | No | 160VA | Chassis Mount | Wire Leads | 113.00mm Dia | 52.00mm | 4000Vrms |
|
|
VPM24-10420PWR XFMR TORO 250VA CHAS MT |
2,530 | 110.76 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 12V, Series 24V | Parallel 20.84A, Series 10.42A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms |
|
|
VPM36-6940PWR XFMR TORO 250VA CHAS MT |
3,028 | 110.76 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 18V, Series 36V | Parallel 13.88A, Series 6.94A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms |
|
|
VPM48-5200PWR XFMR TORO 250VA CHAS MT |
3,549 | 110.76 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 24V, Series 48V | Parallel 10.4A, Series 5.2A | Dual, Multiple Taps | Dual | No | 250VA | Chassis Mount | Wire Leads | 123.00mm Dia | 60.00mm | 4000Vrms |
