| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-237ZPWR XFMR LAMINATED 24VA CHAS MT |
2,075 | 21.01 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | Yes | 24VA | Chassis Mount | Solder, Quick Connect | 71.42mm L x 52.37mm W | 60.33mm | 1500Vrms |
|

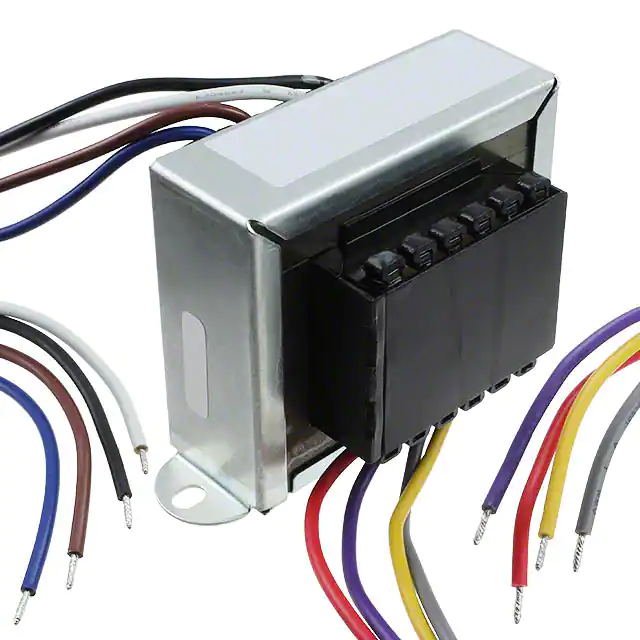

VPL10-5000PWR XFMR LAMINATED 50.0VA CHAS |
2,700 | 21.49 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 10V | 5A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms |
|

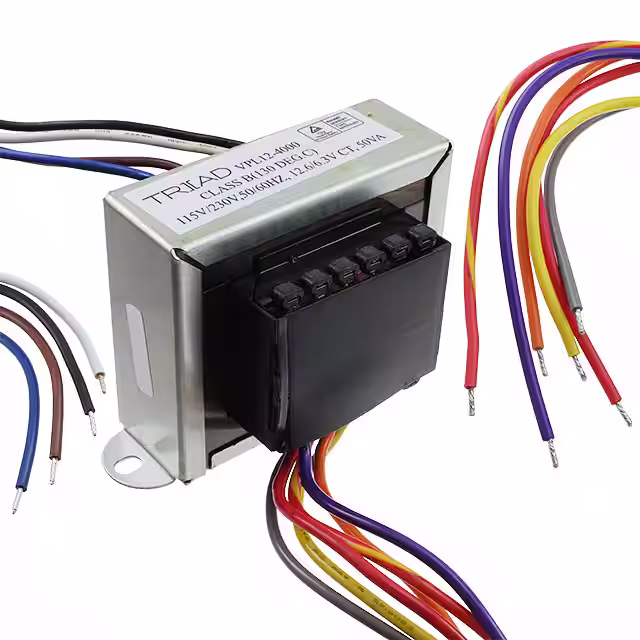

VPL12-4000PWR XFMR LAMINATED 50.0VA CHAS |
3,225 | 21.49 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 12.6V | 3.97A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms |
|
VPL16-3100PWR XFMR LAMINATED 50.0VA CHAS |
2,027 | 21.49 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 16V | 3.125A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms |
|

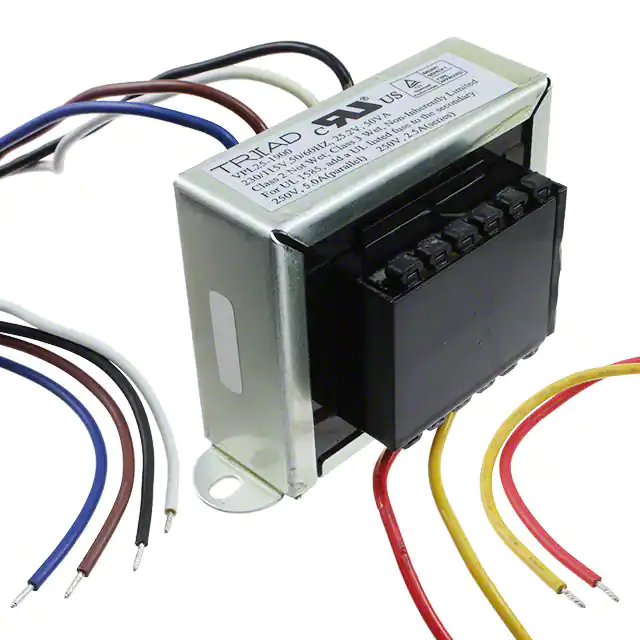

VPL25-1900PWR XFMR LAMINATED 50.0VA CHAS |
2,457 | 21.49 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 25.2V | 1.984A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms |
|

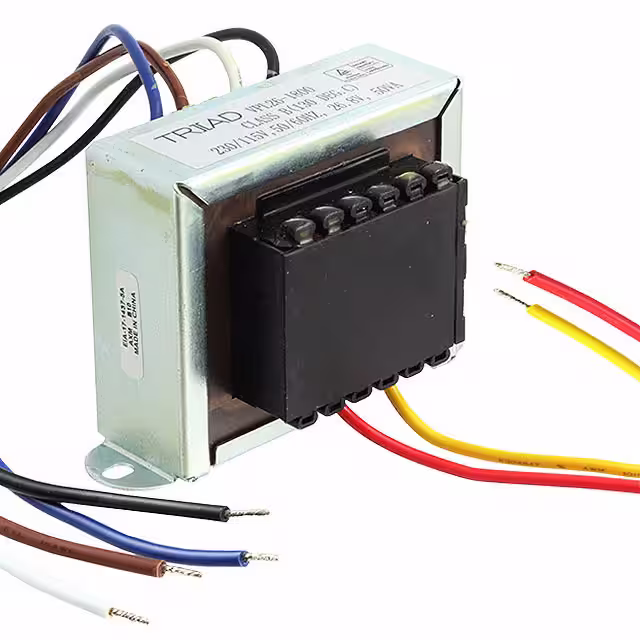

VPL26-1800PWR XFMR LAMINATED 50.0VA CHAS |
2,207 | 21.49 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 26.8V | 1.866A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms |
|
VPL28-1700PWR XFMR LAMINATED 50.0VA CHAS |
3,663 | 21.49 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 28V | 1.786A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms |
|

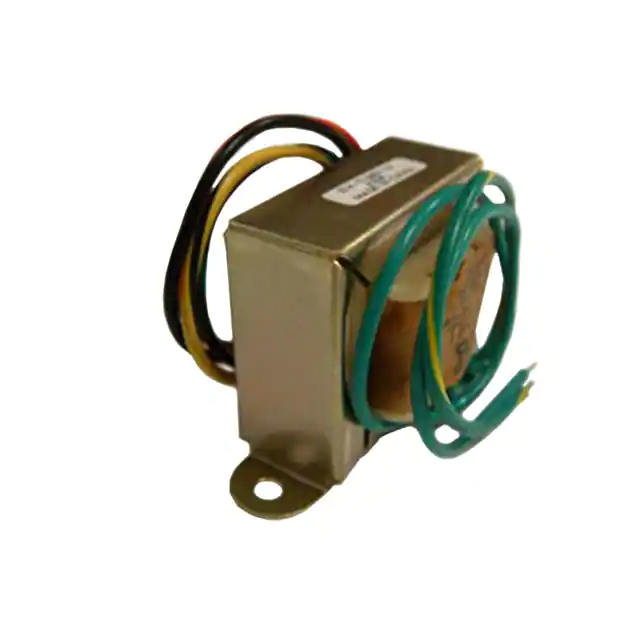

F-318XPWR XFMR LAMINATED 37.8VA CHAS |
3,692 | 21.96 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 6.3V | 6A | Dual | Single | Yes | 37.8VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 57.94mm | 1500Vrms |
|
F-241UPWR XFMR LAMINATED 36VA CHAS MT |
3,471 | 22.59 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V | 18V | 1A | Single | Dual | Yes | 36VA | Chassis Mount | Solder Lug | 76.20mm L x 63.50mm W | 63.50mm | 1500Vrms |
|
F-12XPWR XFMR LAMINATED 40VA CHAS MT |
2,782 | 22.81 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 5V | 8A | Single | Single | Yes | 40VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 2500Vrms |
|
|
F-255XPWR XFMR LAMINATED 40VA CHAS MT |
2,668 | 22.81 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 20V | 2A | Single | Single | Yes | 40VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.07mm | 1500Vrms |
|
|
F-69XPWR XFMR LAMINATED 50.4VA CHAS |
2,997 | 22.81 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 6.3V | 8A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 71.37mm | 1500Vrms |
|

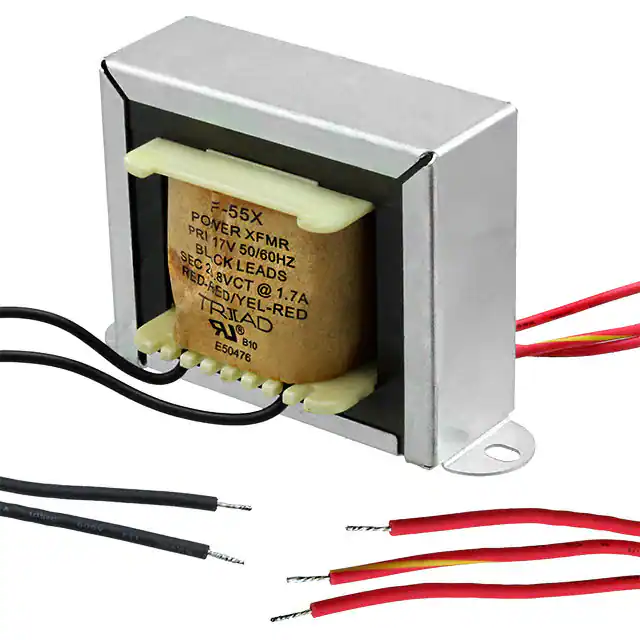

F-55XPWR XFMR LAMINATED 45.6VA CHAS |
2,981 | 22.81 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 26.8V | 1.7A | Single | Single | Yes | 45.6VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms |
|
F-225XPWR XFMR LAMINATED 50.4VA CHAS |
3,914 | 22.81 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12.6V | 4A | Single | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 101.60mm L x 52.37mm W | 66.68mm | 1500Vrms |
|
VPS10-8000-BPWR XFMR LAMINATED 80VA CHAS MT |
2,624 | 23.19 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 16A, Series 8A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
|
VPS24-3300-BPWR XFMR LAMINATED 80VA CHAS MT |
3,381 | 23.19 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 6.6A, Series 3.3A | Dual | Dual | No | 80VA | Chassis Mount | Solder, Quick Connect | 63.50mm L x 58.67mm W | 76.20mm | 4000Vrms |
|
F-341XPWR XFMR LAMINATED 50.4VA CHAS |
3,494 | 24.89 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 25.2V | 2A | Dual | Single | Yes | 50.4VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms |
|
|
F-355XPWR XFMR LAMINATED 45.6VA CHAS |
2,693 | 24.89 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 26.8V | 1.7A | Dual | Single | Yes | 45.6VA | Chassis Mount | Wire Leads | 101.60mm L x 57.15mm W | 65.86mm | 1500Vrms |
|
F8-10PWR XFMR LAMINATED 100VA CHAS MT |
2,999 | 26.06 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 10V | 10A | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
|
F8-120PWR XFMR LAMINATED 100VA CHAS MT |
2,752 | 26.06 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 120V | 850mA | Single | Single | Yes | 100VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 102.39mm L x 57.15mm W | 65.07mm | 2500VAC |
