| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F-184XPWR XFMR LAMINATED 28VA CHAS MT |
3,551 | 18.87 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 28V | 1A | Single | Single | Yes | 28VA | Chassis Mount | Wire Leads | 93.65mm L x 57.15mm W | 58.72mm | 1500Vrms |
|
|
F-224XPWR XFMR LAMINATED 37.8VA CHAS |
3,817 | 18.87 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12.6V | 3A | Single | Single | No | 37.8VA | Chassis Mount | Wire Leads | 95.25mm L x 53.98mm W | 57.15mm | 1500Vrms |
|
|
F-31XPWR XFMR LAMINATED 30VA CHAS MT |
2,432 | 18.87 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 10V | 3A | Single | Single | Yes | 30VA | Chassis Mount | Wire Leads | 95.25mm L x 53.98mm W | 54.76mm | 2000Vrms |
|

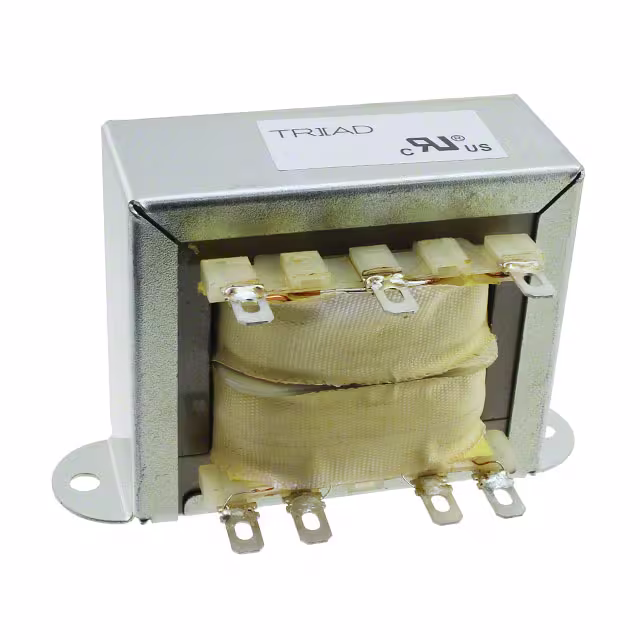

FD7-10PWR XFMR LAMINATED 56VA CHAS MT |
2,710 | 18.89 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 10V | 5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
FD7-12PWR XFMR LAMINATED 56VA CHAS MT |
2,253 | 18.89 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 12.6V | 4A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
FD7-28PWR XFMR LAMINATED 56VA CHAS MT |
3,134 | 18.89 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 28V | 2A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
|
FD7-48PWR XFMR LAMINATED 56VA CHAS MT |
2,913 | 18.89 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 48V | 1.2A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
FD7-56PWR XFMR LAMINATED 56VA CHAS MT |
3,164 | 18.89 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 56V | 1A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
VPP20-2800-BPWR XFMR LAMINATED 56VA TH |
2,297 | 18.95 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 5.6A, Series 2.8A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
VPP24-2330-BPWR XFMR LAMINATED 56VA TH |
3,761 | 18.95 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4.66A, Series 2.33A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
VPP36-1560-BPWR XFMR LAMINATED 56VA TH |
3,916 | 18.95 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 3.12A, Series 1.56A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
VPP10-5600-BPWR XFMR LAMINATED 56VA TH |
2,295 | 18.95 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 11.2A, Series 5.6A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
|
VPP12-4400-BPWR XFMR LAMINATED 56VA TH |
3,728 | 18.95 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 8.8A, Series 4.4A | Dual | Dual | No | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.02mm | 4000Vrms |
|
VPL26-930PWR XFMR LAMINATED 25.0VA CHAS |
2,427 | 18.96 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 26.8V | 930mA | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms |
|

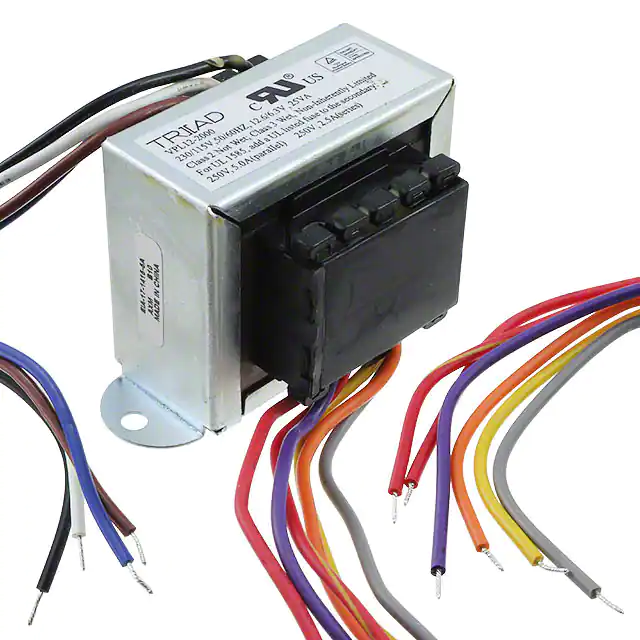

VPL12-2000PWR XFMR LAMINATED 25.0VA CHAS |
3,753 | 18.96 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 12.6V | 1.98A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms |
|

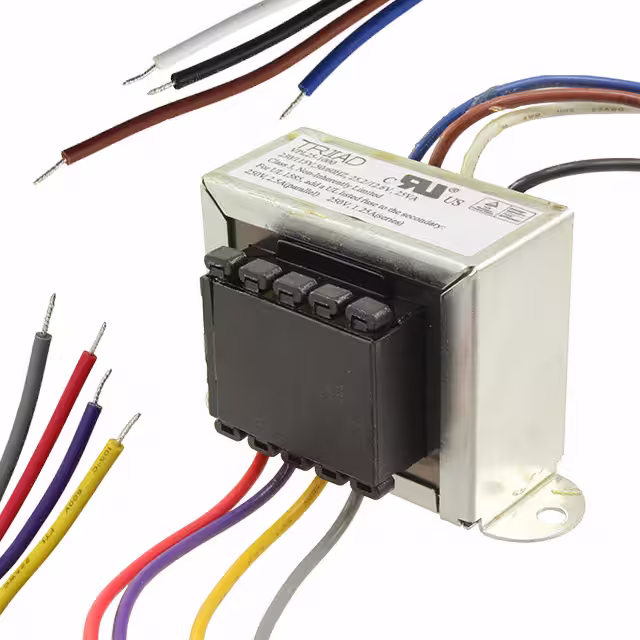

VPL25-1000PWR XFMR LAMINATED 25.0VA CHAS |
3,582 | 18.96 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 25.2V | 0.99A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms |
|
|

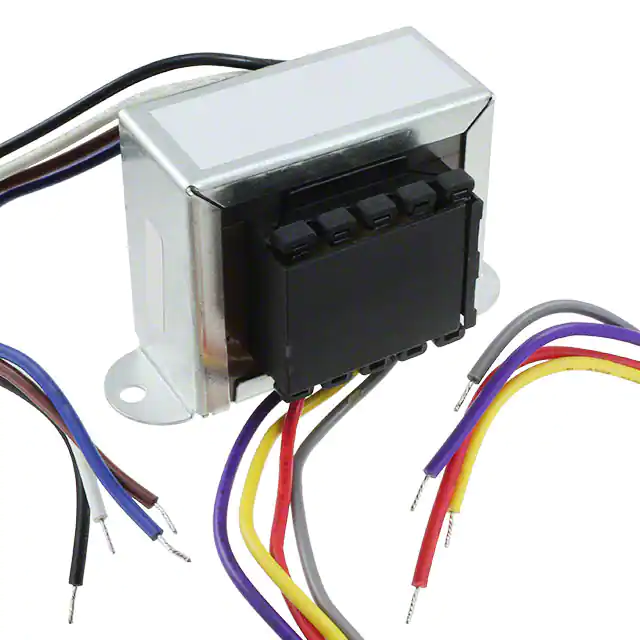

VPL28-900PWR XFMR LAMINATED 25.0VA CHAS |
2,653 | 18.96 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 28V | 0.89A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms |
|
VPL20-1200PWR XFMR LAMINATED 25.0VA CHAS |
3,922 | 19.15 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 20V | 1.25A | Dual | Dual | No | 25.0VA | Chassis Mount | Wire Leads | 53.98mm L x 82.55mm W | 49.22 mm | 3500Vrms |
|
TCT40-01E07AB-BPWR XFMR LAMINATED 40VA CHAS MT |
3,860 | 19.24 |
RFQ |
Datasheet |
Bulk | Class 2, TCT | Active | Laminated Core | 120V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT40-05E07AB-BPWR XFMR LAMINATED 40VA CHAS MT |
2,323 | 19.24 |
RFQ |
Datasheet |
Bulk | Class 2, TCT | Active | Laminated Core | 120V, 208V, 240V | 24V | 1.67A | Single, Multiple Taps | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
