| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

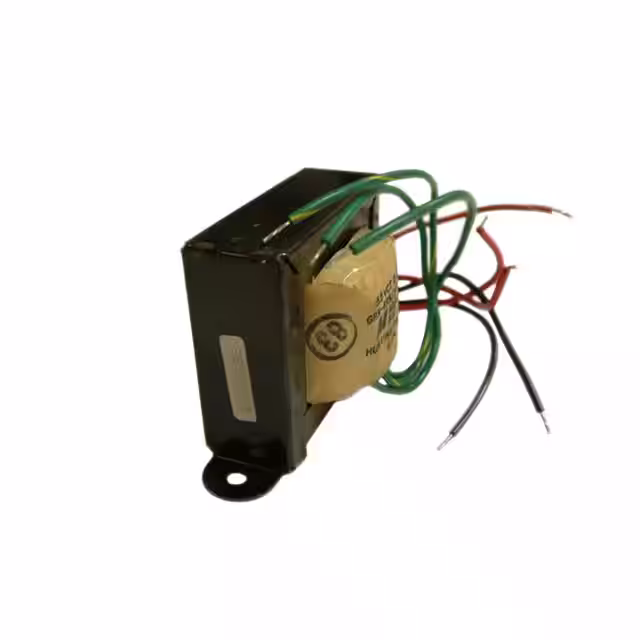

F-195XPWR XFMR LAMINATED 19.63VA CHAS |
3,236 | 16.28 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V | 15.5V, 32V | 750mA, 250mA | Single | Dual | Yes | 19.63VA | Chassis Mount | Wire Leads | 95.25mm L x 47.63mm W | 57.15mm | 1500Vrms |
|
F-118XPWR XFMR LAMINATED 16.8VA CHAS |
3,896 | 16.30 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 700mA | Single | Single | Yes | 16.8VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 1500Vrms |
|
|
F-124XPWR XFMR LAMINATED 22.4VA CHAS |
3,772 | 16.30 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 28V | 800mA | Single | Single | Yes | 22.4VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
|
F-180XPWR XFMR LAMINATED 10VA CHAS MT |
3,173 | 16.30 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 10V | 1A | Single | Single | Yes | 10VA | Chassis Mount | Wire Leads | 84.12mm L x 44.45mm W | 49.20mm | 1500Vrms |
|
|
F-7XPWR XFMR LAMINATED 15VA CHAS MT |
2,546 | 16.30 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 5V | 3A | Single | Single | Yes | 15VA | Chassis Mount | Solder, Quick Connect | 134.92mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
FP120-100PWR XFMR LAMINATED 12VA TH |
3,213 | 16.38 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 200mA, Series 100mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FP40-300PWR XFMR LAMINATED 12VA TH |
2,426 | 16.38 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 600mA, Series 300mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FP88-130PWR XFMR LAMINATED 12VA TH |
2,491 | 16.38 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 44V, Series 88V | Parallel 260mA, Series 130mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
FS10-2000PWR XFMR LAMINATED 20VA TH |
3,177 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4A, Series 2A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
FS12-1600PWR XFMR LAMINATED 20VA TH |
2,413 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
FS120-160PWR XFMR LAMINATED 20VA TH |
2,534 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 320mA, Series 160mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
FS16-1250PWR XFMR LAMINATED 20VA TH |
3,429 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
FS20-1000PWR XFMR LAMINATED 20VA TH |
3,546 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
FS24-800PWR XFMR LAMINATED 20VA TH |
3,440 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
FS28-700PWR XFMR LAMINATED 20VA TH |
2,565 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
FS36-550PWR XFMR LAMINATED 20VA TH |
2,505 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.1A, Series 550mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
FS48-400PWR XFMR LAMINATED 20VA TH |
2,829 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 800mA, Series 400mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
FS56-350PWR XFMR LAMINATED 20VA TH |
2,628 | 16.39 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 700mA, Series 350mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
F6-120PWR XFMR LAMINATED 30VA CHAS MT |
3,832 | 16.46 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 120V | 250mA | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|

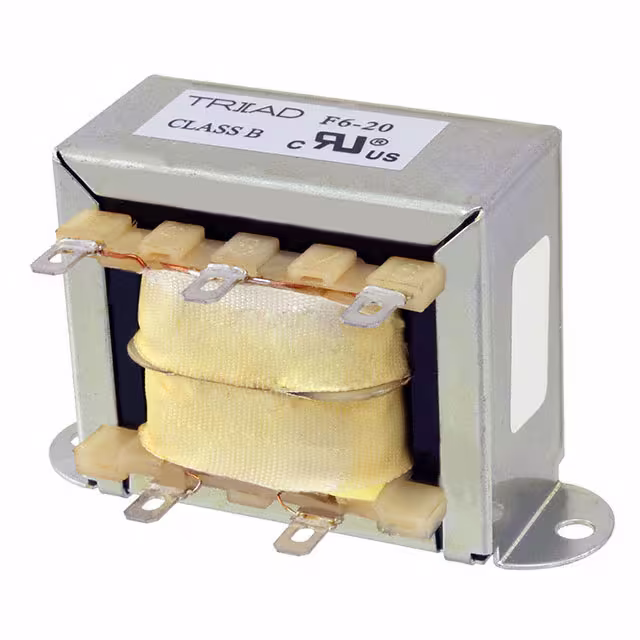

F6-20PWR XFMR LAMINATED 30VA CHAS MT |
3,640 | 16.46 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 20V | 1.5A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
