| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VPP20-1500-BPWR XFMR LAMINATED 30VA TH |
2,675 | 12.92 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 3A, Series 1.5A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
|
|
VPP24-1250-BPWR XFMR LAMINATED 30VA TH |
2,752 | 12.92 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2.5A, Series 1.25A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
|
F-316XPWR XFMR LAMINATED 18.9VA CHAS |
3,734 | 12.93 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 6.3V | 3A | Dual | Single | Yes | 18.9VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
F-365XPPWR XFMR LAMINATED 10VA TH |
2,637 | 13.13 |
RFQ |
Datasheet |
Bulk,Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 6.30V, Series 12.6V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms |
|
|
F-369XPPWR XFMR LAMINATED 10VA TH |
2,926 | 13.13 |
RFQ |
Datasheet |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 115V, Series 230V | Parallel 88mA, Series 44mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms |
|
F10-3600-C2PWR XFMR LAMINATED 36VA TH |
2,720 | 13.14 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 7.2A, Series 3.6A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
F12-2850-C2PWR XFMR LAMINATED 36VA TH |
3,101 | 13.14 |
RFQ |
Datasheet |
Bulk | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
F16-2250-C2PWR XFMR LAMINATED 36VA TH |
3,345 | 13.14 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms |
|
|
F24-1500-C2PWR XFMR LAMINATED 36VA TH |
3,422 | 13.14 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
F48-750-C2PWR XFMR LAMINATED 36VA TH |
3,073 | 13.14 |
RFQ |
Datasheet |
Bulk | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 1.5A, Series 750mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
F56-650-C2PWR XFMR LAMINATED 36VA TH |
3,101 | 13.14 |
RFQ |
Datasheet |
Bulk | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 1.3A, Series 650mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
FP120-50PWR XFMR LAMINATED 6VA TH |
2,133 | 13.29 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 100mA, Series 50mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.23mm | 2000Vrms |
|
|
FP230-25PWR XFMR LAMINATED 6VA TH |
2,533 | 13.29 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 50mA, Series 25mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.23mm | 2000Vrms |
|
|
FP40-150PWR XFMR LAMINATED 6VA TH |
2,266 | 13.29 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 300mA, Series 150mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.23mm | 2000Vrms |
|
|
FP88-65PWR XFMR LAMINATED 6VA TH |
3,733 | 13.29 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 44V, Series 88V | Parallel 130mA, Series 65mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.23mm | 2000Vrms |
|

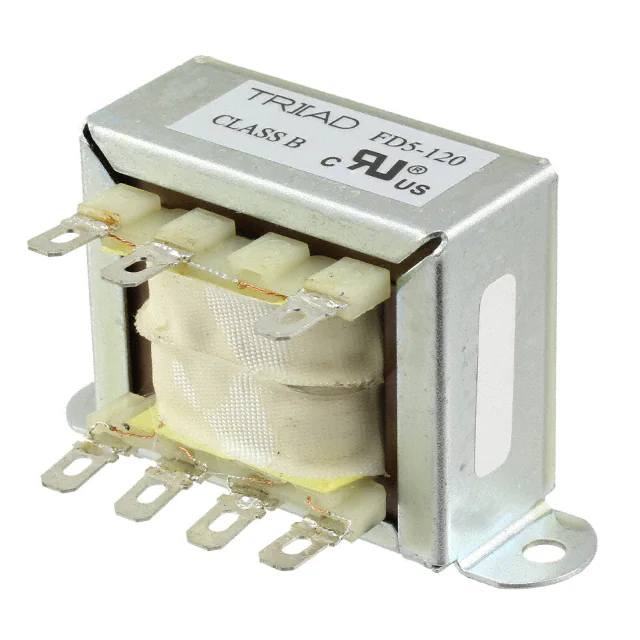

FD5-120PWR XFMR LAMINATED 12VA CHAS MT |
3,121 | 13.42 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 120V | 100mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
FD5-10PWR XFMR LAMINATED 12VA CHAS MT |
2,190 | 13.42 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 10V | 1.2A | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|

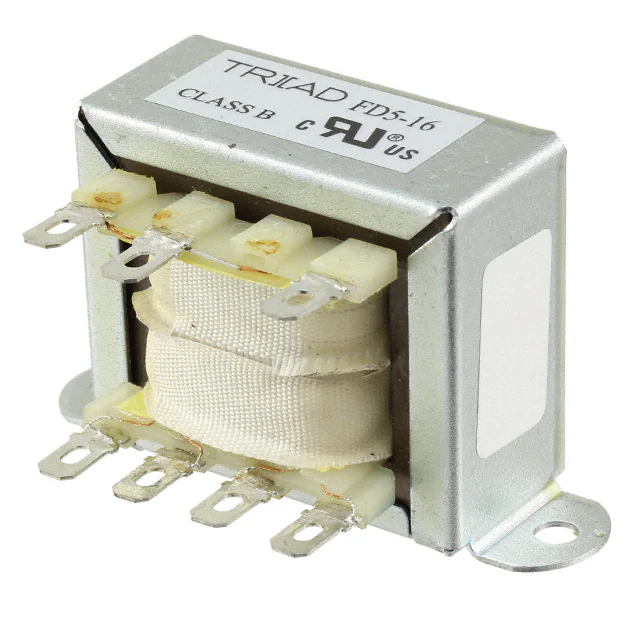

FD5-16PWR XFMR LAMINATED 12VA CHAS MT |
3,588 | 13.42 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 16V | 800mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|

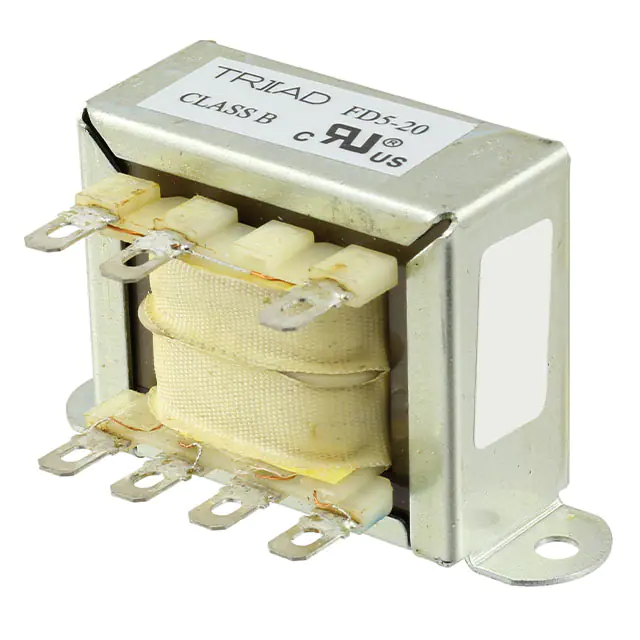

FD5-20PWR XFMR LAMINATED 12VA CHAS MT |
3,368 | 13.42 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 20V | 600mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|

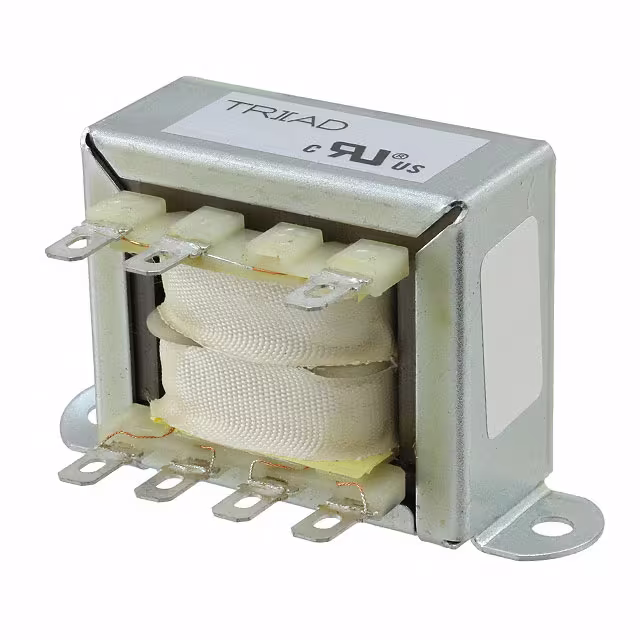

FD5-28PWR XFMR LAMINATED 12VA CHAS MT |
2,078 | 13.42 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 28V | 420mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
