| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP20-125PWR XFMR LAMINATED 2.5VA TH |
3,671 | 11.59 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 250mA, Series 125mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms |
|
FP120-20PWR XFMR LAMINATED 2.5VA TH |
2,407 | 11.59 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 40mA, Series 20mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms |
|
|
FP230-10PWR XFMR LAMINATED 2.5VA TH |
3,019 | 11.59 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 120V, Series 230V | Parallel 20mA, Series 10mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms |
|
|
FP40-60PWR XFMR LAMINATED 2.5VA TH |
3,877 | 11.59 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 120mA, Series 60mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms |
|
|
FP88-28PWR XFMR LAMINATED 2.5VA TH |
2,328 | 11.59 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 44V, Series 88V | Parallel 56mA, Series 28mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms |
|

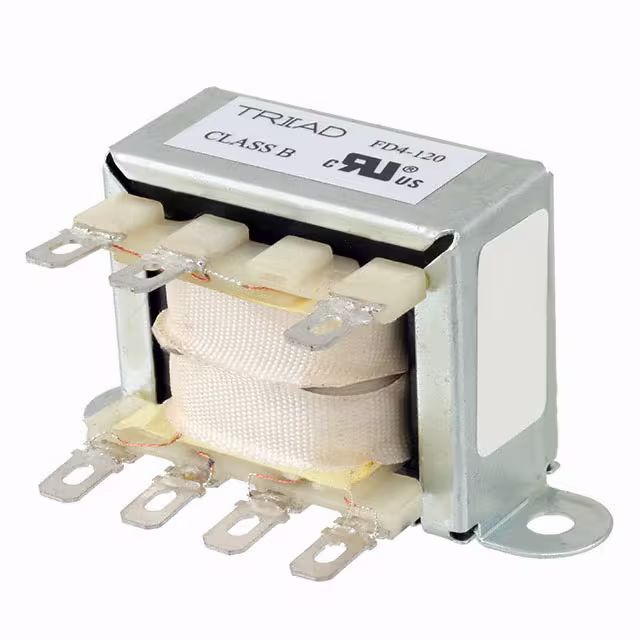

FD4-120PWR XFMR LAMINATED 6VA CHAS MT |
2,009 | 11.61 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 120V | 50mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC |
|

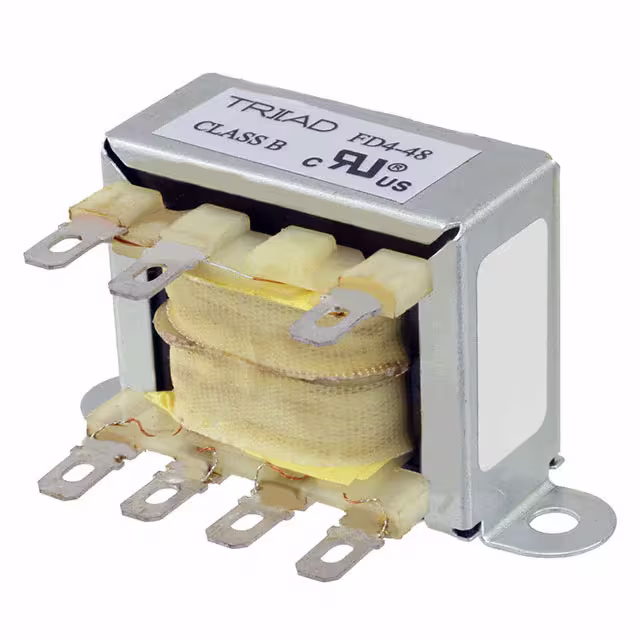

FD4-48PWR XFMR LAMINATED 6VA CHAS MT |
3,059 | 11.61 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 48V | 125mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC |
|

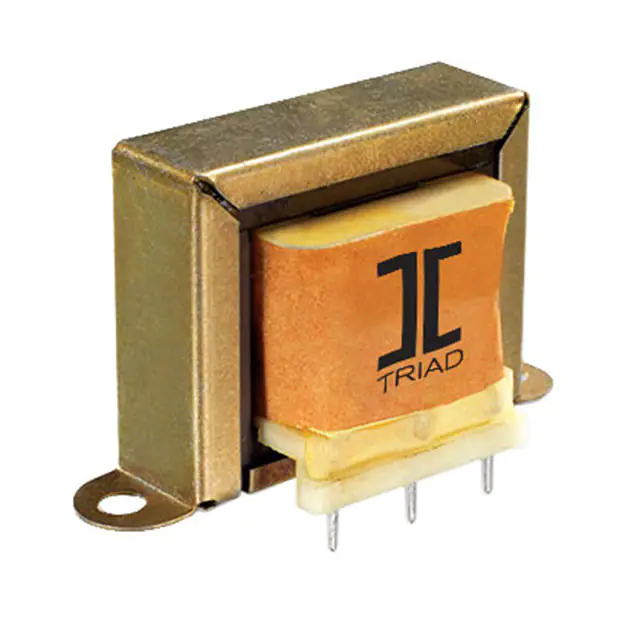

F-151XPPWR XFMR LAMINATED 7.5VA TH |
3,268 | 11.70 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 4V, Series 8V | Parallel 1.88A, Series 940mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F-154XPPWR XFMR LAMINATED 7.5VA TH |
3,164 | 11.70 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 27V, Series 54V | Parallel 280mA, Series 140mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F-155XPPWR XFMR LAMINATED 7.5VA TH |
2,015 | 11.70 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 38V, Series 76V | Parallel 200mA, Series 100mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F-156XPPWR XFMR LAMINATED 7.5VA TH |
2,583 | 11.70 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 58V, Series 116V | Parallel 130mA, Series 85mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F-158XPPWR XFMR LAMINATED 7.5VA TH |
2,870 | 11.70 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 12.6V, Series 25.2V | Parallel 600mA, Series 300mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F-159XPPWR XFMR LAMINATED 7.5VA TH |
2,603 | 11.70 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 1.2A, Series 600mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F-163XPPWR XFMR LAMINATED 7.5VA TH |
2,403 | 11.70 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 8.5V, Series 17V | Parallel 882mA, Series 441mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F-164XPPWR XFMR LAMINATED 7.5VA TH |
2,208 | 11.70 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 440mA, Series 220mA | Single | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
FP12-200-BPWR XFMR LAMINATED 2.5VA TH |
2,499 | 11.71 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 16.51mm | 2000Vrms |
|
F-235ZPWR XFMR LAMINATED 6VA CHAS MT |
3,832 | 11.75 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Single | Dual | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.33mm L x 36.50mm W | 50.80mm | 1500Vrms |
|
F-122XPWR XFMR LAMINATED 4.9VA CHAS MT |
3,169 | 11.84 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 28V | 175mA | Single | Single | Yes | 4.9VA | Chassis Mount | Wire Leads | 60.33mm L x 38.10mm W | 34.93mm | 1500Vrms |
|
VPL26-190PWR XFMR LAMINATED 5.0VA CHAS MT |
2,246 | 11.90 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 26.8V | 190mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms |
|

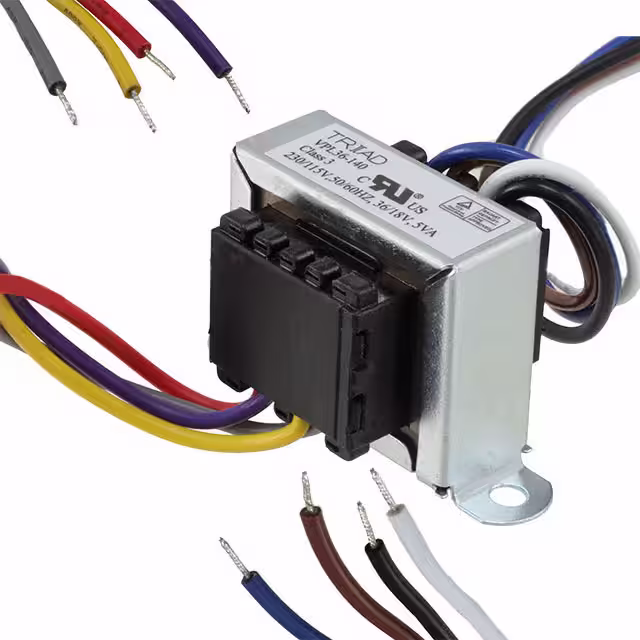

VPL36-140PWR XFMR LAMINATED 5.0VA CHAS MT |
3,722 | 11.90 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 36V | 140mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms |
