| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

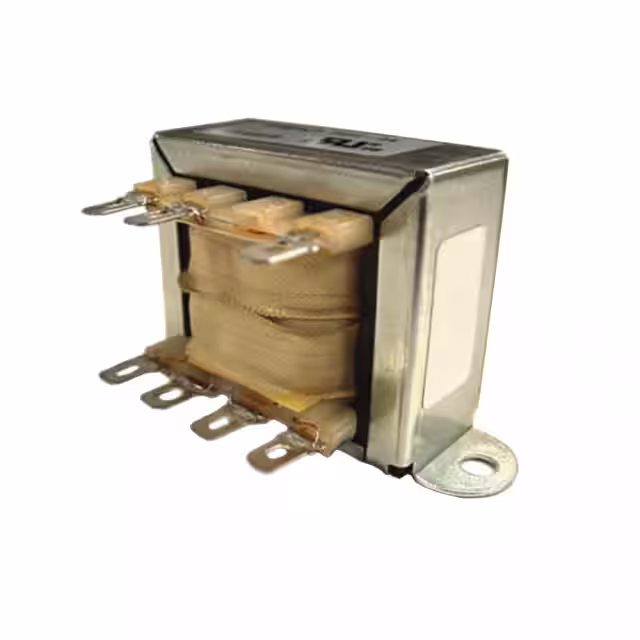

FD5-120-BPWR XFMR LAMINATED 12VA CHAS MT |
2,257 | 8.85 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V, 230V | 120V | 100mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|

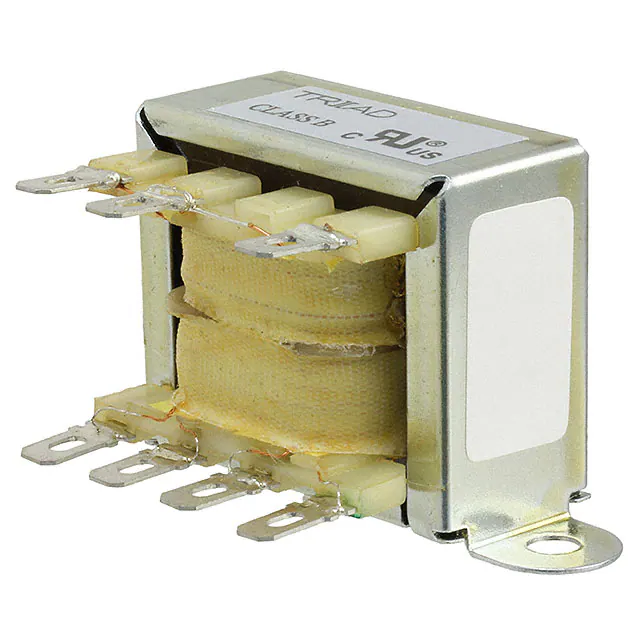

FD4-12PWR XFMR LAMINATED 6VA CHAS MT |
2,440 | 8.89 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 12.6V | 500mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC |
|
FD4-16PWR XFMR LAMINATED 6VA CHAS MT |
3,873 | 8.89 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 16V | 400mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC |
|
FD4-56PWR XFMR LAMINATED 6VA CHAS MT |
2,043 | 8.89 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 56V | 110mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC |
|

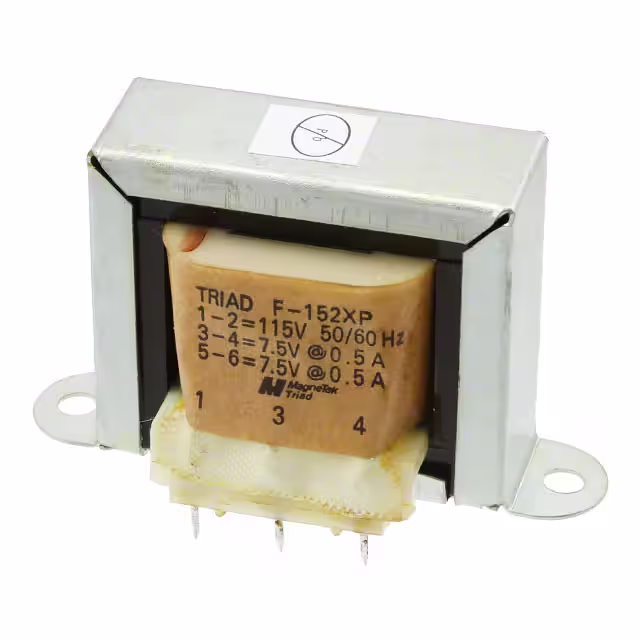

F-152XPPWR XFMR LAMINATED 7.5VA CHAS MT |
2,598 | 8.96 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 7.5V, Series 15V | Parallel 1A, Series 500mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
F-3132PPWR XFMR LAMINATED 1.5VA TH |
2,302 | 9.19 |
RFQ |
Datasheet |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 7.5V, Series 15V | Parallel 200mA, Series 100mA | Dual | Dual | No | 1.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 28.58mm | 1500Vrms |
|
VPP12-400-BPWR XFMR LAMINATED 5VA TH |
2,322 | 9.37 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 800mA, Series 400mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms |
|
|
F-167PPWR XFMR LAMINATED 1.5VA TH |
2,848 | 9.54 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 15V, Series 32V | Parallel 60mA, Series 20mA | Single | Dual | Yes | 1.5VA | Through Hole | PC Pin | 39.67mm L x 35.31mm W | 30.15mm | 1500Vrms |
|
F12-1600-C2PWR XFMR LAMINATED 20VA TH |
3,899 | 9.79 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 3.2A, Series 1.6A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F16-1250-C2PWR XFMR LAMINATED 20VA TH |
2,068 | 9.79 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 2.5A, Series 1.25A | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F28-700-C2PWR XFMR LAMINATED 20VA TH |
2,641 | 9.79 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 1.4A, Series 700mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F36-550-C2PWR XFMR LAMINATED 20VA TH |
3,004 | 9.79 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 1.1A, Series 550mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F48-400-C2PWR XFMR LAMINATED 20VA TH |
3,097 | 9.79 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 800mA, Series 400mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
|
F56-350-C2PWR XFMR LAMINATED 20VA TH |
2,473 | 9.79 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 700mA, Series 350mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
FS28-040PWR XFMR LAMINATED 1.1VA TH |
3,072 | 9.80 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 80mA, Series 40mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms |
|
|
FS36-030PWR XFMR LAMINATED 1.1VA TH |
3,943 | 9.80 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 60mA, Series 30mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms |
|
FS10-110PWR XFMR LAMINATED 1.1VA TH |
2,498 | 9.80 |
RFQ |
Datasheet |
Bulk,Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 220mA, Series 110mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms |
|
FS120-01PWR XFMR LAMINATED 1.1VA TH |
2,660 | 9.80 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 20mA, Series 10mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms |
|
|
FS48-023PWR XFMR LAMINATED 1.1VA TH |
3,809 | 9.80 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 46mA, Series 23mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms |
|
|
FS56-020PWR XFMR LAMINATED 1.1VA TH |
3,062 | 9.90 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 40mA, Series 20mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 23.80mm | 2500Vrms |
