| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F3-48PWR XFMR LAMINATED 2.4VA CHAS MT |
3,657 | 8.57 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 48V | 50mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC |
|
|
F3-56PWR XFMR LAMINATED 2.4VA CHAS MT |
3,238 | 8.57 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 56V | 20mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 41.28mm L x 30.15mm W | 30.15mm | 2500VAC |
|
F12-200PWR XFMR LAMINATED 2.5VA TH |
3,055 | 8.63 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Single | Dual | No | 2.5VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
F-90XPWR XFMR LAMINATED CHASSIS MT |
3,065 | 8.64 |
RFQ |
Datasheet |
Box | Universal | Active | Laminated Core | 115V | 10V, 20V, 40V | 100mA | Single, Multiple Taps | Single, Multiple Taps | No | Varies | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms |
|
F-150PPWR XFMR LAMINATED 1.5VA TH |
2,805 | 8.66 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 8.5V, Series 17V | Parallel 170mA, Series 85mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms |
|
|
F-131PPWR XFMR LAMINATED 1.5VA TH |
3,927 | 8.66 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 4V, Series 8V | Parallel 376mA, Series 188mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 39.67mm L x 35.31mm W | 30.15mm | 1500Vrms |
|
|
F-134PPWR XFMR LAMINATED 1.5VA TH |
3,748 | 8.66 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 27V, Series 54V | Parallel 56mA, Series 28mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 39.67mm L x 35.31mm W | 30.15mm | 1500Vrms |
|
|
F-135PPWR XFMR LAMINATED 1.5VA TH |
2,956 | 8.66 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 38V, Series 76V | Parallel 40mA, Series 20mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 39.67mm L x 35.31mm W | 30.15mm | 1500Vrms |
|
|
F-136PPWR XFMR LAMINATED 1.5VA TH |
3,539 | 8.66 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 58V, Series 116V | Parallel 26mA, Series 13mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 39.67mm L x 35.31mm W | 30.15mm | 1500Vrms |
|
F10-1200PWR XFMR LAMINATED 12VA TH |
3,130 | 8.74 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|

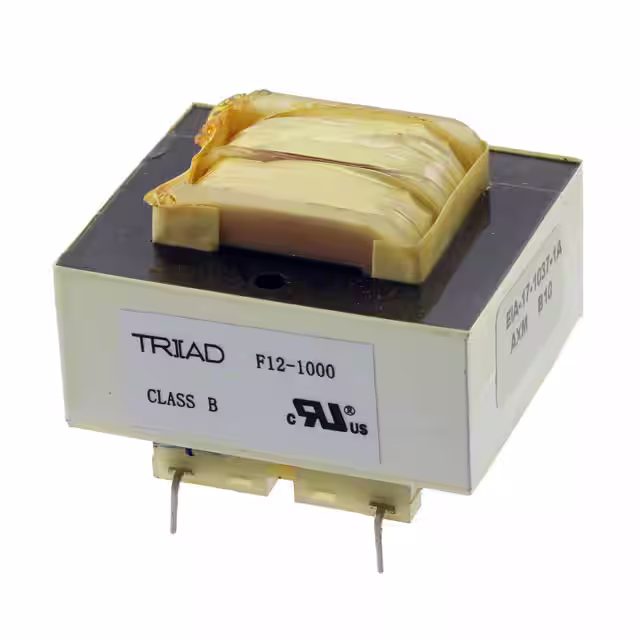

F12-1000PWR XFMR LAMINATED 12VA TH |
3,022 | 8.74 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|

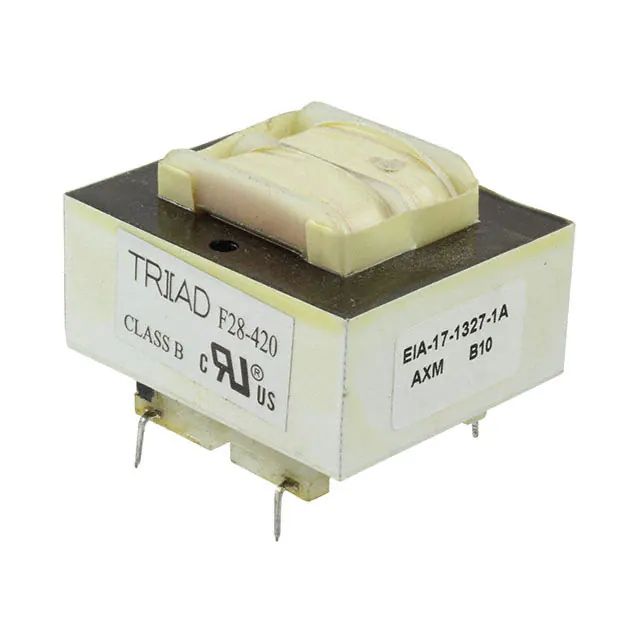

F28-420PWR XFMR LAMINATED 12VA TH |
3,723 | 8.74 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 14V, Series 28V | Parallel 840mA, Series 420mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|

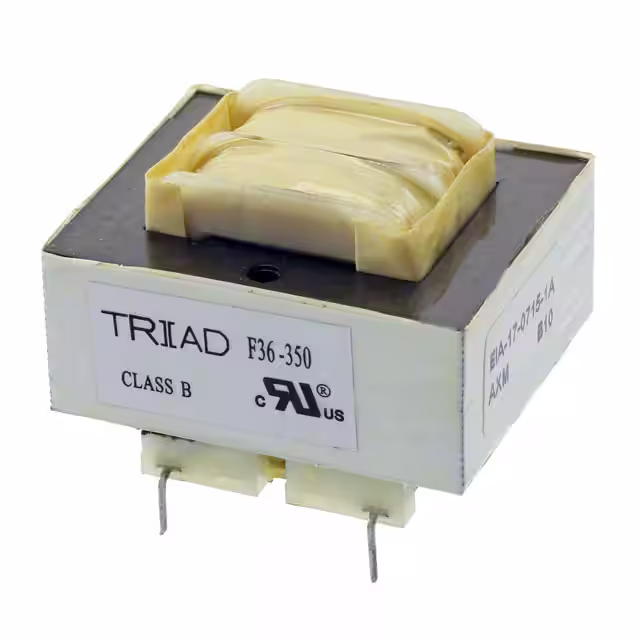

F36-350PWR XFMR LAMINATED 12VA TH |
3,548 | 8.74 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 700mA, Series 350mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|

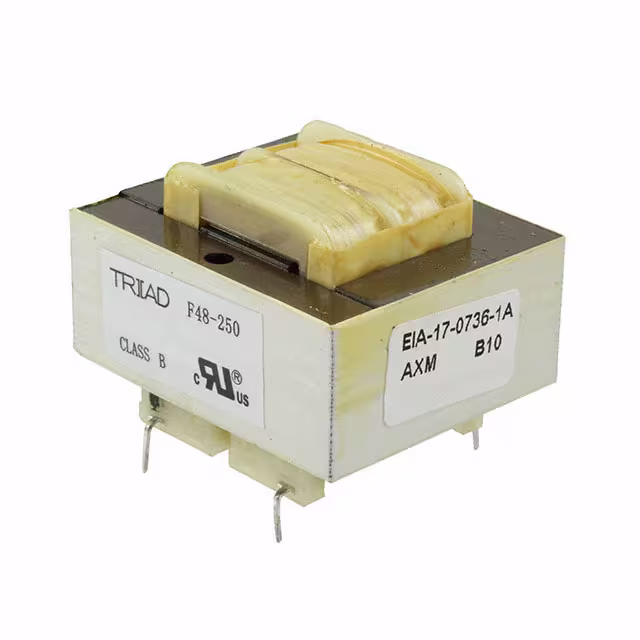

F48-250PWR XFMR LAMINATED 12VA TH |
2,570 | 8.74 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|

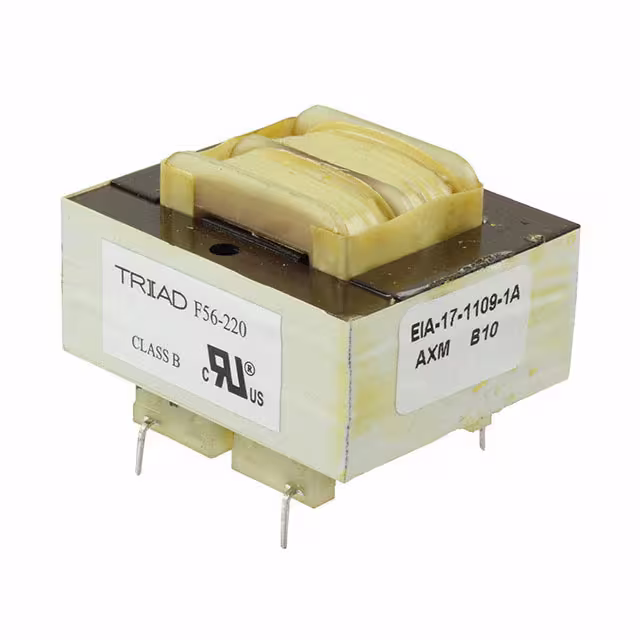

F56-220PWR XFMR LAMINATED 12VA TH |
2,208 | 8.74 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 440mA, Series 220mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
FP16-375-BPWR XFMR LAMINATED 6VA TH |
3,327 | 8.76 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 750mA, Series 375mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms |
|
|
FP20-300-BPWR XFMR LAMINATED 6VA TH |
2,014 | 8.76 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms |
|
|
FP24-250-BPWR XFMR LAMINATED 6VA TH |
2,086 | 8.76 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 500mA, Series 250mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms |
|
|
FP30-200-BPWR XFMR LAMINATED 6VA TH |
2,390 | 8.76 |
RFQ |
Datasheet |
Bulk | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 400mA, Series 200mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 22.22mm | 2000Vrms |
|

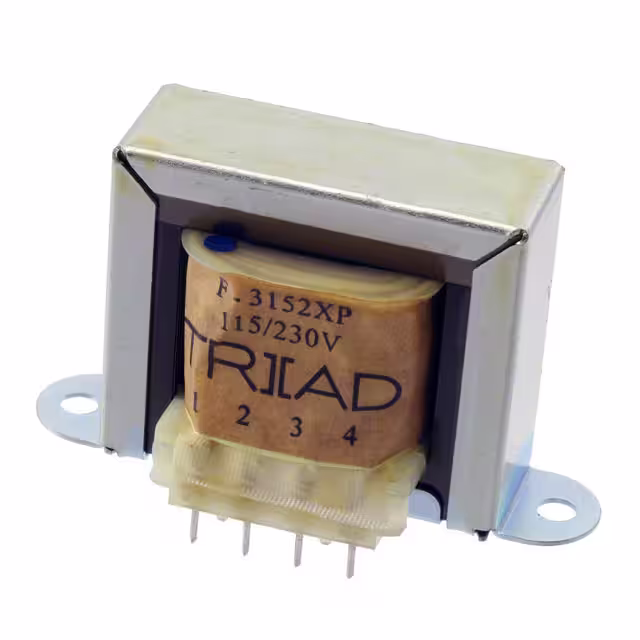

F-3152XPPWR XFMR LAMINATED 7.5VA CHAS MT |
2,939 | 8.82 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 7.5V, Series 15V | Parallel 1A, Series 500mA | Dual | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms |
