| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FS56-045-C2PWR XFMR LAMINATED 2.4VA TH |
2,349 | 3.70 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 90mA, Series 45mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 4200Vrms |
|

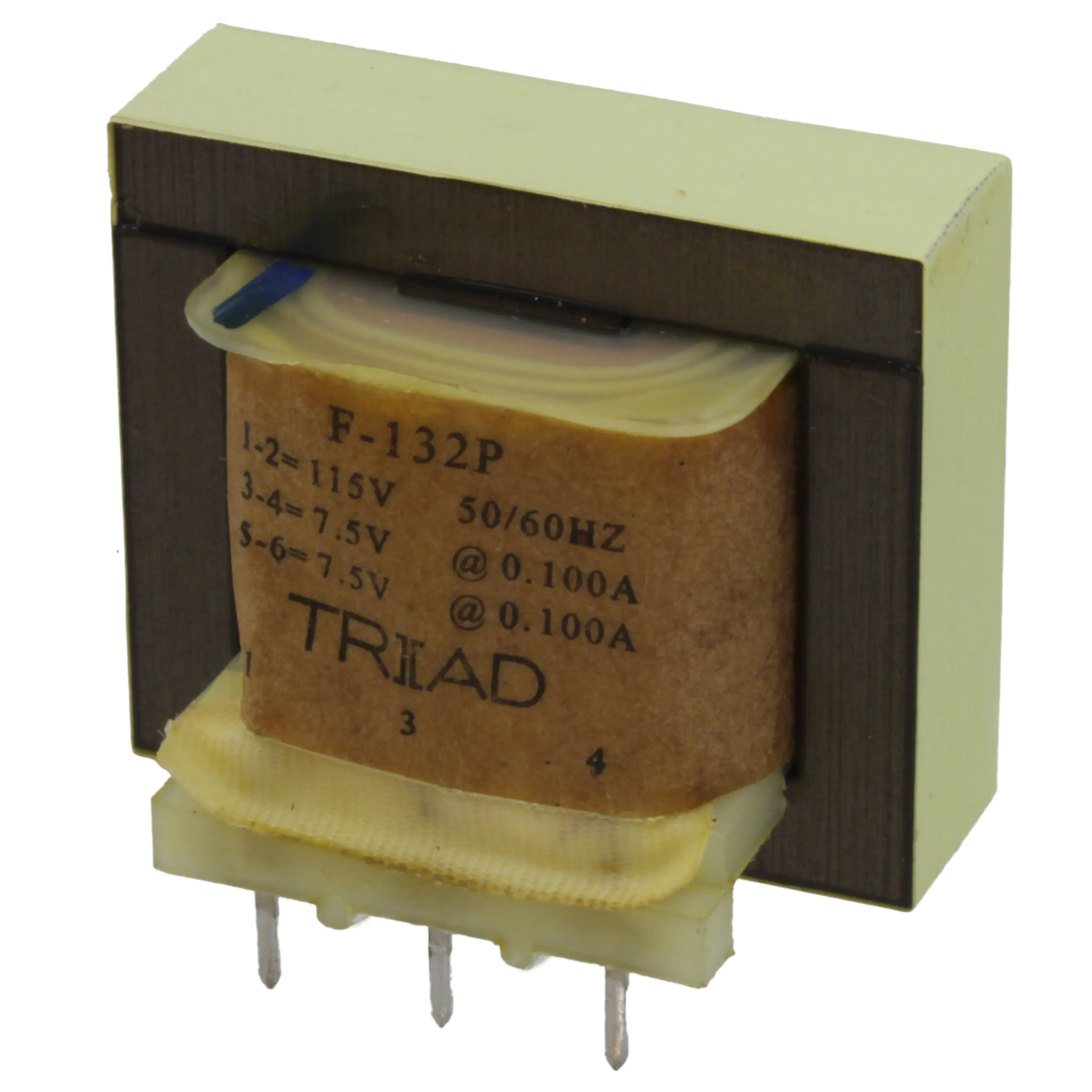

F-132PPWR XFMR LAMINATED 1.5VA TH |
2,305 | 5.39 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 7.5V, Series 15V | Parallel 200mA, Series 100mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms |
|
F-137PPWR XFMR LAMINATED 1.5VA TH |
2,606 | 5.39 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 76mA, Series 38mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms |
|

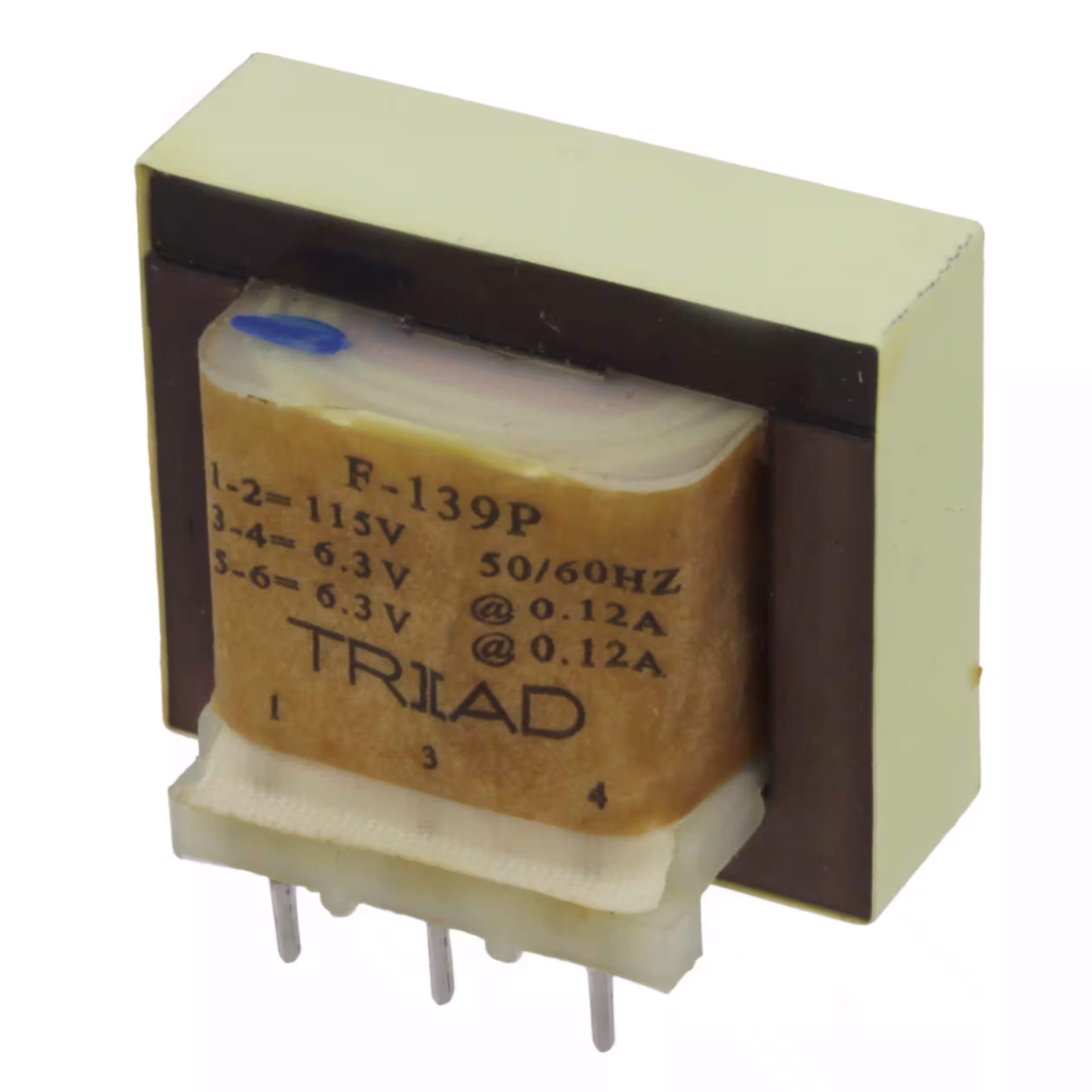

F-139PPWR XFMR LAMINATED 1.5VA TH |
3,739 | 6.01 |
RFQ |
Datasheet |
Bulk,Box | Single Primary | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 240mA, Series 120mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms |
|
F-160PPWR XFMR LAMINATED 1.5VA TH |
2,114 | 5.39 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 17V, Series 34V | Parallel 90mA, Series 45mA | Single | Dual | No | 1.5VA | Through Hole | PC Pin | 35.31mm L x 39.67mm W | 30.15mm | 1500Vrms |
|
F3-10-BPWR XFMR LAMINATED 2.4VA CHAS MT |
2,834 | 5.58 |
RFQ |
Datasheet |
Bulk | Quick Pack | Active | Laminated Core | 115V | 10V | 250mA | Single | Single | Yes | 2.4VA | Chassis Mount | Solder, Quick Connect | 52.37mm L x 44.45mm W | 30.15mm | 2500VAC |
|
VPP10-250-BPWR XFMR LAMINATED 2.5VA TH |
3,074 | 5.69 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 500mA, Series 250mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms |
|
|
VPP12-200-BPWR XFMR LAMINATED 2.5VA TH |
3,627 | 5.69 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 28.58mm | 4000Vrms |
|
F10-600-C2PWR XFMR LAMINATED 6VA TH |
2,910 | 5.73 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 1.2A, Series 600mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
F16-400-C2PWR XFMR LAMINATED 6VA TH |
3,672 | 5.73 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 800mA, Series 400mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 4200Vrms |
|
|
F20-300-C2PWR XFMR LAMINATED 6VA TH |
3,627 | 5.73 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
F36-170-C2PWR XFMR LAMINATED 6VA TH |
3,121 | 5.73 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 340mA, Series 170mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
F48-125-C2PWR XFMR LAMINATED 6VA TH |
2,723 | 5.73 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 250mA, Series 125mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
F56-110-C2PWR XFMR LAMINATED 6VA TH |
2,253 | 5.73 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 220mA, Series 110mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|
|
FS20-300-C2PWR XFMR LAMINATED 6VA TH |
3,094 | 5.93 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 600mA, Series 300mA | Dual | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 4200Vrms |
|
FS16-070PWR XFMR LAMINATED 1.1VA TH |
2,714 | 5.94 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 140mA, Series 70mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms |
|
FS12-090-BPWR XFMR LAMINATED 1.1VA TH |
2,286 | 5.94 |
RFQ |
Datasheet |
Bulk | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 180mA, Series 90mA | Dual | Dual | No | 1.1VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 23.80mm | 2500Vrms |
|
VPP10-500-BPWR XFMR LAMINATED 5VA TH |
3,290 | 6.05 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 1A, Series 500mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms |
|
|
VPP28-180-BPWR XFMR LAMINATED 5VA TH |
3,592 | 6.05 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 360mA, Series 180mA | Dual | Dual | No | 5VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 34.93mm | 4000Vrms |
|
FS28-85PWR XFMR LAMINATED 2.4VA TH |
3,857 | 6.40 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 170mA, Series 85mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.56mm W | 30.15mm | 2500Vrms |
