| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
F120-050PWR XFMR LAMINATED 6VA TH |
2,383 | 10.82 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 100mA, Series 50mA | Single | Dual | No | 6VA | Through Hole | PC Pin | 41.28mm L x 33.32mm W | 33.32mm | 2500Vrms |
|

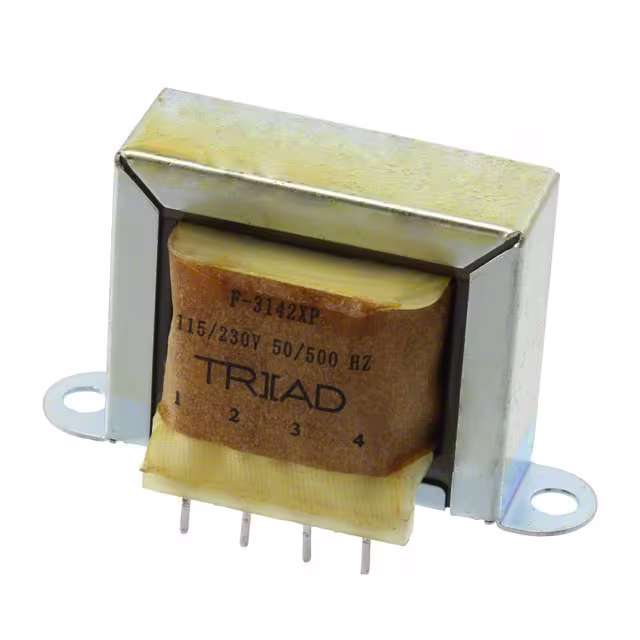

F-3142XPPWR XFMR LAMINATED 4.5VA CHAS MT |
2,439 | 11.69 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 7.5V, Series 15V | Parallel 600mA, Series 300mA | Dual | Dual | No | 4.5VA | Chassis Mount | PC Pin | 60.32mm L x 31.75mm W | 36.50mm | 1500Vrms |
|

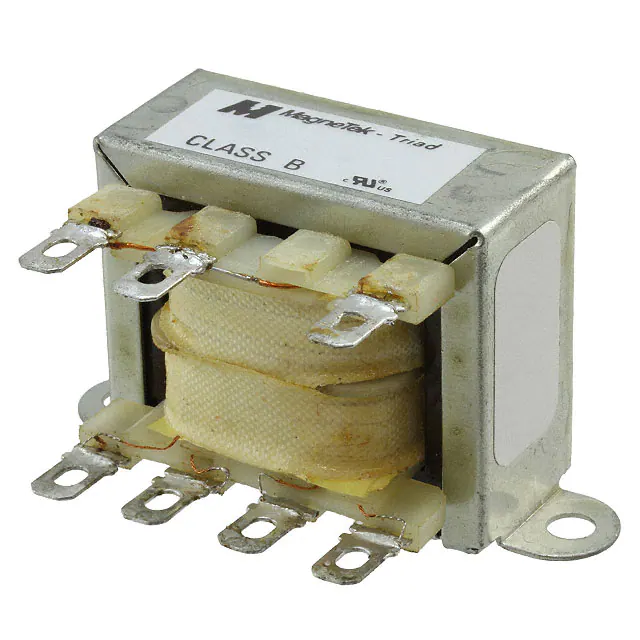

FD4-10PWR XFMR LAMINATED 6VA CHAS MT |
3,061 | 11.73 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 10V | 600mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 65.07mm L x 31.75mm W | 34.93mm | 2500VAC |
|

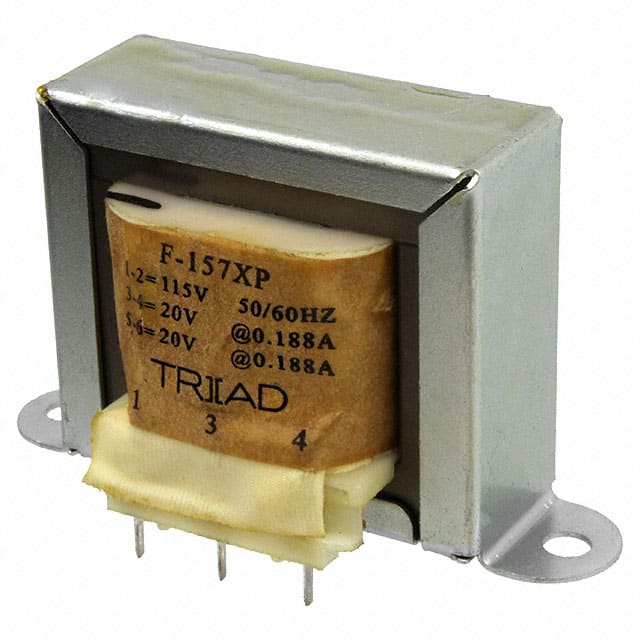

F-157XPPWR XFMR LAMINATED 7.5VA CHAS MT |
2,570 | 11.82 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V | Parallel 20V, Series 40V | Parallel 376mA, Series 188mA | Single | Dual | No | 7.5VA | Chassis Mount | PC Pin | 71.42mm L x 37.29mm W | 41.28mm | 1500Vrms |
|
|
F120-100PWR XFMR LAMINATED 12VA TH |
2,920 | 11.95 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 60V, Series 120V | Parallel 200mA, Series 100mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
F-115XPWR XFMR LAMINATED 2.04VA CHAS |
3,506 | 11.91 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 24V | 85mA | Single | Single | Yes | 2.04VA | Chassis Mount | Wire Leads | 52.37mm L x 34.93mm W | 30.15mm | 1500Vrms |
|

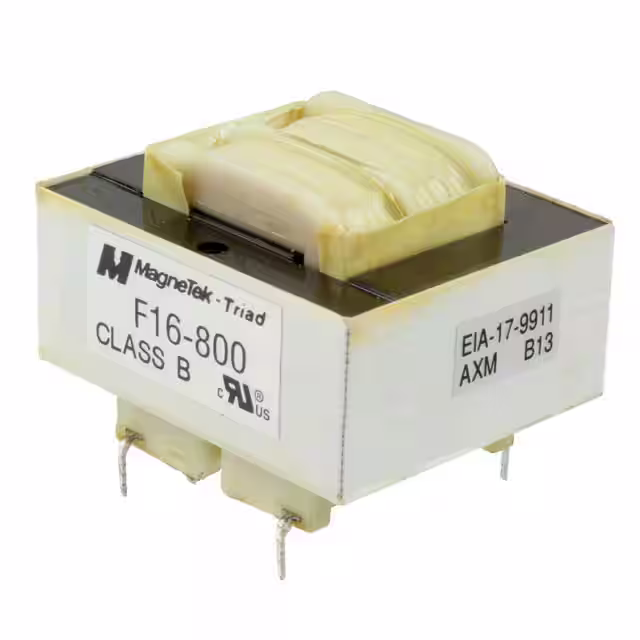

F16-800PWR XFMR LAMINATED 12VA TH |
2,030 | 11.95 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 1.6A, Series 800mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
FS10-1200PWR XFMR LAMINATED 12VA TH |
2,419 | 12.89 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|

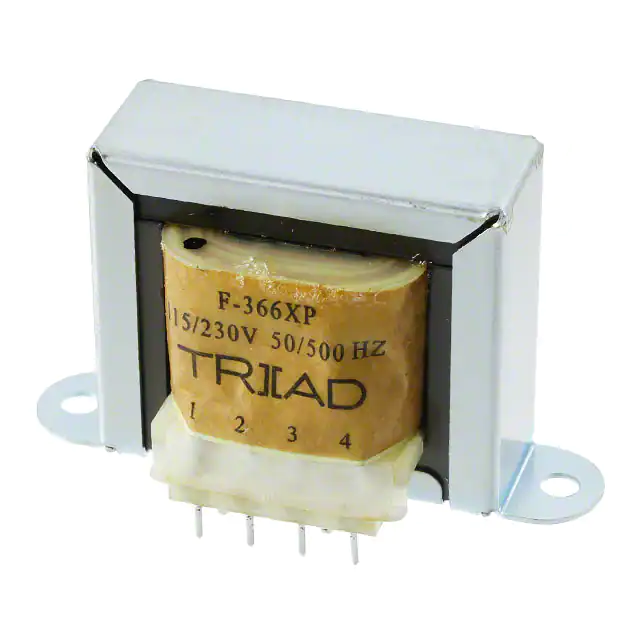

F-366XPPWR XFMR LAMINATED 10VA CHAS MT |
3,607 | 13.27 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.28A, Series 640mA | Dual | Dual | No | 10VA | Chassis Mount | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms |
|
|
F48-400PWR XFMR LAMINATED 20VA TH |
3,863 | 14.58 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 24V, Series 48V | Parallel 800mA, Series 400mA | Single | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 2500Vrms |
|
FS48-400-C2PWR XFMR LAMINATED 20VA TH |
2,868 | 16.67 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 800mA, Series 400mA | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms |
|
FP56-200PWR XFMR LAMINATED 12VA TH |
2,990 | 16.54 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 400mA, Series 200mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|
|
FS20-1000-C2PWR XFMR LAMINATED 20VA TH |
2,238 | 16.67 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2A, Series 1A | Dual | Dual | No | 20VA | Through Hole | PC Pin | 57.15mm L x 47.63mm W | 36.50mm | 4200Vrms |
|

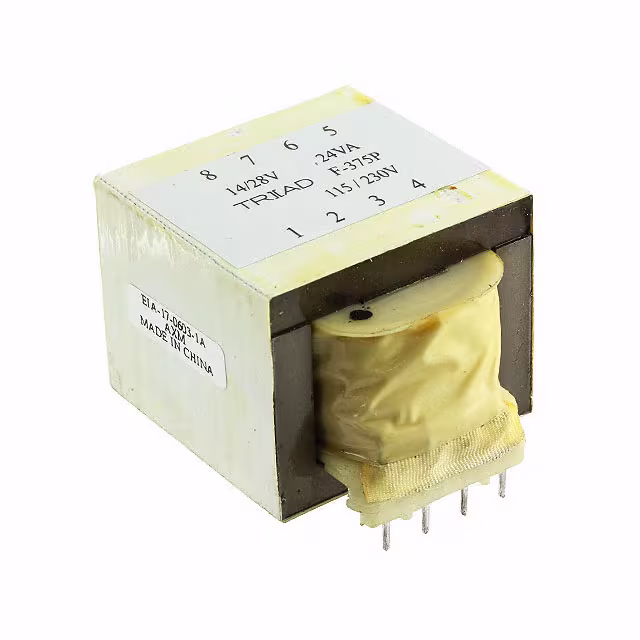

F-375PPWR XFMR LAMINATED 24VA TH |
3,405 | 16.73 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms |
|
F16-2250PWR XFMR LAMINATED 36VA TH |
2,351 | 18.11 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.80mm L x 55.55mm W | 39.62mm | 2500Vrms |
|
F36-1000-C2PWR XFMR LAMINATED 36VA TH |
3,926 | 18.90 |
RFQ |
Datasheet |
Bulk | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 18V, Series 36V | Parallel 2A, Series 1A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.70mm | 2500Vrms |
|
F20-1800-C2PWR XFMR LAMINATED 36VA TH |
2,739 | 18.90 |
RFQ |
Datasheet |
Tray | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|

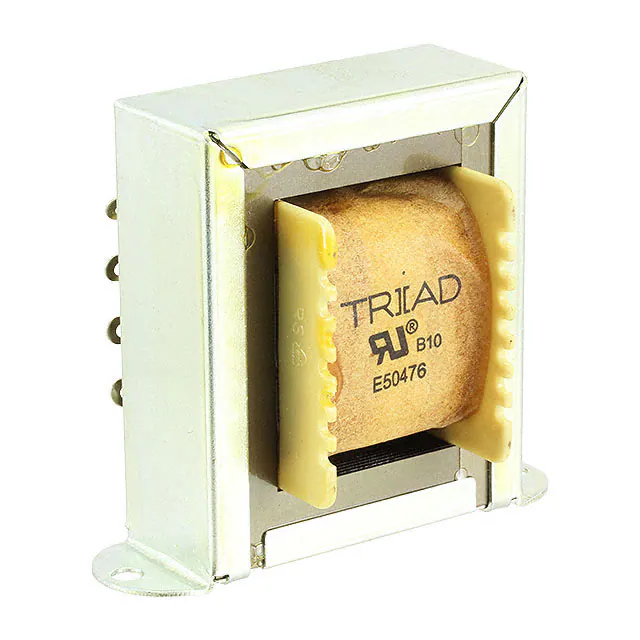

F-212ZPWR XFMR LAMINATED 24VA CHAS MT |
2,918 | 19.11 |
RFQ |
Datasheet |
Box | Multiple Secondary | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 1A, Series 500mA | Single | Dual | No | 24VA | Chassis Mount | Solder Lug | 79.38mm L x 50.80mm W | 69.85mm | 1500Vrms |
|
F-105ZPWR XFMR LAMINATED 12VA CHAS MT |
2,481 | 19.92 |
RFQ |
Datasheet |
Box | Control Transformers | Active | Laminated Core | 115V, 230V | Parallel 6V, Series 12V | Parallel 2A, Series 1A | Dual | Dual | No | 12VA | Chassis Mount | Solder Lug | 73.02mm L x 44.45mm W | 60.32mm | 1500Vrms |
|

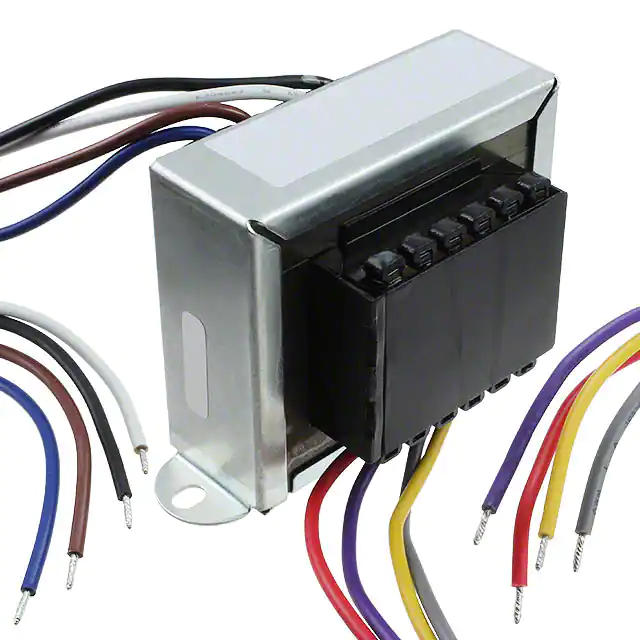

VPL36-1400PWR XFMR LAMINATED 50.0VA CHAS |
3,081 | 21.70 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 36V | 1.389A | Dual | Dual | No | 50.0VA | Chassis Mount | Wire Leads | 57.15mm L x 101.6mm W | 65.09mm | 3500Vrms |
