| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

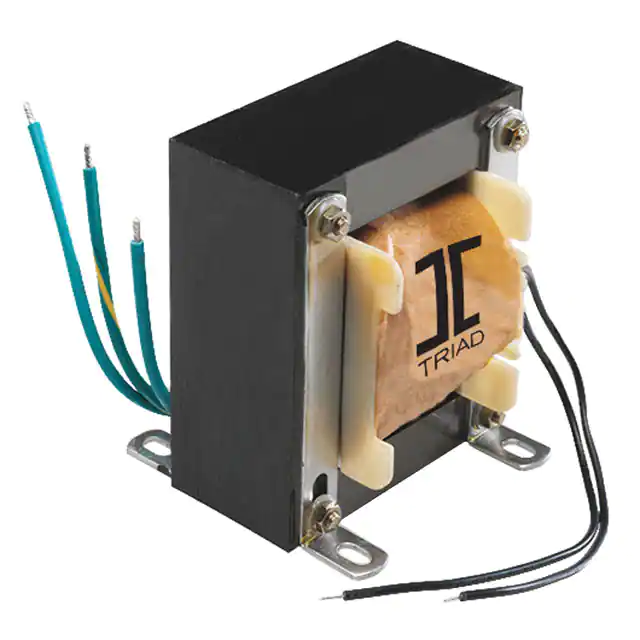

F-275UPWR XFMR LAMINATED 400VA CHAS MT |
2,455 | 131.38 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 40V | 10A | Single | Single | Yes | 400VA | Chassis Mount | Wire Leads | 111.13mm L x 114.30mm W | 136.53mm | 1500Vrms |
|
F-282UPWR XFMR LAMINATED 360VA CHAS MT |
3,888 | 131.38 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 60V | 6A | Single | Single | Yes | 360VA | Chassis Mount | Wire Leads | 111.13mm L x 104.78mm W | 133.35mm | 1500Vrms |
|
VPM100-5000PWR XFMR TORO 500VA CHAS MT |
2,312 | 153.96 |
RFQ |
Datasheet |
Box | Toroidal Medical, VPM | Active | Toroidal | 100V, 120V, 220V, 240V | Parallel 50V, Series 100V | Parallel 10A, Series 5A | Dual, Multiple Taps | Dual | No | 500VA | Chassis Mount | Wire Leads | 147.00mm Dia | 64.00mm | 4000Vrms |
|
VPT230-10870PWR XFMR TORO 2500VA CHAS MT |
2,216 | 317.45 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 21.74A, Series 10.87A | Dual | Dual | No | 2500VA | Chassis Mount | Wire Leads | 208.00mm Dia x 112.00mm W | 120.0mm | 4000Vrms |
|
|
VPM240-28100PWR XFMR TORO 6750VA CHAS MT |
3,434 | 773.22 |
RFQ |
Datasheet |
Bulk | Toroidal Medical, VPM | Active | Toroidal | 208V, 240V | Parallel 120V, Series 240V | Parallel 56.2A, Series 28.1A | Dual, Multiple Taps | Dual | No | 6750VA | Chassis Mount | Wire Leads | 310.00mm Dia | 140.00mm | 4000Vrms |
|
|
VPM240-36400PWR XFMR TORO 8750VA CHAS MT |
3,361 | 838.40 |
RFQ |
Datasheet |
Bulk | Toroidal Medical, VPM | Active | Toroidal | 208V, 240V | Parallel 120V, Series 240V | Parallel 72.8A, Series 36.4A | Dual, Multiple Taps | Dual | No | 8750VA | Chassis Mount | Wire Leads | 335.00mm Dia | 140.00mm | 4000Vrms |
|
|
VPM240-41600PWR XFMR TORO 10000VA CHAS MT |
2,969 | 1049.02 |
RFQ |
Datasheet |
Bulk | Toroidal Medical, VPM | Active | Toroidal | 208V, 240V | Parallel 120V, Series 240V | Parallel 83.2A, Series 41.6A | Dual, Multiple Taps | Dual | No | 10000VA | Chassis Mount | Wire Leads | 416.00mm Dia | 140.00mm | 4000Vrms |
|
|
F-1000UPWR XFMR LAMINATED CHAS MT |
3,508 | 0.00 |
RFQ |
Datasheet |
Box | - | Obsolete | Laminated Core | 115V, 230V | 24V | 21A | Dual | Single | Yes | - | Chassis Mount | Wire Leads | 111.13mm L x 88.90mm W | 133.35mm | 1500Vrms |
