| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

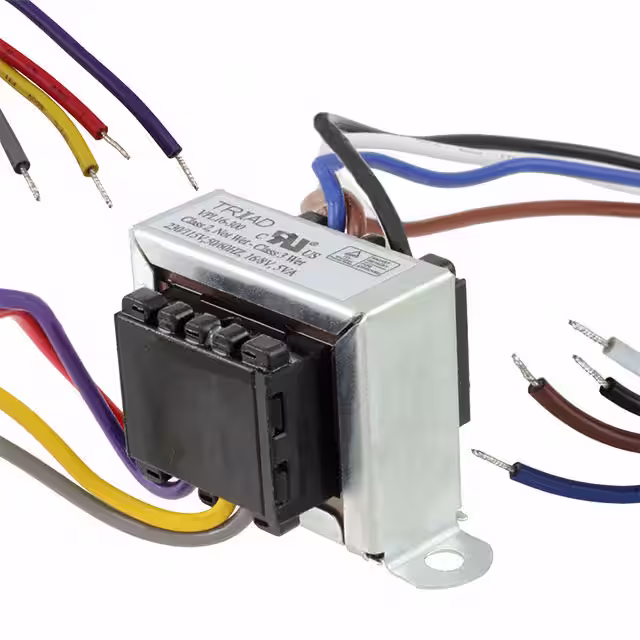

VPL16-300PWR XFMR LAMINATED 5.0VA CHAS MT |
3,873 | 11.90 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 16V | 310mA | Dual | Dual | No | 5.0VA | Chassis Mount | Wire Leads | 36.52mm L x 60.33mm W | 36.52mm | 3500Vrms |
|

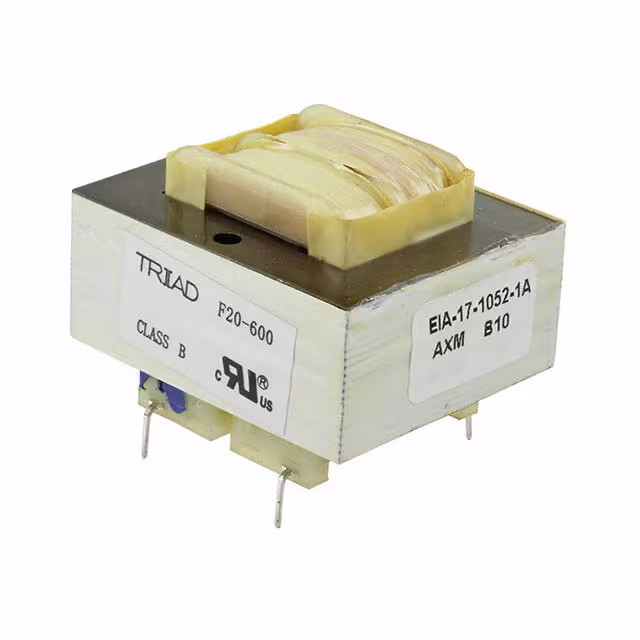

F20-600PWR XFMR LAMINATED 12VA TH |
3,732 | 11.95 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 1.2A, Series 600mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
F-3153XPPWR XFMR LAMINATED 7.5VA TH |
2,201 | 11.95 |
RFQ |
Datasheet |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 500mA, Series 250mA | Dual | Dual | No | 7.5VA | Through Hole | PC Pin | 71.42mm L x 36.50mm W | 41.28mm | 1500Vrms |
|

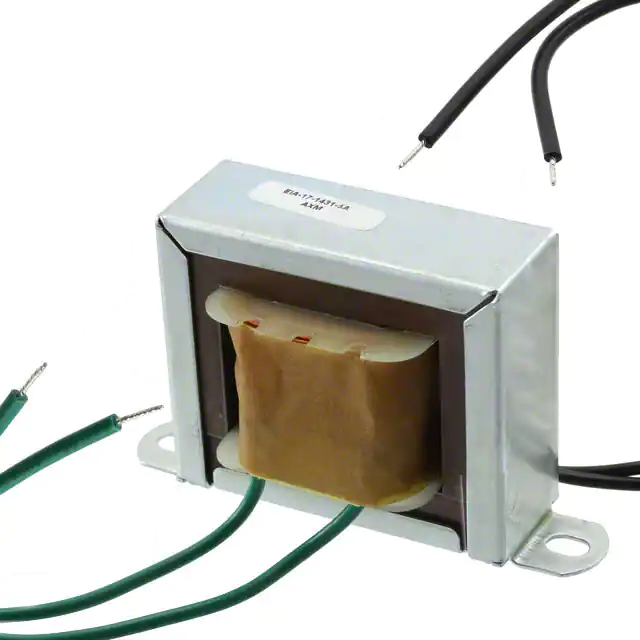

F-217XPWR XFMR LAMINATED 14.4VA CHAS |
2,316 | 12.01 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12V | 1.2A | Single | Single | No | 14.4VA | Chassis Mount | Wire Leads | 82.55mm L x 41.28mm W | 50.80mm | 1500Vrms |
|

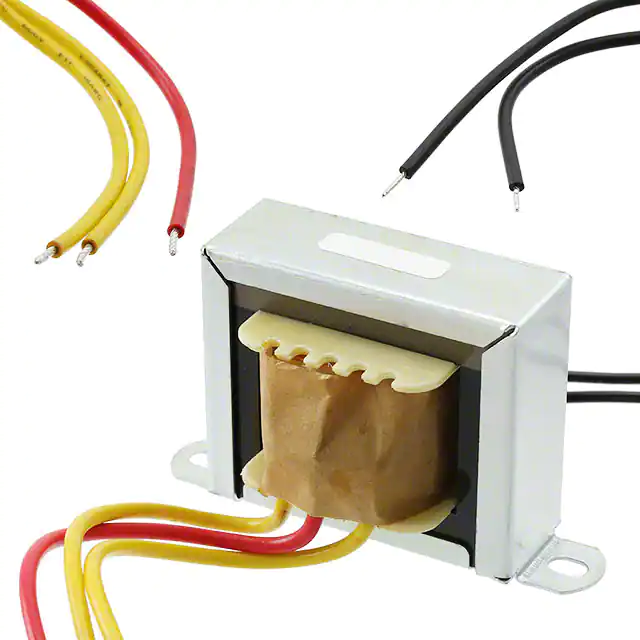

F-6XPWR XFMR LAMINATED 15VA CHAS MT |
3,429 | 12.01 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 2.5V | 6A | Single | Single | Yes | 15VA | Chassis Mount | Wire Leads | 84.12mm L x 44.45mm W | 49.20mm | 2500Vrms |
|

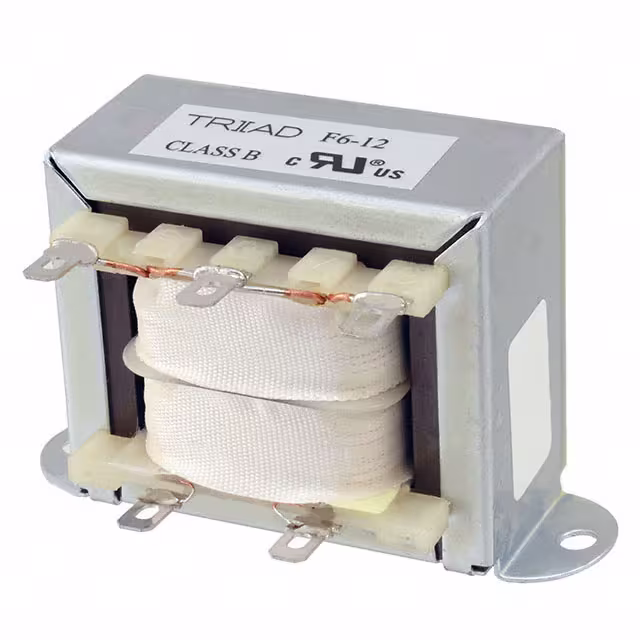

F6-12PWR XFMR LAMINATED 30VA CHAS MT |
3,411 | 12.16 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 12.6V | 2.5A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
VPS12-2000-BPWR XFMR LAMINATED 25VA CHAS MT |
3,871 | 12.40 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms |
|
|
VPS16-1600-BPWR XFMR LAMINATED 25VA CHAS MT |
2,439 | 12.40 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 33.27mm W | 58.67mm | 4000Vrms |
|
|
VPS24-1000-BPWR XFMR LAMINATED 25VA CHAS MT |
2,582 | 12.40 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 58.67mm | 4000Vrms |
|
|
VPS36-700-BPWR XFMR LAMINATED 25VA CHAS MT |
3,595 | 12.40 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 25VA | Chassis Mount | Solder, Quick Connect | 50.80mm L x 49.28mm W | 71.37mm | 4000Vrms |
|
FP10-1200PWR XFMR LAMINATED 12VA TH |
2,227 | 12.48 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 63.50mm L x 50.80mm W | 26.97mm | 2000Vrms |
|

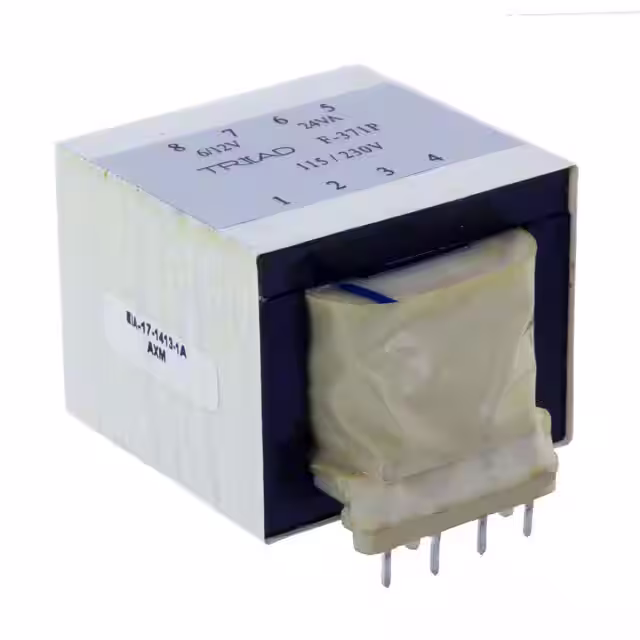

F-371PPWR XFMR LAMINATED 24VA TH |
3,328 | 12.62 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4A, Series 2A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms |
|
F-379PPWR XFMR LAMINATED 24VA TH |
3,377 | 12.62 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 400mA, Series 200mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms |
|

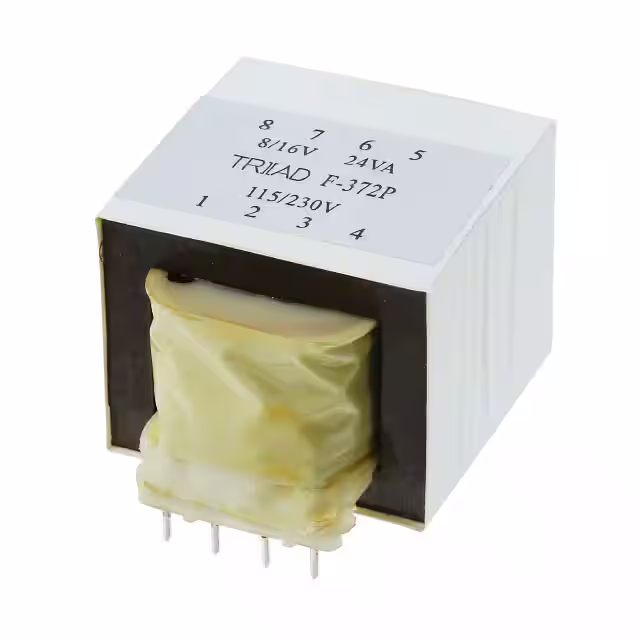

F-372PPWR XFMR LAMINATED 24VA TH |
2,898 | 12.62 |
RFQ |
Datasheet |
Box | Single Primary | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 41.28mm L x 57.15mm W | 34.93mm | 1500Vrms |
|
FS12-1000-BPWR XFMR LAMINATED 12VA TH |
2,387 | 12.76 |
RFQ |
Datasheet |
Bulk | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 2A, Series 1A | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
FS120-100PWR XFMR LAMINATED 12VA TH |
3,038 | 12.76 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 200mA, Series 100mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
|
FS48-250PWR XFMR LAMINATED 12VA TH |
2,031 | 12.76 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 24V, Series 48V | Parallel 500mA, Series 250mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
|
FS56-220PWR XFMR LAMINATED 12VA TH |
3,041 | 12.76 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 440mA, Series 220mA | Dual | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 36.50mm | 2500Vrms |
|
F-228XPWR XFMR LAMINATED 10.5VA CHAS |
2,438 | 12.87 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 35V | 300mA | Single | Single | Yes | 10.5VA | Chassis Mount | Wire Leads | 71.42mm L x 41.28mm W | 41.28mm | 1500Vrms |
|
VPP16-1900-BPWR XFMR LAMINATED 30VA TH |
2,943 | 12.92 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 3.8A, Series 1.9A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
