| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

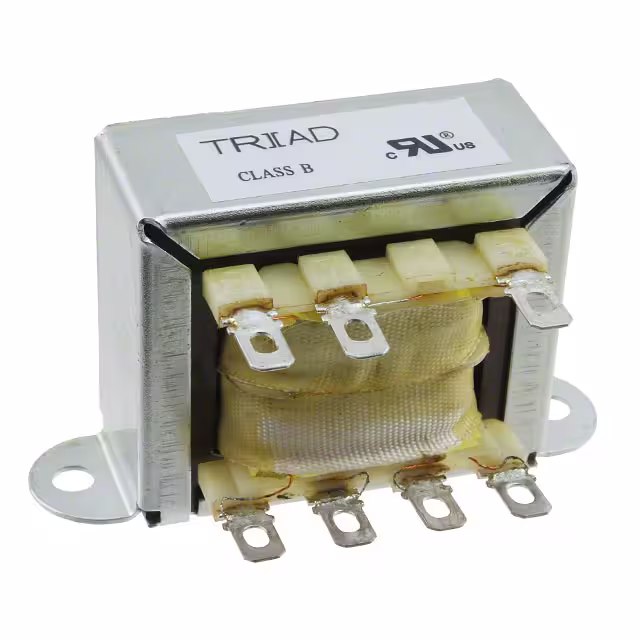

FD5-36PWR XFMR LAMINATED 12VA CHAS MT |
2,285 | 13.42 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 36V | 350mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
FD5-48PWR XFMR LAMINATED 12VA CHAS MT |
3,191 | 13.42 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 48V | 250mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
|
FD5-56PWR XFMR LAMINATED 12VA CHAS MT |
3,102 | 13.42 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 56V | 220mA | Dual | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 71.42mm L x 34.93mm W | 41.28mm | 2500VAC |
|
TCT40-02E07AB-BPWR XFMR LAMINATED 40VA CHAS MT |
3,417 | 13.51 |
RFQ |
Datasheet |
Bulk | Class 2, TCT | Active | Laminated Core | 240V | 24V | 1.67A | Single | Single | No | 40VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
F10-3600PWR XFMR LAMINATED 36VA TH |
3,773 | 13.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 7.2A, Series 3.6A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
F12-2850PWR XFMR LAMINATED 36VA TH |
2,212 | 13.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
F20-1800PWR XFMR LAMINATED 36VA TH |
3,743 | 13.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 3.6A, Series 1.8A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
F24-1500PWR XFMR LAMINATED 36VA TH |
2,080 | 13.66 |
RFQ |
Datasheet |
Box | Split Pack™, Class 2/3, F | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 3A, Series 1.5A | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
|
F56-650PWR XFMR LAMINATED 36VA TH |
3,170 | 13.66 |
RFQ |
Datasheet |
Box | Split Pack™ | Active | Laminated Core | 115V | Parallel 28 V, Series 56V | Parallel 1.3A, Series 650mA | Single | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 2500Vrms |
|
VPP10-3000-BPWR XFMR LAMINATED 30VA TH |
3,247 | 14.02 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 6A, Series 3A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
|
|
VPP12-2400-BPWR XFMR LAMINATED 30VA TH |
2,989 | 14.02 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
|
|
VPP28-1060-BPWR XFMR LAMINATED 30VA TH |
2,922 | 9.90 |
RFQ |
Datasheet |
Bulk,Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 2.12A, Series 1.06A | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
|
|
VPP36-820-BPWR XFMR LAMINATED 30VA TH |
3,207 | 14.02 |
RFQ |
Datasheet |
Bulk | PC Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 1.64A, Series 820mA | Dual | Dual | No | 30VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4000Vrms |
|
VPL10-1000PWR XFMR LAMINATED 10.0VA CHAS |
2,308 | 14.10 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 10V | 1A | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms |
|

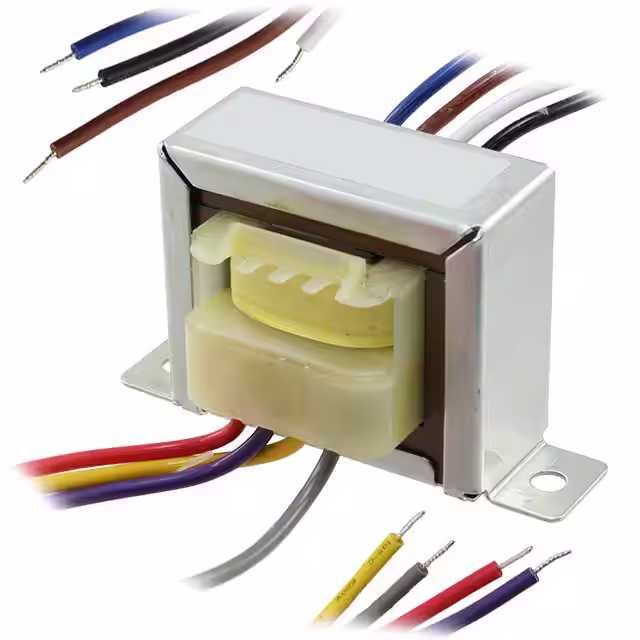

VPL28-350PWR XFMR LAMINATED 10.0VA CHAS |
2,144 | 14.10 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 28V | 350mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms |
|
VPL36-300PWR XFMR LAMINATED 10.0VA CHAS |
3,760 | 14.24 |
RFQ |
Datasheet |
Box | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | 36V | 280mA | Dual | Dual | No | 10.0VA | Chassis Mount | Wire Leads | 36.52mm L x 71.44mm W | 44.45mm | 3500Vrms |
|

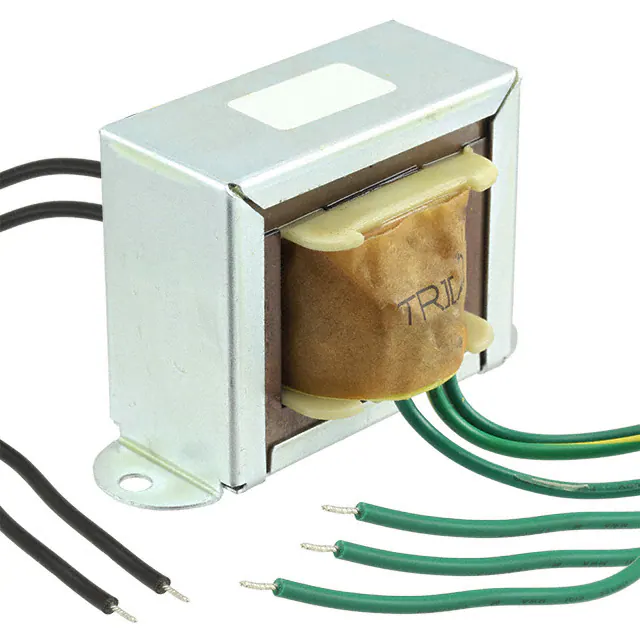

F-250XPWR XFMR LAMINATED 14VA CHAS MT |
3,485 | 14.30 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 14V | 1A | Single | Single | Yes | 14VA | Chassis Mount | Wire Leads | 82.55mm L x 44.45mm W | 49.20mm | 1500Vrms |
|
FS10-3600-C2PWR XFMR LAMINATED 36VA TH |
3,434 | 14.59 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 7.2A, Series 3.6A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms |
|
|
FS12-2850-C2PWR XFMR LAMINATED 36VA TH |
3,739 | 14.59 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 5.7A, Series 2.85A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms |
|
|
FS16-2250-C2PWR XFMR LAMINATED 36VA TH |
2,391 | 14.59 |
RFQ |
Datasheet |
Tube | Split Pack™, Class 2/3, FS | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 4.5A, Series 2.25A | Dual | Dual | No | 36VA | Through Hole | PC Pin | 66.68mm L x 55.55mm W | 39.67mm | 4200Vrms |
