| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

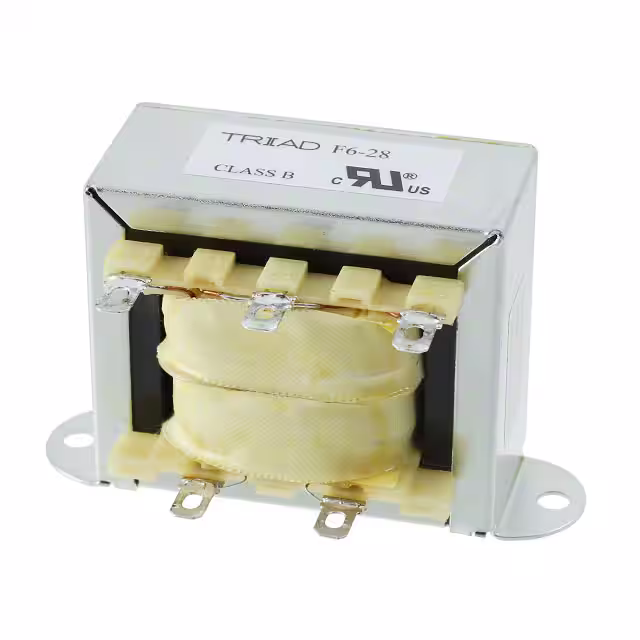

F6-28PWR XFMR LAMINATED 30VA CHAS MT |
2,705 | 16.46 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 28V | 1.1A | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
F6-36PWR XFMR LAMINATED 30VA CHAS MT |
2,604 | 16.46 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 36V | 850mA | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|

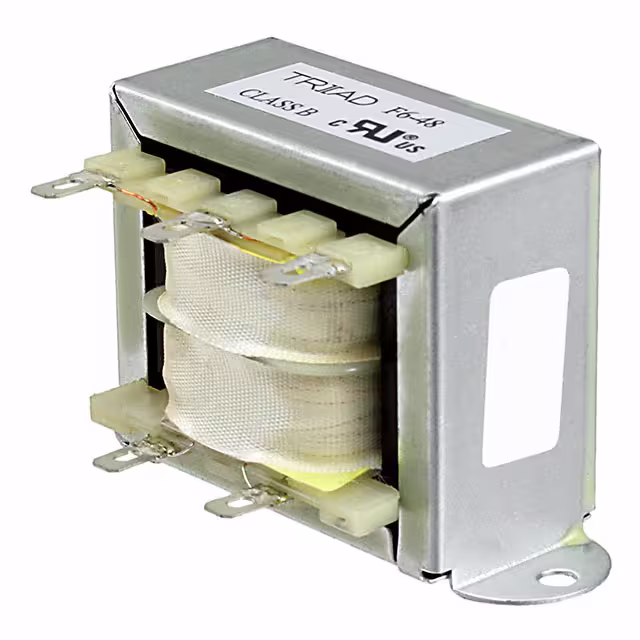

F6-48PWR XFMR LAMINATED 30VA CHAS MT |
2,905 | 16.46 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 48V | 630mA | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|

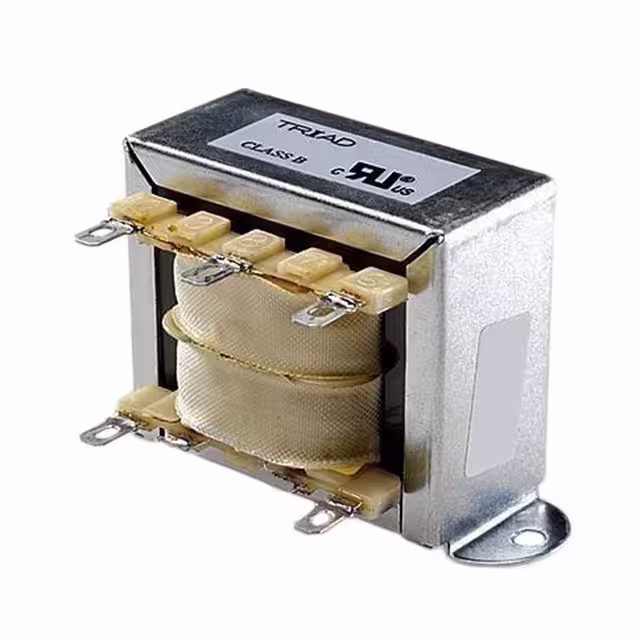

F6-56PWR XFMR LAMINATED 30VA CHAS MT |
2,713 | 16.46 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 56V | 450mA | Single | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect | 82.55mm L x 71.42mm W | 49.20mm | 2500Vrms |
|

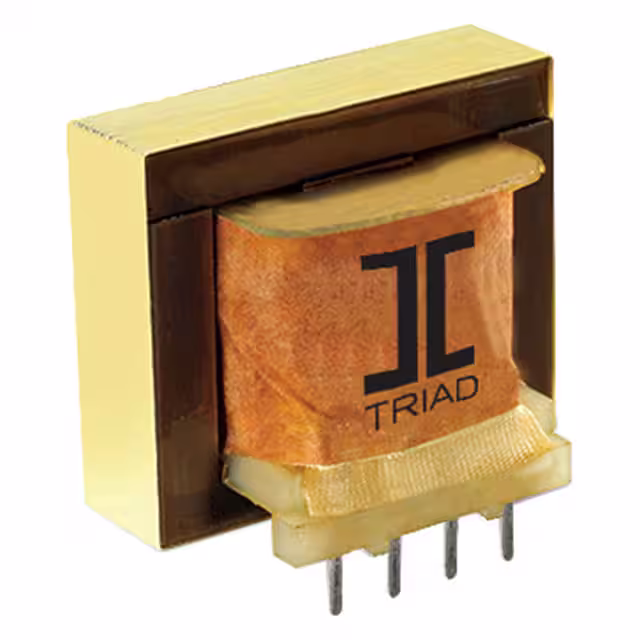

F-370PPWR XFMR LAMINATED 24VA TH |
2,850 | 16.57 |
RFQ |
Datasheet |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 41.28mm W | 34.93mm | 1500Vrms |
|
|
F-374PPWR XFMR LAMINATED 24VA TH |
2,110 | 16.57 |
RFQ |
Datasheet |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 41.28mm W | 34.93mm | 1500Vrms |
|
|
F-376PPWR XFMR LAMINATED 24VA TH |
2,000 | 16.57 |
RFQ |
Datasheet |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 41.28mm W | 34.93mm | 1500Vrms |
|
|
F-377PPWR XFMR LAMINATED 24VA TH |
3,671 | 16.57 |
RFQ |
Datasheet |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 41.28mm W | 34.93mm | 1500Vrms |
|
|
F-378PPWR XFMR LAMINATED 24VA TH |
2,355 | 16.57 |
RFQ |
Datasheet |
Box | Dual Primary | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 840mA, Series 420mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 57.15mm L x 41.28mm W | 34.93mm | 1500Vrms |
|
VPS20-2200-BPWR XFMR LAMINATED 43VA CHAS MT |
3,680 | 16.58 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.4A, Series 2.2A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 74.68mm L x 50.80mm W | 74.68mm | 4000Vrms |
|
|
VPS24-1800-BPWR XFMR LAMINATED 43VA CHAS MT |
2,081 | 16.58 |
RFQ |
Datasheet |
Bulk | Chassis Mount: World Series™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 43VA | Chassis Mount | Solder, Quick Connect | 58.67mm L x 50.80mm W | 68.33mm | 4000Vrms |
|
FD7-16PWR XFMR LAMINATED 56VA CHAS MT |
2,850 | 16.67 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 16V | 3.5A | Dual | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
F-3118XPWR XFMR LAMINATED 16.8VA CHAS |
2,914 | 16.97 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 24V | 700mA | Dual | Single | Yes | 16.8VA | Chassis Mount | Wire Leads | 82.55mm L x 50.80mm W | 50.80mm | 1500Vrms |
|
|
F-340XPWR XFMR LAMINATED 26.8VA CHAS |
2,677 | 16.97 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 26.8V | 1A | Dual | Single | Yes | 26.8VA | Chassis Mount | Wire Leads | 84.12mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
|
F-357XPWR XFMR LAMINATED 25.2VA CHAS |
2,644 | 16.97 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 25.2V | 1A | Dual | Single | Yes | 25.2VA | Chassis Mount | Wire Leads | 89.56mm L x 50.80mm W | 49.20mm | 1500Vrms |
|
F-106ZPWR XFMR LAMINATED 24VA CHAS MT |
2,111 | 17.13 |
RFQ |
Datasheet |
Box | Control Transformers | Active | Laminated Core | 115V, 230V | Parallel 6V, Series 12V | Parallel 4A, Series 2A | Dual | Dual | No | 24VA | Chassis Mount | Solder Lug | 79.38mm L x 50.80mm W | 69.85mm | 1500Vrms |
|
TCT50-01E07K-BPWR XFMR LAMINATED 50VA CHAS MT |
2,028 | 17.43 |
RFQ |
Datasheet |
Bulk | Class 2, TCT | Active | Laminated Core | 120V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-02E07K-BPWR XFMR LAMINATED 50VA CHAS MT |
3,523 | 17.43 |
RFQ |
Datasheet |
Bulk | Class 2, TCT | Active | Laminated Core | 240V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-05E07K-BPWR XFMR LAMINATED 50VA CHAS MT |
3,532 | 17.43 |
RFQ |
Datasheet |
Bulk | Class 2, TCT | Active | Laminated Core | 120V, 208V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-06E07K-BPWR XFMR LAMINATED 50VA CHAS MT |
3,090 | 17.43 |
RFQ |
Datasheet |
Bulk | Class 2, TCT | Active | Laminated Core | 120V, 240V | 24V | 2.08A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Wire Leads | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
