| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FD6-10PWR XFMR LAMINATED 30VA CHAS MT |
2,386 | 18.02 |
RFQ |
Datasheet |
Bulk,Box | Quick Pack | Active | Laminated Core | 115V, 230V | 10V | 3A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
|
FD6-12PWR XFMR LAMINATED 30VA CHAS MT |
3,455 | 18.02 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 12.6V | 2.5A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
|
FD6-20PWR XFMR LAMINATED 30VA CHAS MT |
2,929 | 18.02 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 20V | 1.5A | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
|
FD6-36PWR XFMR LAMINATED 30VA CHAS MT |
100 | 18.02 |
RFQ |
Datasheet |
Bulk,Box | Quick Pack | Active | Laminated Core | 115V, 230V | 36V | 850mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
|
FD6-48PWR XFMR LAMINATED 30VA CHAS MT |
2,281 | 18.02 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 48V | 630mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
|
FD6-56PWR XFMR LAMINATED 30VA CHAS MT |
2,619 | 18.02 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V, 230V | 56V | 540mA | Dual | Single | Yes | 30VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 82.55mm L x 42.85mm W | 49.20mm | 2500VAC |
|
F7-10PWR XFMR LAMINATED 56VA CHAS MT |
2,250 | 18.26 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 10V | 5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
F7-12PWR XFMR LAMINATED 56VA CHAS MT |
3,396 | 18.26 |
RFQ |
Datasheet |
Bulk,Box | Quick Pack | Active | Laminated Core | 115V | 12.6V | 4A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
F7-120PWR XFMR LAMINATED 56VA CHAS MT |
2,228 | 18.26 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 120V | 500mA | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
|
F7-28PWR XFMR LAMINATED 56VA CHAS MT |
2,952 | 18.26 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 28V | 2A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
F7-36PWR XFMR LAMINATED 56VA CHAS MT |
2,075 | 18.26 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 36V | 1.5A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|

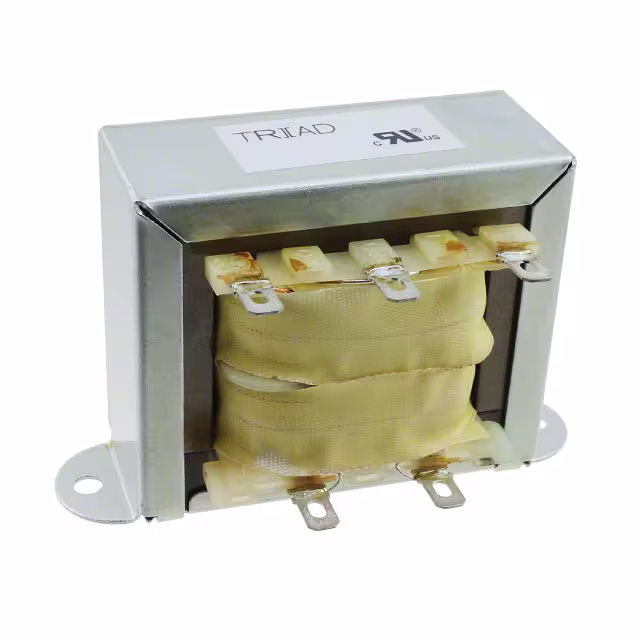

F7-48PWR XFMR LAMINATED 56VA CHAS MT |
3,520 | 18.26 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 48V | 1.2A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
F7-56PWR XFMR LAMINATED 56VA CHAS MT |
3,375 | 18.26 |
RFQ |
Datasheet |
Box | Quick Pack | Active | Laminated Core | 115V | 56V | 1A | Single | Single | Yes | 56VA | Chassis Mount | Solder, Quick Connect - 0.187 (4.7mm) | 93.65mm L x 46.02mm W | 57.15mm | 2500VAC |
|
F-326XPWR XFMR LAMINATED 31.5VA CHAS |
2,313 | 18.38 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V, 230V | 12.6V | 2.5A | Dual | Single | Yes | 31.5VA | Chassis Mount | Wire Leads | 93.65mm L x 50.80mm W | 57.94mm | 1500Vrms |
|
TCT50-07E07ABPWR XFMR LAMINATED 50VA CHAS MT |
2,264 | 18.68 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V, 208V, 240V | 12V | 4.17A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.00mm | 1500Vrms |
|
TCT50-01E07AEPWR XFMR LAMINATED 50VA CHAS MT |
3,001 | 18.68 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-02E07ABPWR XFMR LAMINATED 50VA CHAS MT |
2,210 | 18.68 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 240V | 24V | 2.08A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-03E07ABPWR XFMR LAMINATED 50VA CHAS MT |
2,048 | 18.68 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 120V | 12V | 4.17A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-10E07ABPWR XFMR LAMINATED 50VA CHAS MT |
3,608 | 18.68 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 208V, 240V | 12V | 4.17A | Single, Multiple Taps | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
|
|
TCT50-04E07ABPWR XFMR LAMINATED 50VA CHAS MT |
3,899 | 18.68 |
RFQ |
Datasheet |
Box | Class 2, TCT | Active | Laminated Core | 240V | 12V | 4.17A | Single | Single | No | 50VA | Chassis Mount | Solder, Quick Connect | 92.46mm L x 56.67mm W | 57.40mm | 1500Vrms |
