| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FP12-1900PWR XFMR LAMINATED 24VA TH |
2,803 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3.8A, Series 1.9A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
|
|
FP16-1500PWR XFMR LAMINATED 24VA TH |
2,698 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 3A, Series 1.5A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
|
|
FP20-1200PWR XFMR LAMINATED 24VA TH |
3,080 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
|
|
FP24-1000PWR XFMR LAMINATED 24VA TH |
3,305 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 2A, Series 1A | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
|
|
FP30-800PWR XFMR LAMINATED 24VA TH |
3,284 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.6A, Series 800mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
|
|
FP34-700PWR XFMR LAMINATED 24VA TH |
2,506 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
|
|
FP40-600PWR XFMR LAMINATED 24VA TH |
2,677 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
|
|
FP56-425PWR XFMR LAMINATED 24VA TH |
3,867 | 20.37 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 850mA, Series 425mA | Dual | Dual | No | 24VA | Through Hole | PC Pin | 72.90mm L x 57.15mm W | 34.93mm | 2000Vrms |
|
|
FP10-4800PWR XFMR LAMINATED 48VA TH |
2,697 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 10V | Parallel 9.6A, Series 4.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
|
FP12-3800PWR XFMR LAMINATED 48VA TH |
2,718 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 7.6A, Series 3.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
|
FP16-3000PWR XFMR LAMINATED 48VA TH |
3,498 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 6A, Series 3A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
|
FP20-2400PWR XFMR LAMINATED 48VA TH |
3,338 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 10V, Series 20V | Parallel 4.8A, Series 2.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
|
FP24-2000PWR XFMR LAMINATED 48VA TH |
2,195 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 4A, Series 2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
|
FP30-1600PWR XFMR LAMINATED 48VA TH |
2,961 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 15V, Series 30V | Parallel 3.2A, Series 1.6A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
|
FP34-1400PWR XFMR LAMINATED 48VA TH |
2,221 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 17V, Series 34V | Parallel 2.8A, Series 1.4A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
|
FP40-1200PWR XFMR LAMINATED 48VA TH |
2,221 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 20V, Series 40V | Parallel 1.2A, Series 1.2A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
|
FP56-850PWR XFMR LAMINATED 48VA TH |
2,440 | 20.57 |
RFQ |
Datasheet |
Box | Flat Pack™ | Active | Laminated Core | 115V, 230V | Parallel 28V, Series 56V | Parallel 1.7A, Series 850mA | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.25mm L x 63.50mm W | 34.93mm | 2000Vrms |
|
F-189XPWR XFMR LAMINATED 17.5VA CHAS |
3,541 | 20.81 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 35V | 300mA | Single | Single | Yes | 17.5VA | Chassis Mount | Wire Leads | 93.65mm L x 49.20mm W | 58.72mm | 1500Vrms |
|
|
F-254XPWR XFMR LAMINATED 20VA CHAS MT |
2,382 | 20.81 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 20V | 1A | Single | Single | Yes | 20VA | Chassis Mount | Wire Leads | 93.65mm L x 49.20mm W | 57.15mm | 1500Vrms |
|

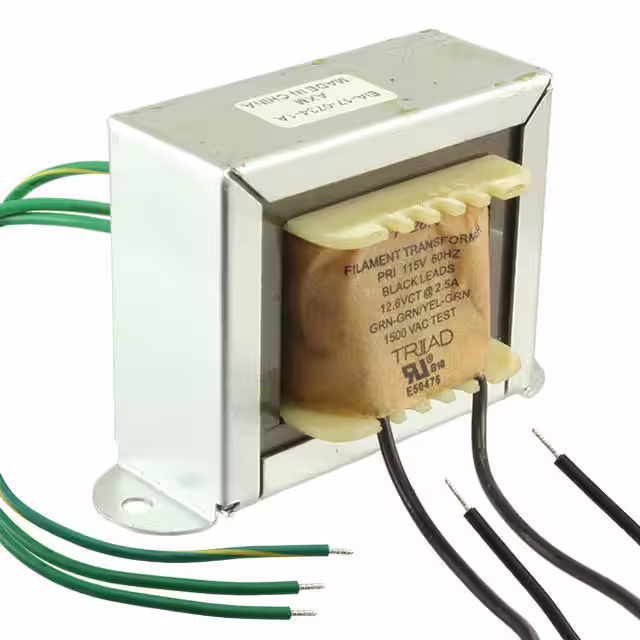

F-26XPWR XFMR LAMINATED 31.5VA CHAS |
3,286 | 20.81 |
RFQ |
Datasheet |
Box | Single Secondary | Active | Laminated Core | 115V | 12.6V | 2.5A | Single | Single | Yes | 31.5VA | Chassis Mount | Wire Leads | 93.65mm L x 50.80mm W | 57.94mm | 1500Vrms |
